SEGUE VK-1850 Setup Instructions

Sunrise table top

Advertisement

Quick Links

Order #XXXXX - VK-1850 - Segue Sunrise Table Top
Item
Description
1
44" Vertical Extrusion
2
44" Vertical Extrusion
3a/3b
31.5" Horizontal Extrusion
4a/4b
31.5" Horizontal Extrusion
Corner
Tighten knob
to secure
SEG Graphic: To Ensure Proper Fit
Corner A
Corner B
Corner D
Corner C
Step 1
It is important to first insert graphic
Insert corner A.
into each alternater corner then to
Turn edge of graphic so silicon welt
the sides of the frame.
is perpendicular to face of graphic.
If this is not done, graphic will not fit
Insert narrow side of welt with fabric
into the frame correctly.
to outside into the channel.
Repeat for other side of this corner.
w w w . c l a s s i c e x h i b i t s . c o m

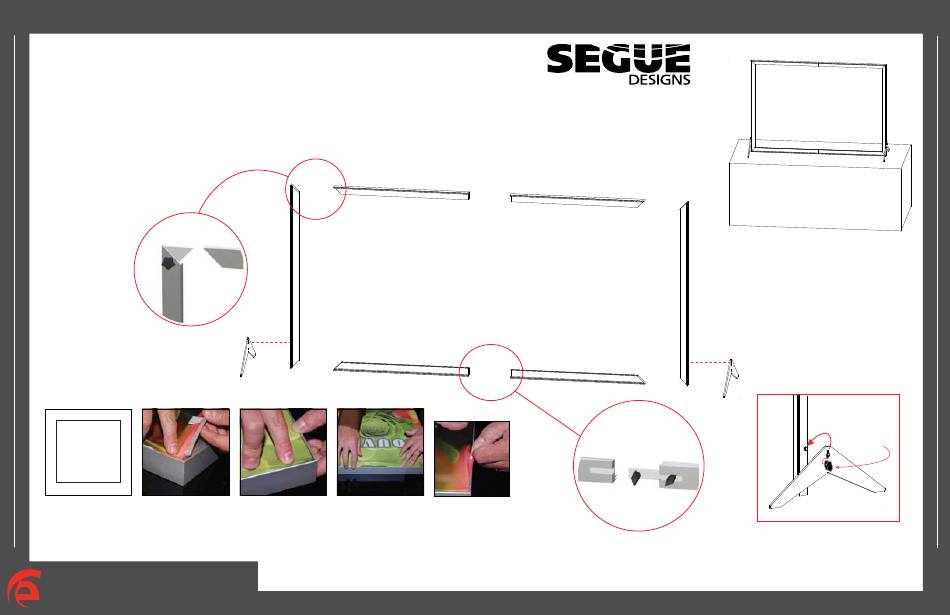

Steps:
1) Connect horizontals [3a,3b] and [4a,4b] as shown.
2) Connect verticals [4,2] with horizontal assemblies as shown.
3) Attach boomerang feet as shown.
4a
1
3a
Step 2
Step 3
Repeat Step 1 for opposite corner
Once all corners are inserted, press
C, then insert corner B, followed by
one silicon edge into channel from
corner corner D, to complete the
corners and work toward the center.
installation of the corners.
Make sure welt is fully inserted into
channel. Continue until all sides are
done. Smooth out edges of graphic.
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
4b
3b

Graphic Removal

Slide connecting
verticals/horizontals
and tighten knob
To remove the graphic from
the frame, locate the fabric
pull tab.
Gently pull up on the tab to
remove the fabric.
2

Boomerang Foot Attachment

Center
bar between
to secure
866.652.2100
Hook keyhole to bolt
Tighten knob
to secure
© 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK-1850 and is the answer not in the manual?

Questions and answers

Summary of Contents for SEGUE VK-1850

  • Page 1 Order #XXXXX - VK-1850 - Segue Sunrise Table Top 866.652.2100 Item Description Steps: 44” Vertical Extrusion 1) Connect horizontals [3a,3b] and [4a,4b] as shown. 44” Vertical Extrusion 2) Connect verticals [4,2] with horizontal assemblies as shown. 3a/3b 31.5” Horizontal Extrusion 3) Attach boomerang feet as shown.
  • Page 2 Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
  • Page 3 Order #XXXXX - Case Packing Instructions 866.652.2100 Top View 3a 3b 4a 4b Halogen Lights Graphics (2) Connectors Level 1 Level 2 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2013 w w w . c l a s s i c e x h i b i t s . c o m...
