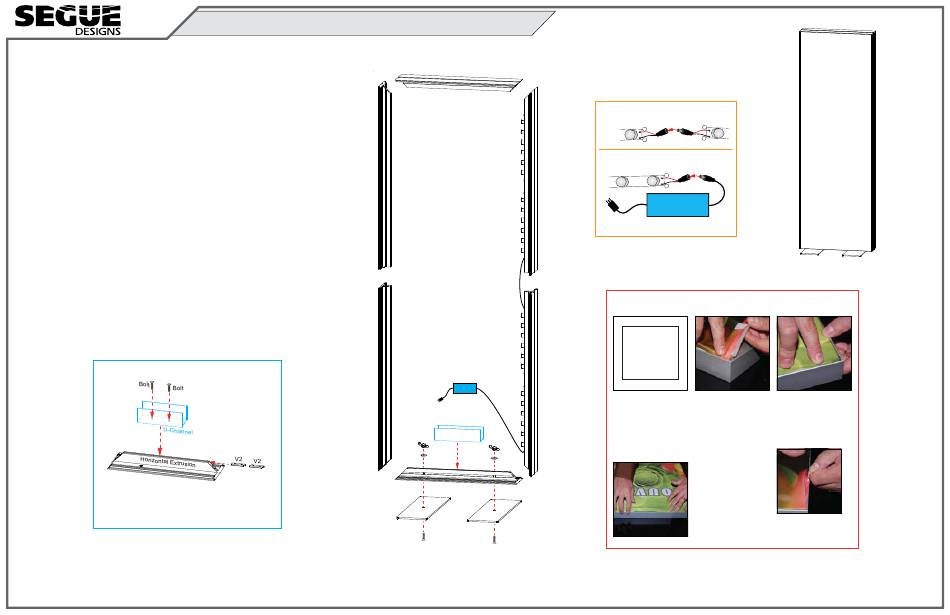

SEGUE MOD-1601 Manual

© 2021
Order #XXXXX
Item Qty. Description
1,1A 1,1 36" CEI152 Vertical Extrusion
2,2A 1,1 36" CEI152 Vertical Extrusion
3,3A 1,1 24" CEI152 Horizontal Extrusion
4,4A 2 Base Plate
-- 1 9" U-Channel
Steps:
1) Attach u-channel to horizontal [3].
See U-Channel Connection detail.
2) Assemble CEI152 extrusions together, flat on floor.
See CEI152 Frame Assembly sheet for instruction.
3) Attach base plates to [3], using bolts, washers, and
wing nuts then lift assembled frame upright.
4) Connect lighting cords and attach transformers then
set transformers into u-channels. See Light to Light
Connection & Light to Transformer Connection
5) Install SEG graphics to front and back of assembled frame.
*
U-Channel Attachment
Slide V2 connectors into top groove of horizontal
extrusion. Tighten set-screws to secure. Attach
U-Channel to connectors, using bolts.
Note: V2 connectors stay attached when packing.
MOD-1601 Double-Sided Lightbox
1A
details.
1
3A
Light to Light Connection
Lights
Light to Transformer Connection
2A
to power
Maximum of 7 lights per transformer.
SEG Graphic Installation
Corner A
Transformer
Corner D
2
It is important to first insert
graphic into each alternate
corner, then to the sides of
the frame. If this is not done,
U-Channel
graphic will not fit into the
frame correctly.
*
3
4
4A
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
Female Male
+
+
-
-
Female Male
+
-
Transformer
96W / 4A / 24V
Completed Assembly
Corner B
Corner C
Step 1 Step 2
Insert corner A. Turn edge of Repeat Step 1 for opposite
graphic so silicon welt is corner C, then insert corner
perpendicular to face of B, followed by corner D, to
graphic. Insert narrow side complete the installation of
of welt with fabric to outside the corners.
into the channel. Repeat for
other side of this corner.
