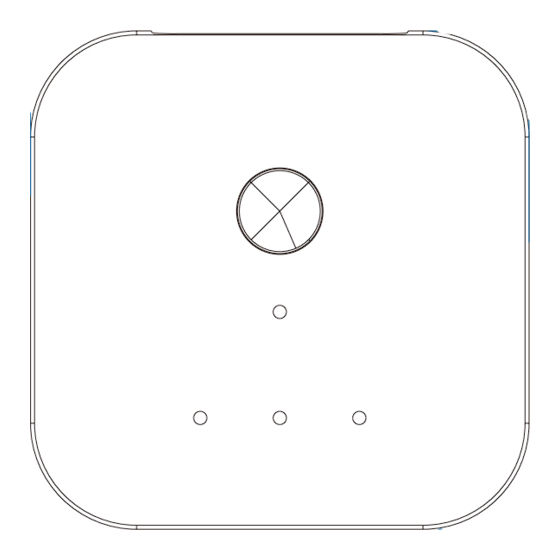

ZigBee Smart Hub
Important: Read All Instructions Prior to Installation
Function Introduction
The Zigbee Smart Hub is the brain of a Zigbee ecosystem. It can be connected with an Ethernet network, and supports
interaction and connection with Zigbee accessories through Azoula Smart app via ZigBee 3.0 wireless protocol.
LAN indicator
Zigbee Network
Manual Open Button
Power Adapter lnterface
Reset Button
Reboot Button
Product Data
Radio protocol
Operation Frequency
Power Supply
Operating temperature
Relative humidity
Dimensions
Product Features
Power indicator
• This ZigBee smart hub works with: Zigbee light devices, sensors, heaters, plugs, remotes, GP switches etc.
• Free APP is available for IOS or Android smart phones or tablets.
WAN indicator
• Supports group, scene, and automation.
• Supports up to 150 zigbee devices.
Running indicator
• Cloud control enabled, supports voice control through Amazon Alexa and Google Assistant.
• Supports firmware OTA update for the smart hub and Zigbee devices
• Waterproof grade: IP20.
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Download and Install App
Download "Azoula Smart" app from App Store or Google Play or scan the QR codes below. Follow the direction in the
app to connect your devices properly.
LAN Cable lnterface
Connect the Smart Hub to power
Connect the power adapter to the Smart Hub and plug it to mains socket.
ZigBee 3.0
2.4GHz
5VDC/2A
-20°C~50°C
8% to 80%
94x94x29.5mm
iOS QR Code
Android QR Code
Advertisement
Table of Contents
Related Manuals for Sunricher SR-GW-ZG
Summary of Contents for Sunricher SR-GW-ZG
- Page 1 Product Data ZigBee Smart Hub Radio protocol ZigBee 3.0 Operation Frequency 2.4GHz Important: Read All Instructions Prior to Installation Power Supply 5VDC/2A Function Introduction Operating temperature -20°C~50°C The Zigbee Smart Hub is the brain of a Zigbee ecosystem. It can be connected with an Ethernet network, and supports Relative humidity 8% to 80% interaction and connection with Zigbee accessories through Azoula Smart app via ZigBee 3.0 wireless protocol.
- Page 2 Connect the Smart Hub to network Add & Control Zigbee Devices Connect Smart Hub's LAN port to a router with network cable. Make sure the cell phone for control connects to the same Follow the direction in the “Azoula Smart” app to connect your gateway, then add and control Zigbee devices. network.
