Sunricher SR-ZGP2801K2-DIM Instruction Manual

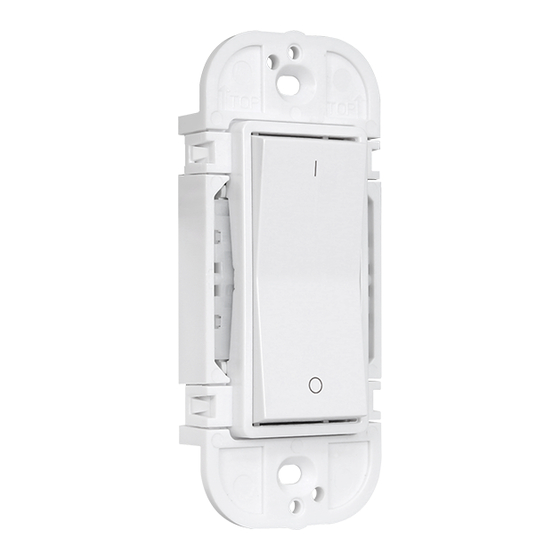

DIM Zigbee Green Power Switch
Important: Read All Instructions Prior to Installation
Function introduction

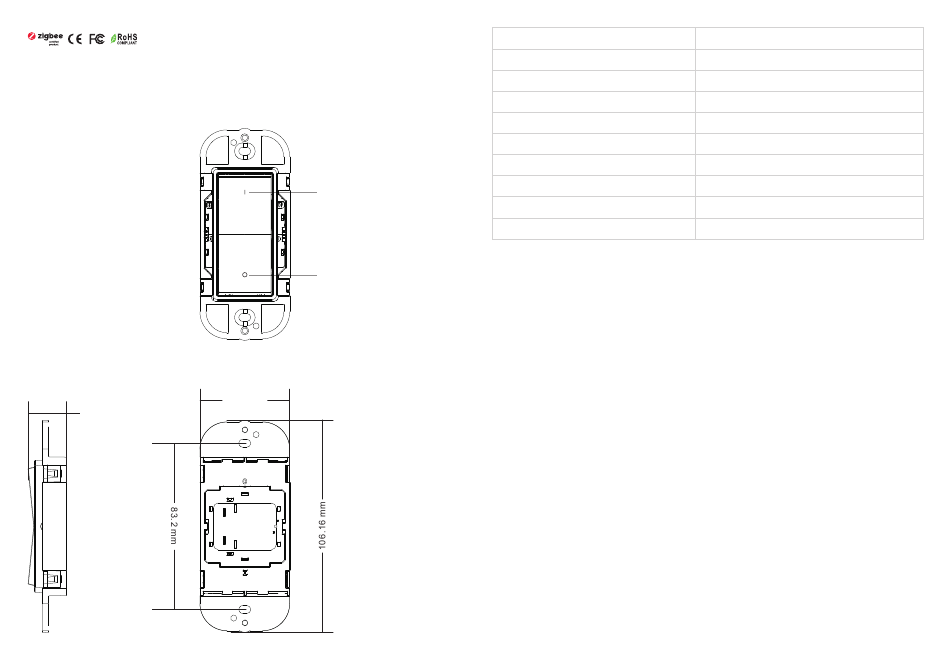

19.21 mm
Short press to turn on paired
devices,press and hold to increase
brightness smoothly
Short press to turn off paired
devices,press and hold to decrease
brightness smoothly
Front side
44.9 mm
Back side
Product Data
70100048
Switch Type
Transmission Range
Radio Frequency
Power Supply
Buttons
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty
Product Description
The Zigbee green power switch is a wireless transmitter that communicates with a wide variety of Zigbee
compatible systems. The switch uses battery-free, energy-harvesting technology. Every time the switch is
pressed, a micro-generator produces a small electrical current that powers a built-in transmitter. This
transmitter sends wireless radio signals that are used to remotely control a compatible system.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
• DO NOT expose the device to moisture.
Operations
Pairing GP Switch to a Compatible Zigbee Light Device:
Step 1: activate learning to GP switch mode of the compatible light device (generally our light devices will
enter the mode by short pressing "prog." or "reset" button 4 times, or by resetting power 4 times), please refer
to the manual of corresponding light device.
Step 2: put the GP switch into learning mode.
To enter into learning mode, start by selecting one button on the switch. (Use the same button for the entire
sequence, pressing any other button will exit the learning mode.)
Next, execute the following sequence:
1. Press and hold the selected button for over 10 seconds, and then release it.
2. Short press the button once, and then release it.
3. Press and hold the button again for over 10 seconds, and then release it.
The switch has now entered learning mode.
Wait for approximate 1 second to check whether there is indication on the light device for successful pairing,
generally our light device will blink twice to indicate successful pairing.
Exit learning mode on the switch by pressing any other button on the switch after pairing successfully.
Just ignore step 3.
If there is no indication, please continue executing step 3.
DIM control
10-30m (typical)
2.4GHz (Zigbee channels 11-26)
Self-generated when switch is pressed
2
44.9x106.2x19.2mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
IP20
5 years
