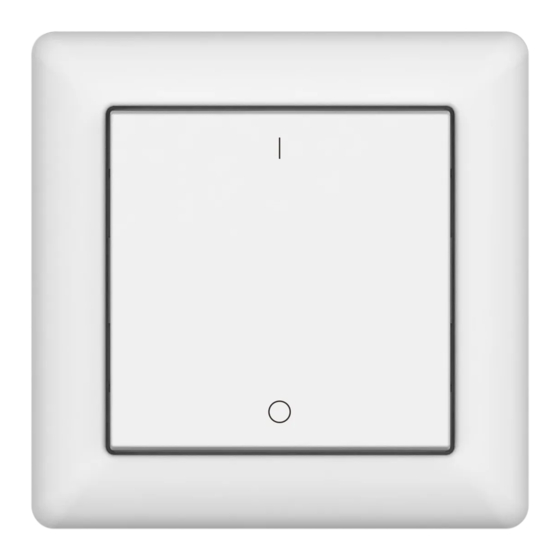

DIM Zigbee Green Power Switch
Important: Read All Instructions Prior to Installation
Function introduction
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
Short press to turn on paired
devices, press and hold to
increase brightness smoothly
Short press to turn off paired
devices, press and hold to
decrease brightness smoothly
Front side
80.5 mm
Back side
70100047
With Glass Frame
10.10 mm
Product Data
Switch Type
Transmission Range
Radio Frequency
Power Supply
Buttons
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty
Product Description
The Zigbee green power switch is a wireless transmitter that communicates with a wide variety of Zigbee compatible
systems. The switch uses battery-free, energy-harvesting technology. Every time the switch is pressed, a micro-
generator produces a small electrical current that powers a built-in transmitter. This transmitter sends wireless radio
signals that are used to remotely control a compatible system.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
▪ DO NOT expose the device to moisture.
86mm
The remote control can be fixed on the wall with 3M glue or screw.
DIM control
10-30m (typical)
2.4GHz (Zigbee channels 11-26)
Self-generated when switch is pressed
80.5x80.5x14.7mm / 86x86x14mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
5 years
2
IP20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunricher SR-ZGP2801K2-DIM
Summary of Contents for Sunricher SR-ZGP2801K2-DIM
- Page 1 DIM Zigbee Green Power Switch 70100047 With Glass Frame 10.10 mm Important: Read All Instructions Prior to Installation Function introduction Short press to turn on paired devices, press and hold to increase brightness smoothly Short press to turn off paired devices, press and hold to 86mm decrease brightness smoothly...
- Page 2 Operations If there is no indication on the light device for successful pairing, the signal sent by the switch is not on the correct channel, we need to change the switch’s channel. Pairing GP Switch to a Compatible Zigbee Light Device: To change the switch’s channel, short press the selected button to move from default channel 11 to the next Step 1: activate learning to GP switch mode of the compatible light device (generally our light devices will enter the one.
- Page 3 Installation With Plastic Frame With Glass Frame The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in numerous frames by different manufactures as below list: BEKER S1, B1, B3, B7 glass GIRA Standard55, E2, Event, Esprit JUNG...
