RGB+CCT Zigbee Push-button Coupler
Important: Read All Instructions Prior to Installation
Function introduction
43.00 mm
In-wall
Remote Control
Green Power Device
L
N
Made in China
Product Description
The RGB+CCT Zigbee push-button coupler is a 4-channel push-button interface for simple wall/flush type box
installation. You can continue to use existing switches, irrespective of the manufacturer. It is a wireless transmitter that
communicates with Zigbee light device that supports Green Power feature. The coupler adopts AC100-240V power input
to power a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control compatible
devices.
It enables to learn and control RGB+CCT, RGBW, CCT, dimmable Zigbee light devices that supports Green Power
feature with 4 push buttons.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
• DO NOT install the device with power applied.
• DO NOT expose the device to moisture.
09.ZG2833PAC5C.04839
4 channels push button interface
100-240VAC Power Input
Product Data
Switch Type
Transmission Range
Radio Frequency
Power Supply
Power Consumption
Number of Push Buttons
Connector Type
Wire Size
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty

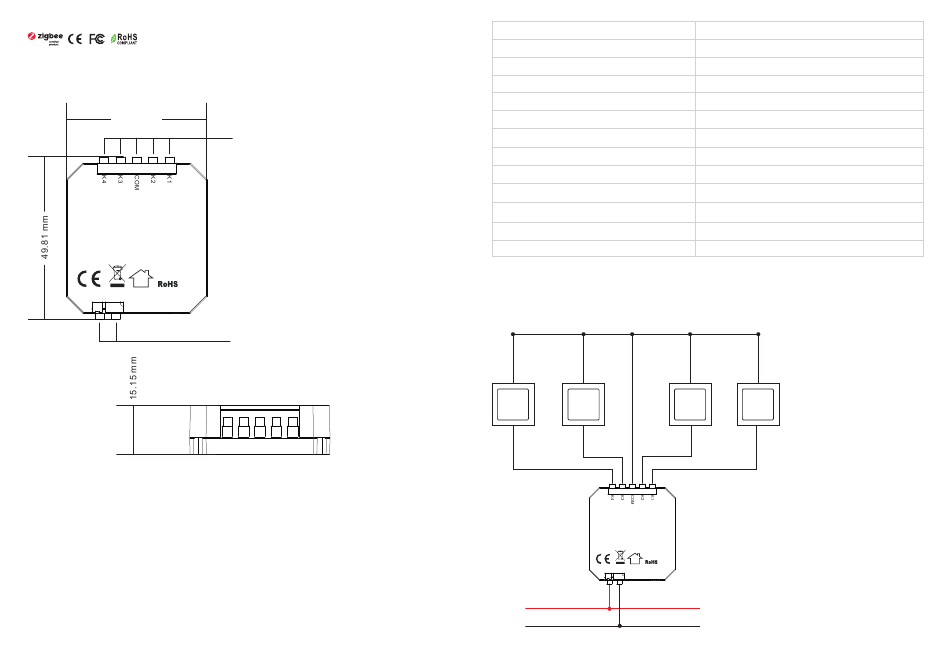

Wiring Diagram
Notes for the diagrams:
L - terminal for live lead input
N - terminal for neutral lead input
K1, K2, K3, K4 -
terminals for push buttons
COM - common
terminal for grounding to the push buttons connected to the coupler
PUSH
PUSH
Button 4
Button 3
In-wall
Remote Control
Green Power Device
L
N
Made in China
L
N
Note: 1) Number of push buttons connected must be 4.
2) Supported switch types: 1-gang 1 way, 2-gang 1 way, 3-gang 1 way, 4-gang 1 way.
RGB+CCT
10-30m (typical)
2.4GHz
100-240VAC, 50/60Hz
Less than 0.5W
4
Push-In
0.2 - 1.5mm2 (AWG28 - AWG14)
49.8x43x15.1mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
IP20
5 years
PUSH
PUSH
Button 2
Button 1
