Sunricher SR-ZGP2801K4-5C Instruction Manual

RGB+CCT RGBW CCT DIM 4 in 1 Zigbee Green Power Switch
Important: Read All Instructions Prior to Installation

Function introduction

Short press to turn on paired
devices,press and hold to
increase brightness smoothly
Short press to turn off paired
devices, press and hold to
decrease brightness smoothly
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
Press and hold to increase
CW and decrease WW
smoothly,press and hold again
to increase WW and decrease
CW smoothly
Press and hold to change
RGB colors in the sequence
R-G-B smoothly, Press and
hold again to change RGB
colors in the sequence B-G-R
smoothly

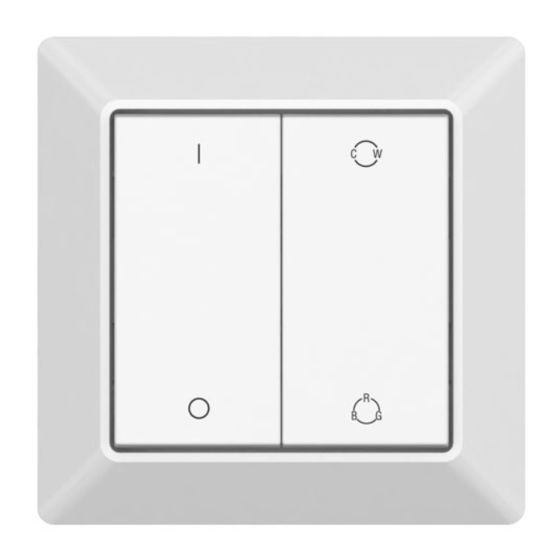

Front side
80.5 mm
Back side
70100056 With Glass Frame
10.10 mm

Product Data

Switch Type
Transmission Range
Radio Frequency
Power Supply
Buttons
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty

Product Description

The Zigbee green power switch is a wireless transmitter that communicates with a wide variety of Zigbee compatible
systems. The switch uses battery-free, energy-harvesting technology. Every time the switch is pressed, a micro-
generator produces a small electrical current that powers a built-in transmitter. This transmitter sends wireless radio
signals that are used to remotely control a compatible system.

Compatible With

Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
• DO NOT expose the device to moisture.
86mm
The remote control can be fixed on the wall with 3M glue or screw.
RGB+CCT RGBW CCT DIM 4 in 1
10-30m (typical)
2.4GHz (Zigbee channels 11-26)
Self-generated when switch is pressed
80.5x80.5x14.7mm / 86x86x14mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
5 years
4
IP20
