Sunricher SR-ZGP2801K4-DIM-G2-E Instruction Manual

Battery Powered DIM Zigbee GP Switch
Important: Read All Instructions Prior to Installation
Function introduction
Short press to turn on paired
devices of group 1,press and
hold to increase brightness of
group 1 smoothly
Short press to turn off paired
devices of group 1,press and
hold to decrease brightness of
group 1 smoothly
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
Short press to turn on paired
devices of group 2,press and
hold to increase brightness of
group 2 smoothly
Short press to turn off paired
devices of group 2,press and
hold to decrease brightness of
group 2 smoothly
Front side
80.5 mm
Back side
70100053 With Glass Frame
10.10 mm
Product Data
Switch Type
Transmission Range
Radio Frequency
Power Supply
Buttons
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty

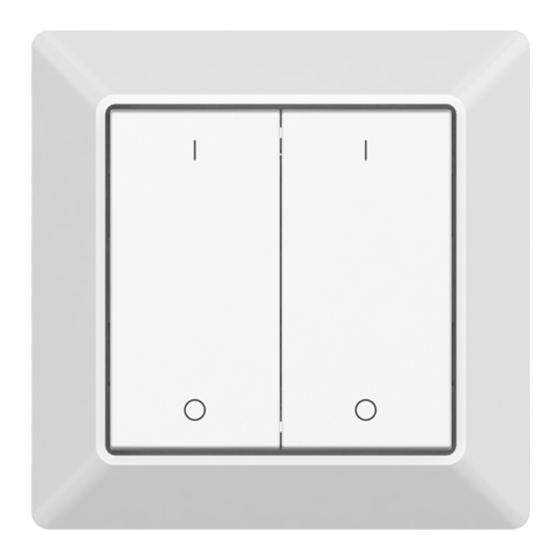

Product Description
The battery powered Zigbee GP switch is a wireless transmitter that communicates with a wide variety of
Zigbee compatible systems. The switch uses a CR2430 battery that powers a built-in transmitter. This
transmitter sends wireless radio signals that are used to remotely control a compatible system.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
▪ This device contains a button lithium battery that shall be stored and disposed properly
▪ DO NOT expose the device to moisture.
86mm
The remote control can be fixed on the wall with 3M glue or screw.
DIM control
10-30m (typical)
2.4GHz (Zigbee channels 11-26)
Self-generated when switch is pressed
80.5x80.5x14.7mm / 86x86x14mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
5 years
4
IP20
