Sunricher SR-ZGP2801K4-CCT-E-US Instruction Manual

Battery Powered CCT Zigbee GP Switch
Important: Read All Instructions Prior to Installation
Function introduction
Short press to turn on paired
devices,press and hold to increase
brightness smoothly
Short press to turn off paired
devices,press and hold to decrease
brightness smoothly

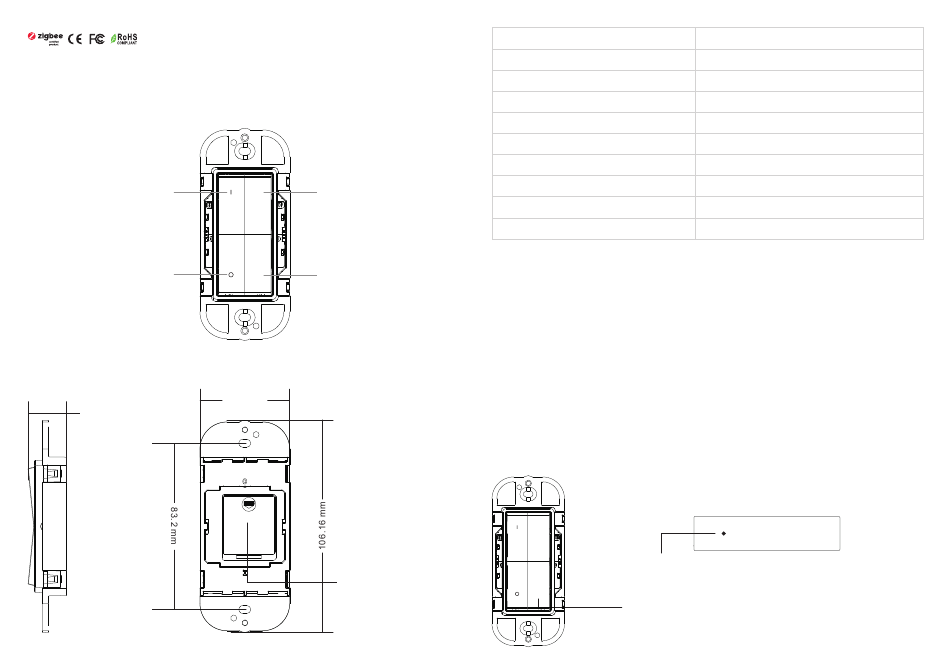

19.21 mm
Short press to increase WW and
decrease CW by 10%,press and hold
WW
to increase WW and decrease CW
smoothly
Short press to increase CW and
decrease WW by 10%,press and hold
CW
to increase CW and decrease WW
smoothly
Front side
44.9 mm
Battery: CR2430
Before the first use, please open
the battery cover and remove the
protective film
Back side
Product Data
70100069
Switch Type
Transmission Range
Radio Frequency
Power Supply
Buttons
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty
Product Description
The battery powered Zigbee GP switch is a wireless transmitter that communicates with a wide variety of
Zigbee compatible systems. The switch uses a CR2430 battery that powers a built-in transmitter. This
transmitter sends wireless radio signals that are used to remotely control a compatible system.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
▪ This device contains a button lithium battery that shall be stored and disposed properly
▪ DO NOT expose the device to moisture.
Operations
Pairing GP Switch to a Compatible Zigbee Light Device(Easy Mode):
WW
CW
Color temperature and dim control
10-30m (typical)
2.4GHz (Zigbee channels 11-26)
3V(1xCR2430 battery)
44.9x106.2x19.2mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
IP20
5 years
Step 1: Do wiring the Zigbee light device according to wiring diagram(please refer
to the instruction of the light device that you would like to pair to)
Zigbee Light Device
Prog.
Step 2: Click the "Prog." or "Reset" button on the light device 4 times continuously to
set it into pairing to GP switch mode
Step 3: Click any of the 4 buttons on the GP switch 4 times continuously, e.g. button
CW . LED lights connected with the device flicker twice means the light device is paired
to the GP switch successfully.
Note: one light device can be paired with max. 20 GP switches.
