Sunricher SR-ZG9100A Manual

ZigBee In Wall Smart Switch
Important: Read All Instructions Prior to Installation

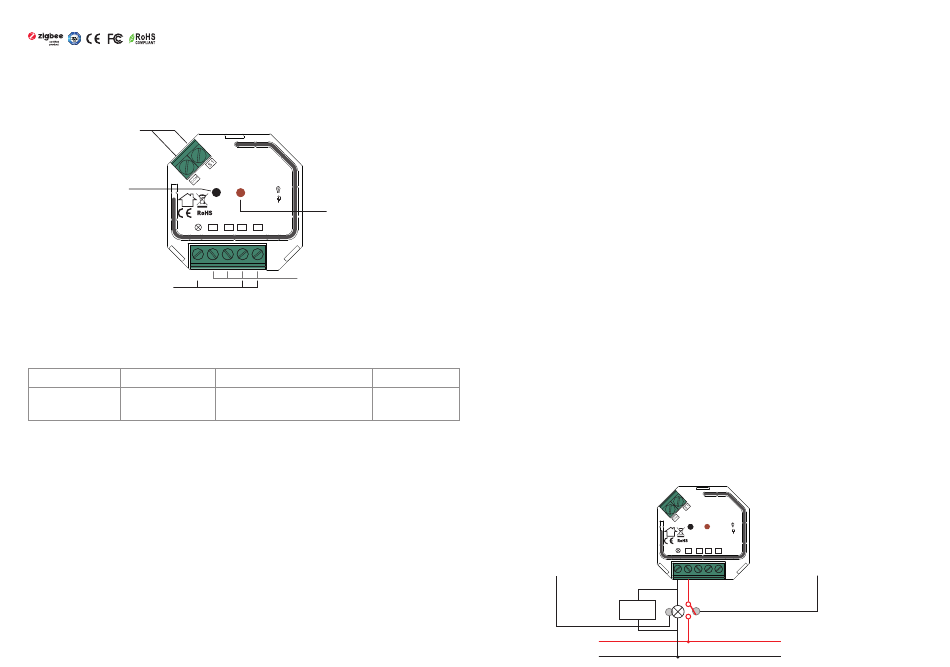

Function introduction

Switch input
"Reset" Key: factory
reset of the switch,
short press to turn
on/off load
OUT
Load output
(2-wire with No Neutral output)
(3-wire with Neutral output)

Product Data

Input Voltage Output Voltage
100-240VAC 100-240VAC
• ZigBee in wall smart switch based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel output, max. load up to 4.8A
• Input and Output with Screw Terminals, Safe and Reliable
• Enables to control ON/OFF of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power feature and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Mini Size, Easy to be Installed into a standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20

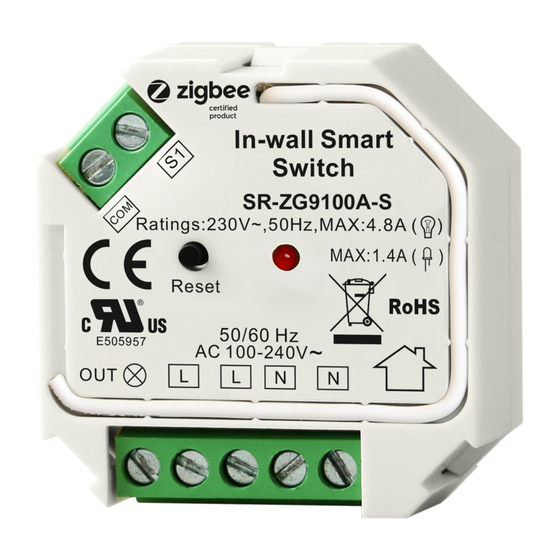

In-wall Smart
Switch
Ratings:100-240V,50/60Hz,
LED indicator, stays solid on
MAX:4.8A ( )
when power on the switch, turns
MAX:1.4A ( )
Reset
off after added to a zigbee hub,
indicates (same status as connected
AC 100-240V
load) when program the switch
L L N N
(network pairing, touchlink,
factory reset)
AC power input
(2-wire with No Neutral input)
(3-wire with Neutral input)
Output Current
Resistive load: max. 4.8A
45.5x45x20.3mm
Capacitive/Inductive load: max. 1.4A

Main Features:

09.ZG9100A.04736
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Soft start function,
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch,
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of
applicable regulations,
• The Bypass is an extension unit.
The switch operates under the following loads:
• Conventional incandescent and HV halogen light sources
• ELV halogen lamps (with electronic transformers)
• MLV halogen lamps (with ferromagnetic transformers)
• Compact fluorescent CFL tube lamps with electronic ballast
• Fluorescent tube lamps with electronic ballast
• Supported light sources (power factor > 0.5) with minimal power of 3W using the Bypass (depending on the
type of load)
ZigBee Clusters the device supports are as follows:
Input Clusters
• 0x0003: Identify
• 0x0000: Basic
• 0x0702: Simple Metering
Output Clusters
• 0x0019: OTA
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Operation

Size(LxWxH)
1.Do wiring according to connection diagram correctly.
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This
receiver receives and is controlled by wireless radio signals from the compatible ZigBee system.

3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)

Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
fail. Please refer to the part "Factory Reset Manually".
Step 2: From your ZigBee Controller or hub interface, choose to add lighting device and enter Pairing mode as
instructed by the controller.
Step 4: Connected light will blink 5
times and then stay solid on, then the
device will appear in your controller's
menu and can be controlled through
controller or hub interface.
• 0x0004: Groups
• 0x0005: Scenes
• 0x0b04: Electrical Measurement • 0x0b05: Diagnostics
In-wall Smart
Switch
Ratings:100-240V,50/60Hz
MAX:4.8A ( )
Step 3: Re-power on the device to set
MAX:1.4A ( )
Reset
it into network pairing mode
OUT AC 100-240V
(connected light flashes twice
L L N N
slowly), 15 seconds timeout, repeat
the operation.
Bypass
• 0x0006: On/off
Live
Neutral
