Sunricher SR-ZG2835KAC-NK4-SW Instruction Manual

Sunricher SR-ZG2835KAC-NK4-SW Instruction Manual

4-key zigbee push button smart switch

Advertisement

Quick Links

4-Key Zigbee Push Button Smart Switch
Important: Read All Instructions Prior to Installation

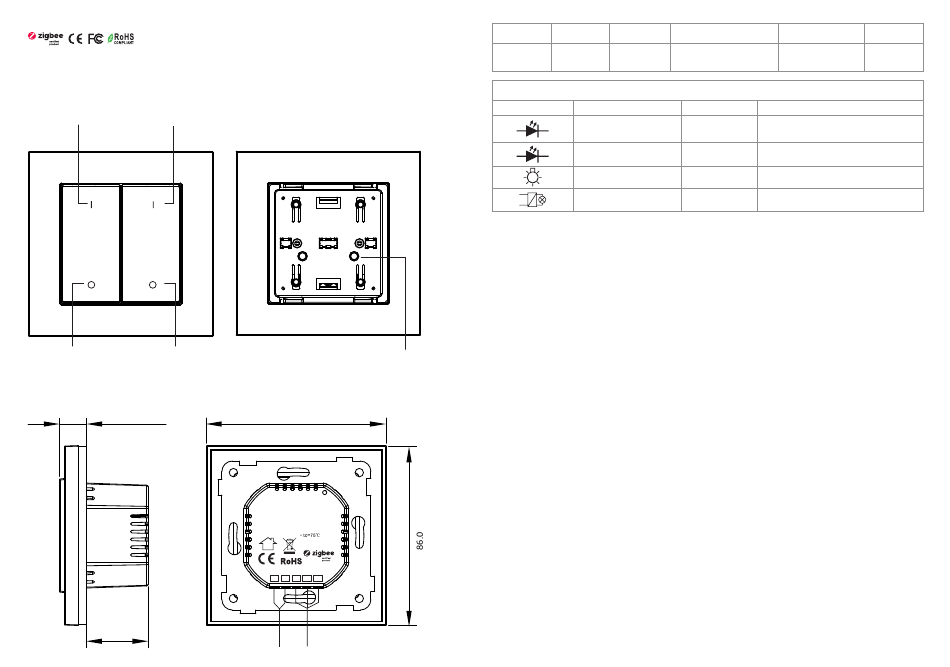

Function introduction
Short press to turn
Short press to turn
on load L1
on load L2
Short press to turn
Short press to turn
off load L1
off load L2
12.8
29.6
"Reset" Key:
network pairing, touchlink
or factory reset the device
86.0
Smart Switch
SR-ZG2835KAC-NK4-SW
Ratings: 100-240V~, 50/60Hz,
5.1A, 1170W max.
ta=-20℃-+50℃
L2
L1
L
N
N
2 channels load output
AC power input
Product Data
Input Voltage
Output Voltage
100-240VAC
100-240VAC
Load Symbol
ZigBee Clusters the device supports are as follows:
Endpoint 0x01 - Channel 1:
• 0x0000: Basic
• 0x0003: Identify
Endpoint 0x02 - Channel 2:
• 0x0000: Basic
• 0x0003: Identify
Endpoint 0x0b - Whole device:
• 0x0000: Basic
• 0x0702: Simple Metering
• 0x1000: ZLL Commissioning
• ZigBee push button AC switch based on latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage
for zigbee
• Supports resistive loads, capacitive loads or inductive loads
• 2 channels output, max. load 5.1A/CH
• Enables to control ON/OFF of connected light source
• Supports energy metering, real time energy consumption can be monitored
• ZigBee device that supports Touchlink commissioning
• Can be controlled by zigbee gateway, zigbee remote and local push buttons
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
1.Do wiring according to connection diagram correctly.
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This
receiver receives and is controlled by wireless radio signals from the compatible ZigBee system.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
fail. Please refer to the part "Factory Reset Manually".
Output Channel
Max. Load
Resistive load: max. 5.1A/CH
2 Channels
Capacitive load: max. 1.7A/CH
Compatible Load Types
Load Type
Maximum Load
390W/CH @ 230V
LED lamps with transformers
180W/CH @ 110V
390W/CH @ 230V
LED drivers
180W/CH @ 110V
Incandescent lighting,
1170W/CH @ 230V
560W/CH @ 110V
HV Halogen lamps
Low voltage halogen lighting
390W/CH @ 230V
with electronic transformers
180W/CH @ 110V
• 0x0004: Groups
• 0x0005: Scenes
• 0x0004: Groups
• 0x0005: Scenes
• 0x0b04: Electrical Measurement
• 0x0019: OTA
Max. Number of Parallel
Size(LxWxH)
Connected Load
9/CH
86x86x42.4mm
Remarks
Due to variety of LED lamp designs, maximum
number of LED lamps is further dependent on
power factor result when connected to the switch.
Maximum permitted number of drivers is 390W
divided by driver nameplate power rating.
• 0x0006: On/off
• 0x0006: On/off
• 0x0b05: Diagnostics
