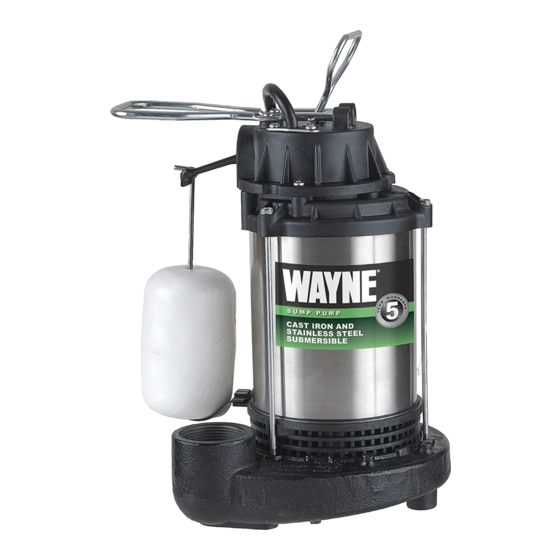

Wayne CDU1000 Operating Instructions And Parts Manual
Submersible sump pump
Hide thumbs
Also See for CDU1000:
- Operating instructions manual (9 pages) ,
- Operating instructions and parts manual (8 pages) ,
- User manual
Advertisement
Quick Links
Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
CONSTRUCTION
Cast Iron (CICDU800, CICDU790), Stainless Steel,
MOTOR HOUSING
(CDU1000, CDU980E) Coated Steel (CDU800,
CDU790, SPF33, SPF50, CDT50) Reinforced
Thermoplastic (WST33)
VOLUTE
CDU1000, CDU980E,
CDU800, CDU790, CDT50
Cast Iron
IMPELLER
Glass Reinforced Thermoplastic
SHAFT
Steel
DISCHARGE
1-1/2 in. NPT
PERFORMANCE GAL/HR
Model
HP
0 ft
CDU1000
1/2
6100
CDU980E
3/4
5490
CICDU800,
1/2
5100
CDU800, CDT50
CICDU790,
1/3
4600
CDU790
SPF50
1/2
4300
SPF33
1/3
3750
WST33
1/3
3000
*Images are for illustration purposes only.
Not all models are shown.
© 2018, WAYNE/Scott Fetzer Company
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1 HP .................... (CDU1000)
3/4 HP ................ (CDU980E)
1/2 HP ............ (CICDU800, CDU800,
............................. SPF50, CDT50)
1/3 HP ........... (CICDU790, CDU790,
................................SPF33, WST33)
15 A (minimum)
11-1/2 in. high x 9-3/4 in. base
Vertical: Approximately 9 in.
Tether: Approximately 13 in.
Vertical: Approximately 4 in.
Tether: Approximately 7 in.
SPF33, SPF50, WST33
Glass Reinforced Thermoplastic
Discharge Head (Lift Distance)
5 ft
10 ft
15 ft
20 ft
5460
5100
4560
3840
5076
4600
4100
3500
4500
3840
3060
2040
3810
3060
2220
1200
3900
3360
2700
1260
3300
2718
1920
-
2610
2130
1404
400
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Intended for Indoor Use Only
www.waynepumps.com
Submersible Sump Pump
Vertical Float Switch
Tether Float Switch
600002-001 D 05/19
