Wayne CDU1000 Operating Instructions And Parts Manual
Submersible sump pumps
Hide thumbs
Also See for CDU1000:
- Operating instructions and parts manual (12 pages) ,
- Operating instructions manual (9 pages) ,
- User manual
Advertisement
Operating Instructions and Parts Manual
Scan the QR code or visit www.waynepumps.com for the full manual in English and Español. If you are having trouble scanning the
QR code, type the following URL into your internet browser to access the manual, www.waynepumps.com/wayne-operating-manuals/
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
CONSTRUCTION
Cast Iron (CICDU800, CICDU790) Stainless Steel
(CDU1000, CDU980E, CDU800SS, CDU790SS)
MOTOR HOUSING
Coated Steel (CDU800, CDU790, SPF33,
SPF50, CDT50) Reinforced Thermoplastic
(WST33)
VOLUTE
CDU1000, CDU980E,
CDU800, CDU800SS,
CICDU800
CDU790, CDU790SS,
CICDU790, CDT50
Cast Iron
IMPELLER
Glass Reinforced Thermoplastic
SHAFT
Steel
DISCHARGE
1-1/2 in. NPT
PERFORMANCE GAL/HR
Model
HP
0 ft
CDU1000
1
6100
CDU980E
3/4
5490
CDU800SS,
CICDU800,
1/2
5100
CDU800, CDT50
CDU790SS,
CICDU790,
1/3
4600
CDU790
SPF50
1/2
4300
SPF33
1/3
3750
WST33
1/3
3000
© 2025, WAYNE
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1 HP .................... (CDU1000)
3/4 HP ................ (CDU980E)
1/2 HP ............
(CDU800SS, CICDU800
............................... CDU800, SPF50, CDT50)
1/3 HP ...........
(CDU790SS, CICDU790,
................................ CDU790, SPF33,
WST33)
15 A (minimum)
11-1/2 in. high x 9-3/4 in. base
Vertical: Approximately 9 in.
Tether: Approximately 13 in.
Vertical: Approximately 4 in.
Tether: Approximately 7 in.
SPF33, SPF50, WST33
Glass Reinforced Thermoplastic
Discharge Head (Lift Distance)
5 ft
10 ft
15 ft
20 ft
5460
5100
4560
3840
5076
4600
4100
3500
4500
3840
3060
2040
3810
3060
2220
1200
3900
3360
2700
1260
3300
2718
1920
-
2610
2130
1404
400

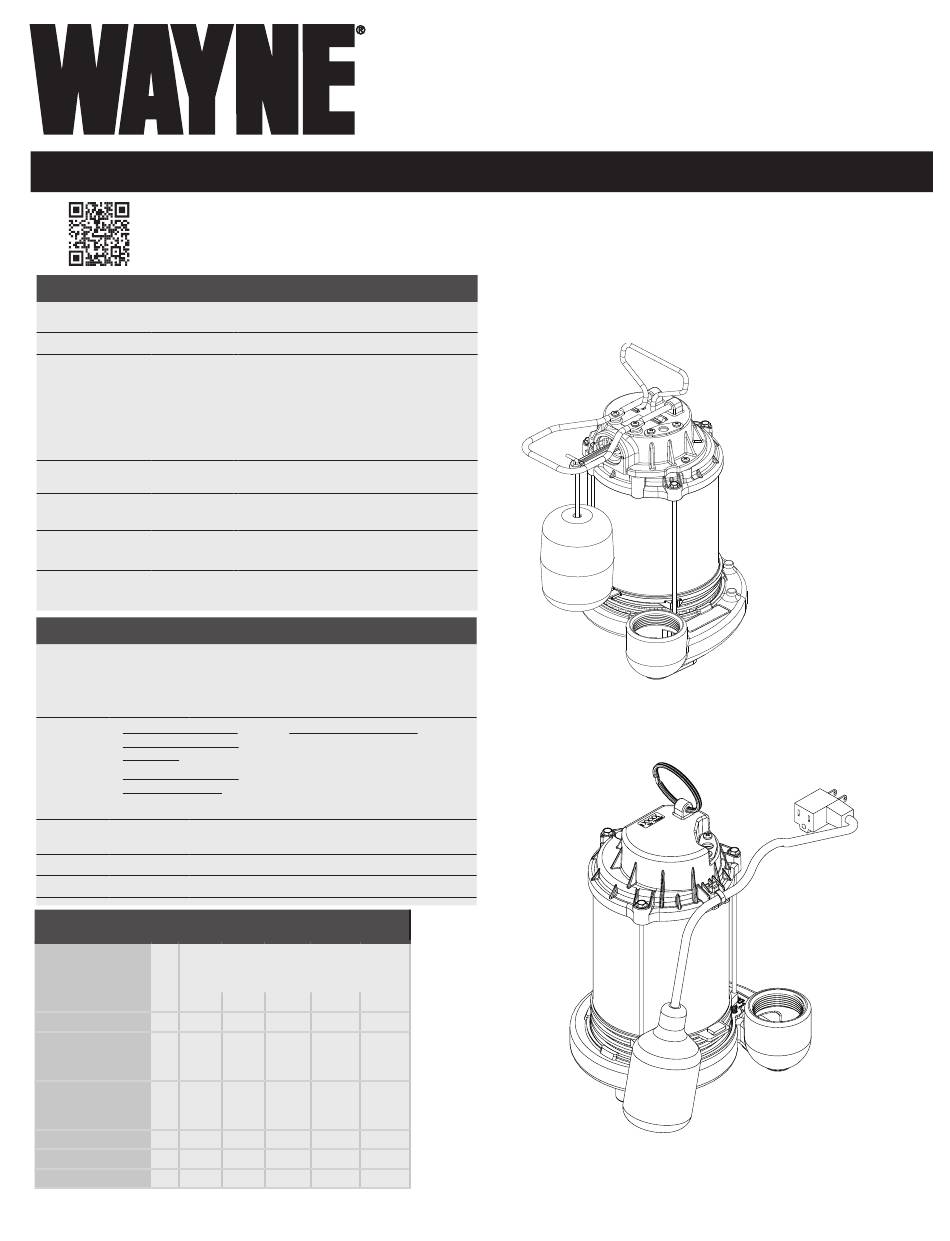

Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Intended for Indoor Use Only
www.waynepumps.com
Submersible Sump Pumps
Vertical Float Switch
Tether Float Switch
*Images are for illustration purposes only.
Not all models are shown.
600002W-001 H 03/25
