INSTALLATION
INSTALL GUIDE
AND OPERATION
MANUAL
X Series

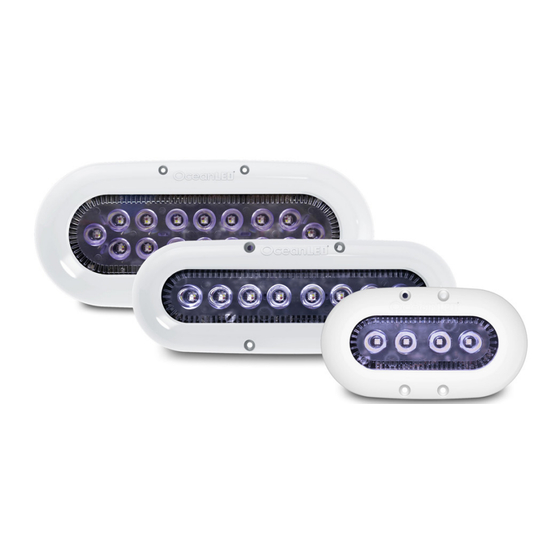

X4 / X8 / X16
Product kit includes: X Light / Bezel / Screws / Fuse Kit
OceanLED reserve the right to change this document without notice. Please refer to www.oceanled.com for latest documentation.
OceanLED INSTALL / X SERIES / 130217 / v7.2
Advertisement
Table of Contents
Related Manuals for Oceanled X4
Summary of Contents for Oceanled X4
- Page 1 X4 / X8 / X16 Product kit includes: X Light / Bezel / Screws / Fuse Kit OceanLED reserve the right to change this document without notice. Please refer to www.oceanled.com for latest documentation. OceanLED INSTALL / X SERIES / 130217 / v7.2...
-
Page 2: Warranty Coverage
LED cannot be held responsible for any consequential costs incurred after installation. GENERAL OceanLED underwater lights are generally used for illuminating the water around a boat or yacht. Best placement for achieving the best results are described in “1.6 Finding the mounting location”. -
Page 3: Important Precautions
WARNING: • Before installing your OceanLED light, read and follow all warning notices and instructions which are included. Failure to follow safety warnings and instructions can result in property damage, severe injury, or even death. -
Page 4: Chapter 1: Overview
CHAPTER Chapter 1: Overview This handbook provides instructions to assist you in the installation and set up of the X Series lights from OceanLED. 1.1 Identifying your model 1.2 DC power / fuse ratings The majority of installations will utilize onboard 12/24v DC power supply from a marine battery. However,... -
Page 5: Optional Extras
1.4 Optional extras (Not available in all countries. Contact your local OceanLED representative for more information) Take control of your OceanLED X DMX Series Colours lights via your iOS or Android device. With the new OceanDMX App for Android and iOS, you have all the control and customisation you need to create any scene or light display you wish, with full control over sensitivity, speed and brightness. - Page 6 X Series lights are suitable for GRP and wooden hulls, as well as carbon fibre, aluminum/steel hulls using suitable mounting hardware.(If using stainless steel bezel ensure precautions for prevention of galvanic corrosion are employed (contact your local OceanLED dealer for more information). •...
-
Page 7: Chapter 2: Installation
• OceanLED lighting products must be dry fitted. When installing, be sure that the light fits the area and secures to the hull using the appropriate hardware before applying any sealant. -
Page 8: Installing The Light Fixture
Place light fixture into position or use mounting template provided (inside of box sleeve). Mark the screw hole position and pilot drill using correct sized drill bit for included screws. Always dry fit units before applying any sealant. 2.2 Installing the light fixture TIP: Use a suitable marine sealant such as 3M™... - Page 9 WARNING: Always consult a qualified electrician when connecting OceanLED light fixtures. When connecting light units, please note that all OceanLED lights will operate within a specific voltage range. Connecting lights to your V DC power source It is recommended to connect the light to the DC power source using a two pole, screw type terminal block with a minimum voltage rating of 50V and a current rating of at least 5A.
- Page 10 CABLE cable gauge 18awg If you are not installing a custom fuse panel, it is imperative that the OceanLED supplied fuse is installed on each power line from each light. Please consult electrical specification on page 4 to select the correct fuse.
-
Page 11: Chapter 3: Operation
CHAPTER THREE Chapter 3: Operation NOTE: X Series lights have active thermal protection. This means that while underwater, they run at full power due to water cooling. Moderate dimming may be noticeable with above water installations when high ambient temperatures are reached to avoid damage. 3.1 - Single Colour Strobe To enter strobe mode, toggle the power on and off quickly twice. -
Page 12: Chapter 4: Maintenance And Troubleshooting
Lost, broken, and worn parts can be replaced on request and can be obtained through your local OceanLED representative. If the external flexible cable of this unit is damaged, contact your local OceanLED representative to arrange for replacement (cable must only be replaced by OceanLED, service agent or a similar qualified person). - Page 13 Check cable to make sure there is no damage to Light will require This is not covered by the the cable. (If cable is damaged, it must only be replacing. warranty. replaced by OceanLED, service agent or similar qualified person).
- Page 14 4.4 - Diagnostic LEDs The X series is fitted with an advanced diagnostic indicator system. There are two small indicator LEDs (one red, one orange) within the unit, visible through the front lens. When the unit is first turned on, both LED’s will flash briefly. This is normal operation and is part of the start-up procedure, to show that the LEDs are functioning.
-
Page 15: Chapter 5: Appendix
CHAPTER FIVE Chapter 5: Appendix SUPPLY CABLE CONDUCTOR SIZE CHART CABLE CIRCUIT CURRENT LENGTH 2 AMP 4 AMP 6 AMP 8 AMP 10 AMP 12 AMP 14 AMP 16 AMP (FEET) 18 AWG 18 AWG 16 AWG 16 AWG 16 AWG 14 AWG 14 AWG 14 AWG... -
Page 16: Chapter 6: Warranty Statement
This warranty statement is for those products supplied to and sold from all territories internationally OceanLED stands by its products. In general terms, the company gives a full 2 year’s manufacturer’s warranty on all of its products from date of sale from OceanLED. -
Page 17: Limitation Of Liability
5: GREY MARKET INTERNET POLICY Grey marketed products continue to be a threat to our worldwide distribution and dealer network. In order to proactively discourage this activity by Internet resellers of our product, OceanLED will not honor the warranty... -
Page 18: Making A Claim
6.3.5 When you have made contact with the dealer please follow their instructions. 6.3.6 If you are unable to contact a dealer you may wish to contact OceanLED directly. To contact the Service Manager either call our UK office on +44 1455637505 or email sales@oceanled.com. - Page 19 6.4.7 If we are unable to find a problem with the part, we will inform you of the outcome. We can provide guidance to possible reasons for the fault. Unfortunately we are not liable for or can fix problems with equipment & installations that are not purchased from OceanLED. The returned product can be returned to you at your request.
-
Page 20: For Technical Assistance
Please remove this page and keep for your files For technical assistance: Europe: service@oceanled.com The Americas: warranty@oceanledusa.com Warranty Serial Code(s): © 2017 Ocean LED Marine LTD Ocean LED Marine LTD Ocean LED USA LLC All Rights Reserved Unit 1 Jacknell Road...
