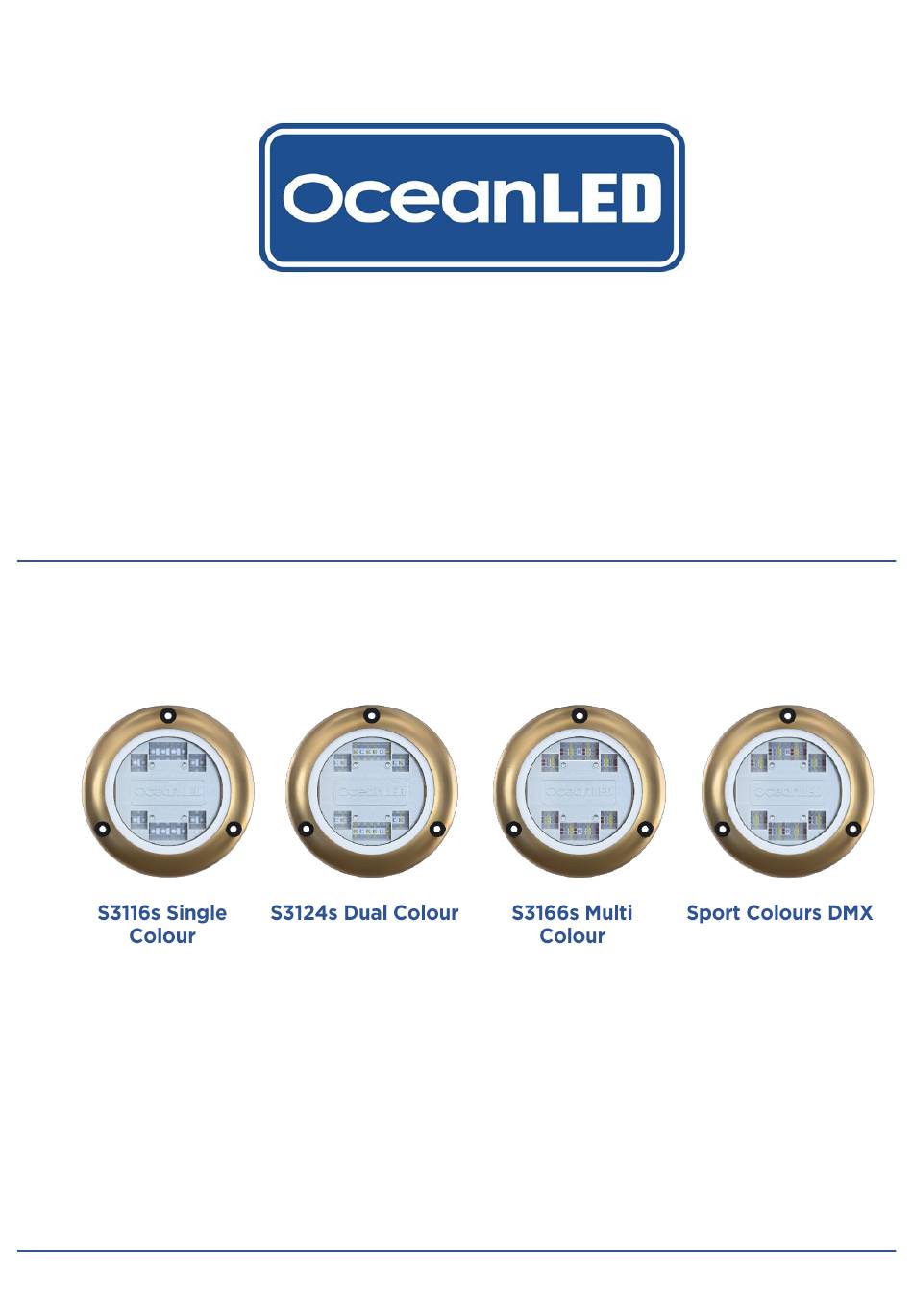

- Page 1 INSTALLATION & OPERATION MANUAL SPORT SERIES L I G H T. Y E A R S A H E A D . WWW.OCEANLED.COM OceanLED MAN-000048 / SPORTS SERIES / REVISION 1...
-
Page 2: Preface
This equipment is designed to operate at voltages of less than 50v DC. WARNINGS Before installing your OceanLED Light, read and follow all warning notices and instructions that are included. Failure to follow safety warnings and instructions can result in property damage, severe injury, or even death. - Page 3 This information should be given to the owner and/ or operator of this equipment. WARRANTY COVERAGE Please refer to www.oceanled.com/warranty for full warranty statement. This manual contains important information about the installation, operation, and safe use of this product.
-
Page 4: Table Of Contents
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Contents Preface ....................................1 1 Installation Checklist ............................... 4 2 Overview ..................................5 3 Installation ..................................7 3.1 Preparing The Hull ..............................7 3.2 Installing The Light Fixture ............................8 3.3 Electrical Installation (12/24V DC)......................... -
Page 5: Installation Checklist
INSTALL & OPERATION MANUAL Installation Checklist 1. Decide on light spacing – OceanLED recommendations available. Ensure mounting location is flat and check internally for ease of access if there is a rib, strut or other hull structure that may interfere with the installation. -
Page 6: Overview
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Overview Product Overview Identifying your model Sport S3116s Blue S3124s Dual Colour S3166s Multi Colour Sport Colours DMX Sport S3116s White - Connected cable type Packaging contents BOX CONTENTS Sport Light &... - Page 7 SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Depth/Spacing SPORT Spacing / Install Depth Single/Dual/Colours Recommended Spacing 0.5-1.2m (2-4’) Recommended Installation depth (from the light waterline) 8-10” (20-25cm) Hole Cut Out Hole Cut out size: 12.5mm (1/2”) Overall Dimensions See overall dimension schematic –...
-
Page 8: Installation
Please also consult the manufacturer for more detail on modifications and installation. Sport lights, such as the OceanLED Sport series, are specifically designed and suitable for surface mounting on boats with GRP (Glass Reinforced Plastic) and wooden hulls. Also available to use on carbon and metal hulled boats with the inclusion of the Isolating Kit. -
Page 9: Installing The Light Fixture
If using the Isolating kit, please refer to the instructions provided with the kit. OceanLED recommends use of provided screws: No.6 (3.5mm) x 1 inch (25mm) Pozi Self Tapping Pan Head Screws - Stainless Steel. If alternative screws are used, do not use counter sunk or non-flat shoulder screws to secure your lights to the hull (failure to do so will invalidate your warranty). - Page 10 SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Installation (Once hull preparation is complete) If installing an Isolating kit, please refer to the supplied instructions. 1. Test light(s) before fitting. Before proceeding with the fitting of the light(s), it is essential to test them to ensure their functionality.
-
Page 11: Electrical Installation (12/24V Dc)
Connecting light/s to your DC Power Source OceanLED Sport models require a 12 or 24V DC supply. This supply should be a minimum of 6A @12V or 3A @ 24V DC per light. It is recommended to connect the light to the DC power source using a two pole, screw type terminal block with a minimum voltage rating of 50V and a current rating of at least 6A. - Page 12 Sport DMX Colours operated by DMX controller When connecting Sport Colours DMX lights with an OceanLED DMX controller or a third-party DMX controller, please refer to the table below and consult the installation manual of the 2-way DMX Junction Box and controller for the correct connection method.
- Page 13 (the use of glue-lined heat shrink is highly recommended to ensure water tightness). 3. It is imperative to either use the OceanLED supplied fuse on each power line to each light or employ a suitable protection device to safeguard the cable/light unit. Failure to do so will void the warranty. Refer to the table in Chapter 2 for Power Consumption and Recommended Fuse values.
- Page 14 Basic Electrical Connections Diagram (lights operated by power switch) Use the tables in the Appendix (Section 6.3 & 6.4) as a guide to the required cable gauge. Example of the DC Installation Sport Series (non DMX) with the OceanLED 4-Way Junction Box Max Nominal Current @ Current @...
- Page 15 Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Example of the DC Installation Sport Colours DMX with the OceanLED 2-Way DMX Junction Box Details how to connect the DMX control device can be found in the product installation manual attached with the device.
- Page 16 SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Example of the DC Installation of Sport Series with relay control Max Nominal Current @ Current @ Model Power 12V DC 24V DC consumption S3116s Single Colour 5.5A...
-
Page 17: Control System Installation
OceanLED DMX Control (SPORT DMX Colours only) To enable DMX control of all lights, the OceanLED 2-Way DMX Junction Box must be used. Each junction box can power and control a maximum of two SPORT Colours DMX lights. Please note that the light cable to the junction box must not be extended due to DMX signal limitations. -
Page 18: Finalising The Installation
INSTALL & OPERATION MANUAL 3.5 FINALISING THE INSTALLATION The SPORT Series lens is pre-coated with a specialized Tritonium® coating which makes the surface of the lens a non- stick layer. OceanLED does not recommend that bottom paint or any type of anti-fouling agent is applied to the light body, as damage may occur due to chemical incompatibility. -
Page 19: Operation / Maintenance
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Operation / Maintenance 4.1 SINGLE COLOUR STROBE To enter strobe mode, toggle the power on and off quickly twice, then back on. They should now strobe in a pseudo-random pattern. -
Page 20: Sport Multi Colour / Colours Dmx - Control With Dc Switch Operation
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Setting the default start up colour: 1. Once the configuration mode has been entered (see above). Toggling off the power and back on again quickly (as in a normal mode change) will toggle between the default start-up colours (blue & white). This is indicated by the colour displayed after the blue/white flash sequence. -
Page 21: Maintenance
Marine growth can accumulate rapidly on the light, leading to a decrease in performance within a few weeks. To prevent this, all OceanLED lights are coated with a specialized Tritonium® coating, which creates a non-stick layer on the glass lens surface. It is recommended to clean the lights bi-weekly using a boat brush or a similar tool to keep the lens clean. -
Page 22: Troubleshooting
If fuse keeps blowing, then there is short circuit in the light system that must be traced and rectified. If no Check that there is power supplied to Replace fuse. external short can be located contact the light cable connection. your local OceanLED representative. - Page 23 Checked all factors that are above, Contact your dealer for a Light faulty. and the light still does not work. replacement light. SPORT Series Dual / Multi-Colour PROBLEM CHECK CAUSE It is recommended to fit relays into How is the power to the lights...
- Page 24 SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Sport Colours DMX PROBLEM CHECK CAUSE DMX not Check that the DMX electrical connections connected or between the DMX controller and the light Remake connection. unit / Junction Box(es) have been made poor electrical correctly.
-
Page 25: Appendix
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Appendix 6.1 OVERALL DIMENSIONS PHYSICAL Total Weight 700g Cable Length (standard) 6.56’ (2m) -
Page 26: Accessories
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL 6.2 ACCESSORIES 4 WAY DC POWER JUNCTION BOX P/N: #019901 Simple fused Junction Box for splitting and distributing DC power (12/24V DC). Provides 1x DC power input and 4x individually fused independent outputs. 2-WAY DMX JUNCTION BOX P/N: #013205 DMX and Power distribution box for the SPORT Colours DMX and E3 Colours... -
Page 27: Cable Gauge Chart 12V
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL 6.3 CABLE GAUGE CHART 12V Supply & Return Cable Conductor Size Chart 3% drop for when using 12V DC supply Cable Cable Circuit Current length length (feet)* (m)** 2 Amp 4 Amp... -
Page 28: Cable Gauge Chart 24V
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL 6.4 CABLE GAUGE CHART 24V Supply & Return Cable Conductor Size Chart 3% drop for when using 24V DC supply Cable Cable Circuit Current length length (feet)* (m)** 2 Amp 4 Amp... -
Page 29: How To Use Cable Guage Chart
SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL 6.5 HOW TO USE CABLE GUAGE CHART Example of installation: 4x S3116s (Single Colour White) 1x Power Junction Box 12V DC Power System (On Board Battery) Estimated cable length from power supply to the Junction Box: 30 feet The total current consumption for 4x S3116s @ 12V →... -
Page 30: Installation Of 2-Way Dmx Junction Box
For the latest specifications of the lights being used, please refer to the spec sheet available at www.oceanled.com. 3. Insert the bare ends of the wires into the screw terminal ②, ensuring correct polarity (usually red for positive and black for negative). - Page 31 SPORTS SERIES Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL OceanLED SPORT DMX Colours Connections: Light 1 / Light 2 Wire colour BLACK DMX+ YELLOW DMX- BROWN 5. Loosen the “Light 2” M16 cable gland cap ⑤ and feed the cable of the second light through the gland and into the screw terminal ⑥...
-
Page 32: Warranty
Single / Dual / Colours / DMX INSTALL & OPERATION MANUAL Warranty Please remove this page and keep for your files For technical assistance: Europe: service@oceanled.com The Americas: warranty@oceanledusa.com Warranty Serial Code(s): © 2023 Ocean LED Marine LTD Ocean LED Marine LTD...
