INSTALL GUIDE
OceanLED Support
INSTALL MANUAL
Sport Series

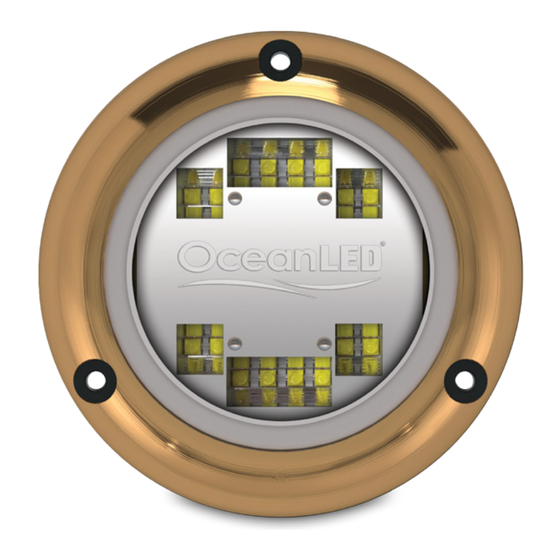

S3116s Single Colour
S3124s Dual Colour
Product kit includes: Light / Screws / Fuse Kit
OceanLED reserve the right to change this document without notice. Please refer to www.oceanled.com for latest documentation.
OceanLED INSTALL / Sport Series / 080317 / v7.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3116s and is the answer not in the manual?

Questions and answers

Related Manuals for Oceanled S3116s

Summary of Contents for Oceanled S3116s

  • Page 1 S3116s Single Colour S3124s Dual Colour Product kit includes: Light / Screws / Fuse Kit OceanLED reserve the right to change this document without notice. Please refer to www.oceanled.com for latest documentation. OceanLED INSTALL / Sport Series / 080317 / v7.1...

  • Page 2: Warranty Coverage

    LED cannot be held responsible for any consequential costs incurred after installation. GENERAL OceanLED underwater lights are generally used for illuminating the water around a boat or yacht. Best placement for achieving the best results are described in “1.5 Finding the mounting location”.

  • Page 3: Important Precautions

    This equipment is designed to operate at voltages of less than 50v DC. WARNING • Before installing your OceanLED Light, read and follow all warning notices and instructions which are included. Failure to follow safety warnings and instructions can result in property damage, severe injury or even death.

  • Page 4: Chapter 1: Overview

    This handbook provides instructions to assist you in the installation and set up of the Sport Series lights from OceanLED. 1.1 Identifying your model S3116s Single Colour S3124s Dual Colour 1.2 DC power / fuse ratings The majority of installations will utilize onboard 12/24v DC power supply from a marine battery. However,...

  • Page 5: Optional Extras

    1.4 Optional extras JUNCTION BOX - • For a more professional watertight connection for your Sport lights, use the fused junction box to connect up to 4 lights in an IP66 enclosure. Products may vary from image shown.
  • Page 6 WARNING: ENSURE MOUNTING LOCATION IS FLAT AND CHECK INTERNALLY FOR EASE OF ACCESS IF THERE IS A RIB, STRUT OR OTHER HULL THAT MAY INTERFERE WITH THE INSTALLATION. AVOID MOUNTING LIGHTS ON SURFACES THAT ARE SUBJECTED TO HIGH SPEED WATER IMPACT E.G. PLANING SURFACES.

  • Page 7: Chapter 2: Installation

    • OceanLED recommends dry fitting all products. When installing, be sure that the light fits the area and se- cures to the hull using the appropriate hardware before applying any sealant.

  • Page 8: Installing The Light Fixture

    inside the hull, remove it with acetone before sanding. Place light fixture into position or use mounting template provided. Mark the screw hole position and pilot drill using correct sized drill bit for included screws. Always dry fit units before applying any sealant. 2.2 Installing the light fixture TIP: Use a suitable marine sealant such as 3M™...
  • Page 9 Connecting lights to your DC power source OceanLED Sport models require a 12/24v DC supply. This supply should be a minimal 6A @ 12vDC or 3A @ 24v DC per light. It is recommended to connect the light to the DC power source using a two pole, screw type terminal block with a minimum voltage rating of 50V and a current rating of at least 6A.

  • Page 10: Connection Diagram

    Always test the lights BEFORE the boat goes back into the water. Failure to test prior to launch may require boat to re hauled out. At this final stage make sure all of the system is operational. See Chapter 3 Operation. If you have any issues, please contact your local OceanLED representative. Warning: Never install a new light and leave the boat in the water unchecked for several days.

  • Page 11: Chapter 3: Operation

    CHAPTER THREE Chapter 3: Operation 3.1 - Single Colour Strobe To enter strobe mode, toggle the power on and off quickly twice, then back on. They should now strobe in a pseudo-random pattern. The lights can be reset from strobe mode after 20 seconds of use. Simply turn off then back on again.

  • Page 12: Chapter 4: Maintenance And Troubleshooting

    Sea growth can collect quickly on the light and this can reduce the performance in just a few weeks. To prevent the build-up of sea growth, all OceanLED lights have been coated with a specialized Tritonium coating which makes the surface of the lens a non-stick layer which helps ward off long term barnacle buildup.
  • Page 13 Check cable to make sure there is no damage to Light will require This is not covered by the the cable. (If cable is damaged, it must only be replacing. warranty. replaced by OceanLED, service agent or similar qualified person).

  • Page 14: Chapter 5: Appendix

    CHAPTER FIVE Chapter 5: Appendix SUPPLY CABLE CONDUCTOR SIZE CHART CABLE CIRCUIT CURRENT LENGTH 2 AMP 4 AMP 6 AMP 8 AMP 10 AMP 12 AMP 14 AMP 16 AMP (FEET) 18 AWG 18 AWG 16 AWG 16 AWG 16 AWG 14 AWG 14 AWG 14 AWG...

  • Page 15: Chapter 6: Warranty Statement

    This warranty statement is for those products supplied to and sold from all territories internationally OceanLED stands by its products. In general terms, the company gives a full 2 year’s manufacturer’s warranty on all of its products from date of sale from OceanLED.

  • Page 16: Limitation Of Liability

    5: GREY MARKET INTERNET POLICY Grey marketed products continue to be a threat to our worldwide distribution and dealer network. In order to proactively discourage this activity by Internet resellers of our product, OceanLED will not honor the warranty...

  • Page 17: Making A Claim

    6.3.5 When you have made contact with the dealer please follow their instructions. 6.3.6 If you are unable to contact a dealer you may wish to contact OceanLED directly. To contact the Service Manager either call our UK office on +44 1455637505 or email sales@oceanled.com.
  • Page 18 6.4.7 If we are unable to find a problem with the part, we will inform you of the outcome. We can provide guidance to possible reasons for the fault. Unfortunately we are not liable for or can fix problems with equipment & installations that are not purchased from OceanLED. The returned product can be returned to you at your request.
  • Page 19 NOTES __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...

  • Page 20: For Technical Assistance

    Please remove this page and keep for your files For technical assistance: Europe: service@oceanled.com The Americas: warranty@oceanledusa.com Warranty Serial Code(s): © 2017 Ocean LED Marine LTD Ocean LED Marine LTD Ocean LED USA LLC All Rights Reserved Unit 1 Jacknell Road...
