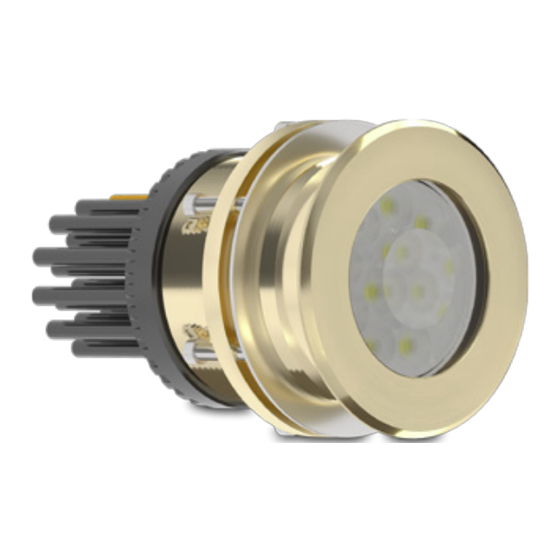

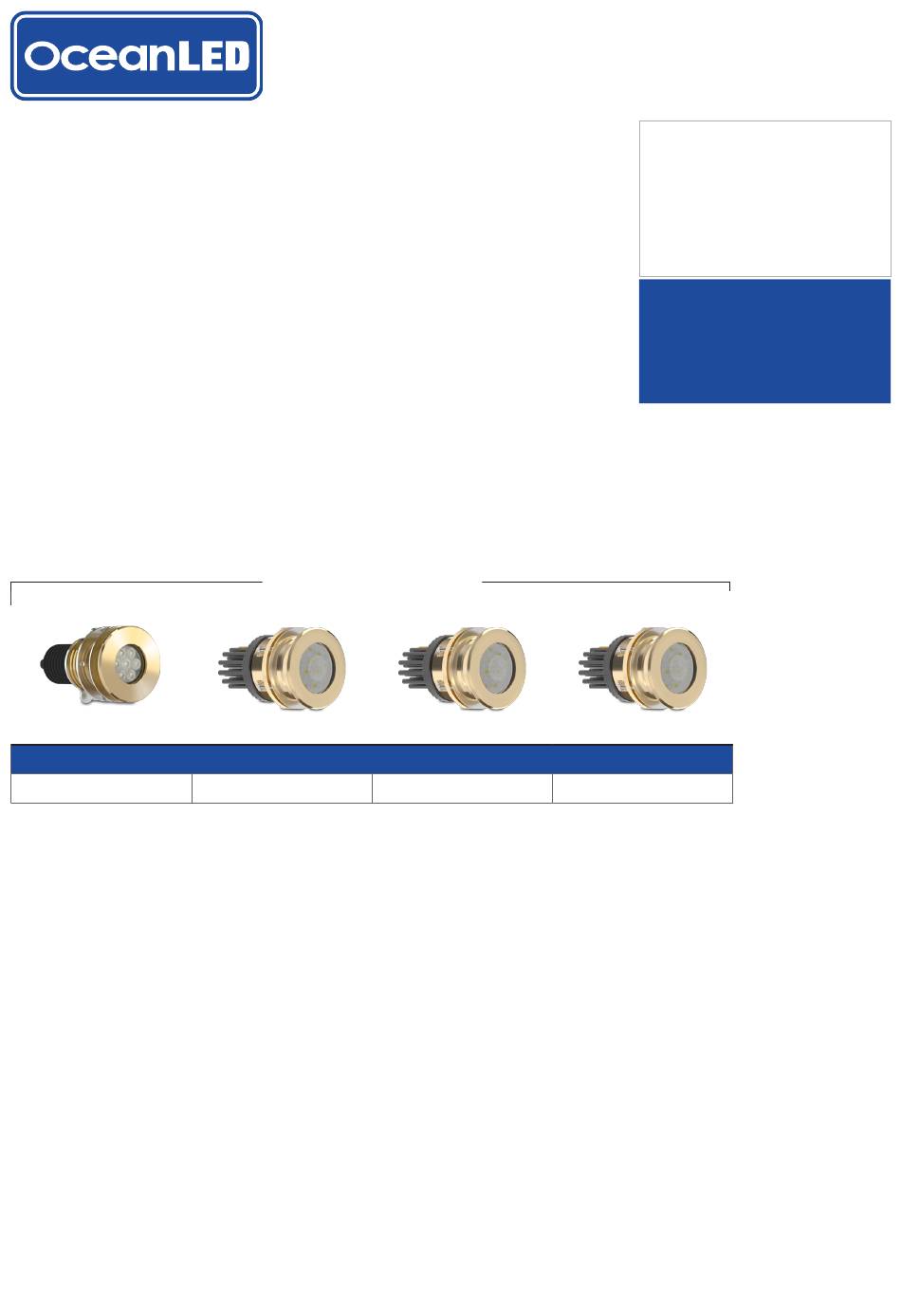

- Page 1 OceanLED This installation manual covers the following products: ALLURE XFM HD Gen2 MK2.2 Allure Xchangeable Flush Mount (XFM) Gen2 MK2.2 50 XFM HD 150 XFM HD 250 XFM HD Colours XFM HD OceanLED INSTALL / ALLURE / 240717 / 7.1...
-
Page 2: Warranty Coverage
Always test the lights prior to installation. Failure to do this may result in additional installation time and will not be covered by warranty. GENERAL OceanLED underwater lights are generally used for illuminating the water around a boat or yacht. Best placement for achieving the best results are described in finding the right mounting location. WARRANTY COVERAGE 2 year warranty from time of purchase, regardless of time of installation. -
Page 3: Important Safety Precautions
May be harmful to the eye. WARNING • Before installing your OceanLED Light, read and follow all warning notices and instructions which are included. Failure to follow safety warnings and instructions can result in property damage, severe injury or even death. -
Page 4: Chapter 1: Overview
90 W 104 W 10 Amps 5 Amps 1.5 Amps 1 Amp Colours XFM 120 W 138 W 10 Amps Optional Extras (Not available in all countries, contact your reseller for more information.) OceanLED INSTALL / ALLURE / 240717 / 7.1... - Page 5 Warning Insufficient sealing of wires may lead to water ingress and cause product failure. Evidence of water ingress in cable due to installation errors will invalidate warranty. OceanLED recommends using an OceanLED Junction Box to prevent this issue. Allure Series Accessories DELRIN ISOLATING SLEEVE - •...
- Page 6 • When switching lights on for the first time, take into consideration water clarity, ambient light etc as first time impressions can be marred by poor conditions. • Test units after installation. OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 7 Warning: There are several different hull types most are either solid fiberglass or cored. Be sure you follow the correct procedures for the hull you are preparing since all require different preparation methods. We will cover the two most common types below. If in doubt please contact your local OceanLED representative or the boat manufacturer for assistance.
- Page 8 The core (wood or foam) must be cut and sealed carefully. The core must be protected from water seepage and we recommend that the hull be reinforced to prevent it from crushing under the locking nut which would allow the mounting tube to become loose. If unsure, please consult your local OceanLED representative.
- Page 9 Sand the area around the hole using a heavy grit sandpaper to remove the previous bottom paint and to ensure that the sealant will adhere properly to the hull. If there is any petroleum residue inside the hull, remove it with acetone before sanding. OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 10 Xchangeable Flush Mount 50 XFM HD Gen2 MK2.2 Kit Includes 50 XFM HD Gen2 MK2.2 Connection Cable Light (hard wired to the light) Driver V DC Gen2 Power Pigtail Locking Ring Kit Fuse Kit OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 11 • Allen key (5mm) • Thread lock - Loctite 243 or equivalent. Tip: OceanLED recommends dry fitting all products. When installing, be sure that the light fits the area and secures to the hull using the appropriate hardware before applying any sealant.
- Page 12 Carefully examine the installation to make sure the seal you have installed on the unit is fully water-tight. If in doubt, remove light, re-apply sealant and re-install. OceanLED INSTALL / ALLURE / 240717 / 7.1...
-
Page 13: Maintenance
(see bonding schematic – chapter 7 Appendix). See Chapter 5 for driver installation information. MAINTENANCE FOR TIPS ON REMOVING THE INSERT, PLEASE REFER TO THE MAINTENANCE AND REPAIR SECTION IN THIS GUIDE. OceanLED INSTALL / ALLURE / 240717 / 7.1... - Page 14 (Single Colour DC Only) Fuse Kit Driver Mains V AC (Single Colour DC Only) (optional) Colours DMX Driver DMX Cable 24V DC (Colours Only) (optional) Colours DMX Driver (optional) Locking Ring Kit OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 15 • Allen key (4mm) • Thread lock - Loctite 243 or equivalent Tip: OceanLED recommends dry fitting all products. When installing, be sure that the light fits the area and secures to the hull using the appropriate hardware before applying any sealant.
- Page 16 Carefully examine the installation to make sure the seal you have installed on the unit is fully water-tight. If in doubt, remove light, re-apply sealant and re-install. OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 17 (see bonding schematic – chapter 7 Appendix). See Chapter 5 for driver installation information. MAINTENANCE FOR TIPS ON REMOVING THE INSERT, PLEASE REFER TO THE MAINTENANCE AND REPAIR SECTION IN THIS GUIDE. OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 18 Warning: Never use power tools to secure the drivers: hand tighten only. Warning: Red=Positive; Black=Ground Warning: When connecting light units, please note that all OceanLED lights will operate within a specific Warning range. Please check the electrical information to ensure cable gauge, fuse recommendations, break- er size etc.
- Page 19 Connect the Deutsch plug from the light into the multi pin port on the driver. If you are not installing a custom fuse panel, it is imperative that the OceanLED supplied fuse is installed on the power line from each light. Please consult electrical specification on page 4 to select the correct fuse, dependant on which model of light you have.
- Page 20 Warning: Never use power tools to secure the drivers: hand tighten only. Warning: Brown=Live; Blue=Neutral; Green/Yellow=Earth Warning: When connecting light units, please note that all OceanLED lights will operate within a specific voltage range. Please check the electrical information to ensure cable gauge, fuse recommendations, breaker size etc.
- Page 21 Warning: Never use power tools to secure the drivers: Hand tighten only. Warning: Red = Positive; Black = Negative (Ground). Warning: When connecting light units, please note that all OceanLED lights will operate within a specific voltage range. Please check the electrical information to ensure cable gauge, fuse recommendations, breaker size etc.
- Page 22 Warning: Never use power tools to secure the drivers: hand tighten only. Warning: Brown=Live; Blue=Neutral; Green/Yellow=Earth Warning: When connecting light units, please note that all OceanLED lights will operate within a specific voltage range. Please check the electrical information to ensure cable gauge, fuse recommendations, break- er size etc.
-
Page 23: Dmx Control Connection
NOT be covered under warranty. Using the DMX cable (supplied with the OceanLED DMX controllers), connect the first driver in the series into the first DMX port. If required, the DMX control panel cable can be extended by a competent electrician. - Page 24 Secure cables to finish and test light units BEFORE the boat goes into the water. If you have any issues and need troubleshooting advice, please contact your OceanLED representative. See section 5.6 for testing the installation of OceanLED Lights OceanLED INSTALL / ALLURE / 240717 / 7.1...
-
Page 25: Test Your Installation
Always test the lights BEFORE the boat goes back into the water. At this final stage make sure all of the system is operational. If you have any issues, please contact your local OceanLED representative. Warning: Never install a new light fixture then leave the boat in the water unchecked for several days. -
Page 26: Chapter 6: Operation, Maintenance And Troubleshooting
Once fully installed, lights will illuminate when power is applied to the driver. 6.1.2 DMX Colours Once fully installed and power is applied, lights will illuminate dimly for approximately one second. Then turn off unless there is a valid DMX signal. OceanLED INSTALL / ALLURE / 240717 / 7.1... - Page 27 If the lens or seals have been compromised, do not remove the insert whilst the boat is in the water. Contact your local OceanLED representative for more Information (If lens becomes damaged then a replacement unit is required).
- Page 28 (See Chapter 3 and 4) Replacement Parts Lost, broken, and worn parts should be replaced immediately and can be obtained through your dealer or from the manufacturer (Only use genuine OceanLED parts). OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 29 This is not covered by the cable replacing warranty. Only use genuine OceanLED parts Checked all factors that are above and the light still Light faulty Contact your dealer for a does not work replacement light OceanLED INSTALL / ALLURE / 240717 / 7.1...
- Page 30 Not daisy-chained Daisy-chain the DMX the controller are daisy-chained connections between controllers Check all cables are Not connected correctly Correct cabling connected correctly connections Connections are correctly Contact the Warranty connected Department OceanLED INSTALL / ALLURE / 240717 / 7.1...
-
Page 31: Chapter 7: Appendix
10 AWG 8 AWG 8 AWG 4 AWG 4 AWG 2 AWG 2 AWG 95-100 12 AWG 10 AWG 8 AWG 4 AWG 4 AWG 4 AWG 2 AWG 2 AWG 31 31 OceanLED INSTALL / ALLURE / 240717 / 7.1... - Page 32 fixture and the bonding system. Sacrificial anode The cable itself will give a false reading for the purpose of this test. If you have any questions regarding the above please contact OceanLED: +44 (0) 1455 637505 or info@oceanled.com...
- Page 33 NOTES __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...
- Page 34 Leicestershire LE10 3BS FL 33442-3025 Trademarks are the property of United Kingdom Tel: +1 954.523.2250 Ocean LED Marine LTD Tel: +44 (0) 1455 637505 Fax: +1 954.523.2249 Fax: +44 (0) 1455 238553 sales@oceanledusa.com sales@oceanled.com OceanLED INSTALL / ALLURE / 240717 / 7.1...
