Mod.
1730
DS1730-008A
SCATOLA INCASSO SCH. 1730/60 PER PULSANTIERA
EMBEDDING BOX REF. 1730/60 FOR OUTDOOR STATION
UNTERPUTZGEHÄUSE ARTIKELNUMMER 1730/60 FÜR
TORSTELLE

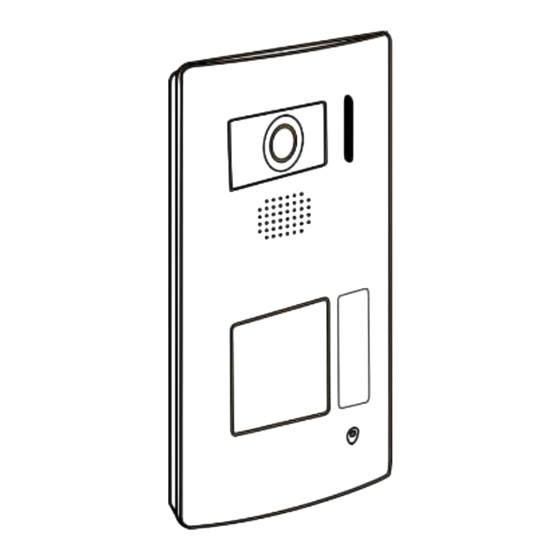

Installazione ad incasso per pulsantiera modello 1730/51
Flush-mounting installation for 1730/51 outdoor station type
Unterputzinstallation für Torstelle Modell 1730/51

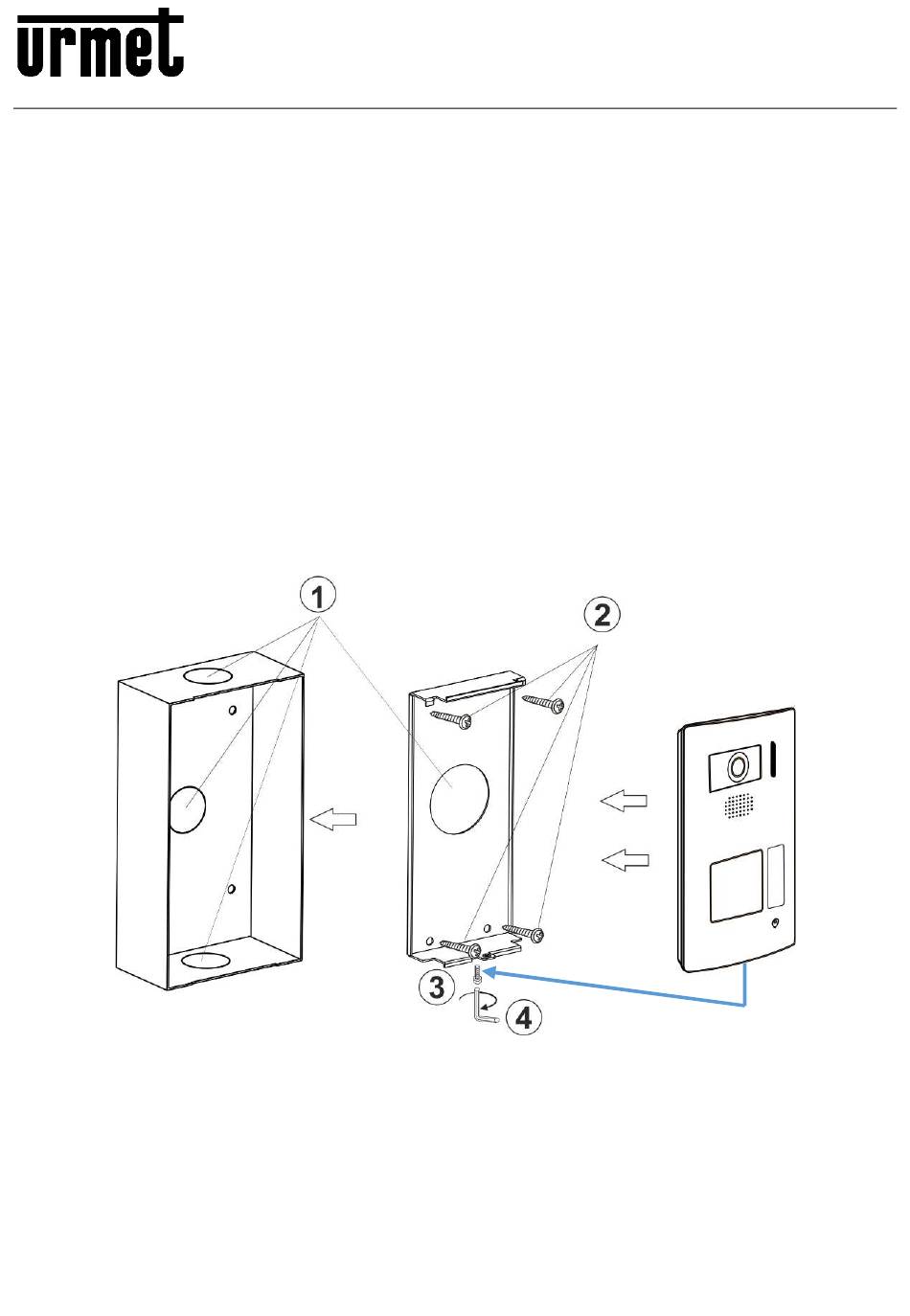

Blocco frontale
Scatola incasso
Piastra
Front side
Embedding box
Framework
Vorderer block
Unterputzgehäuse
Montageplatte
Advertisement
Related Manuals for urmet domus 1730/60
Summary of Contents for urmet domus 1730/60
- Page 1 Mod. 1730 DS1730-008A SCATOLA INCASSO SCH. 1730/60 PER PULSANTIERA EMBEDDING BOX REF. 1730/60 FOR OUTDOOR STATION UNTERPUTZGEHÄUSE ARTIKELNUMMER 1730/60 FÜR TORSTELLE Installazione ad incasso per pulsantiera modello 1730/51 Flush-mounting installation for 1730/51 outdoor station type Unterputzinstallation für Torstelle Modell 1730/51...
- Page 2 Fori per passaggio cavi Cable passage holes Öffnungen für die Verdrahtung Viti per fissare la piastra sulla scatola Altezza di Screws for fixing the framework on the box installazione consigliata Schrauben zum Befestigen der Montageplatte auf dem Gehäuse Recommended installation Vite per fissare il frontale della pulsantiera sulla Height piastra...
