Mod.
1730
DS1730-023

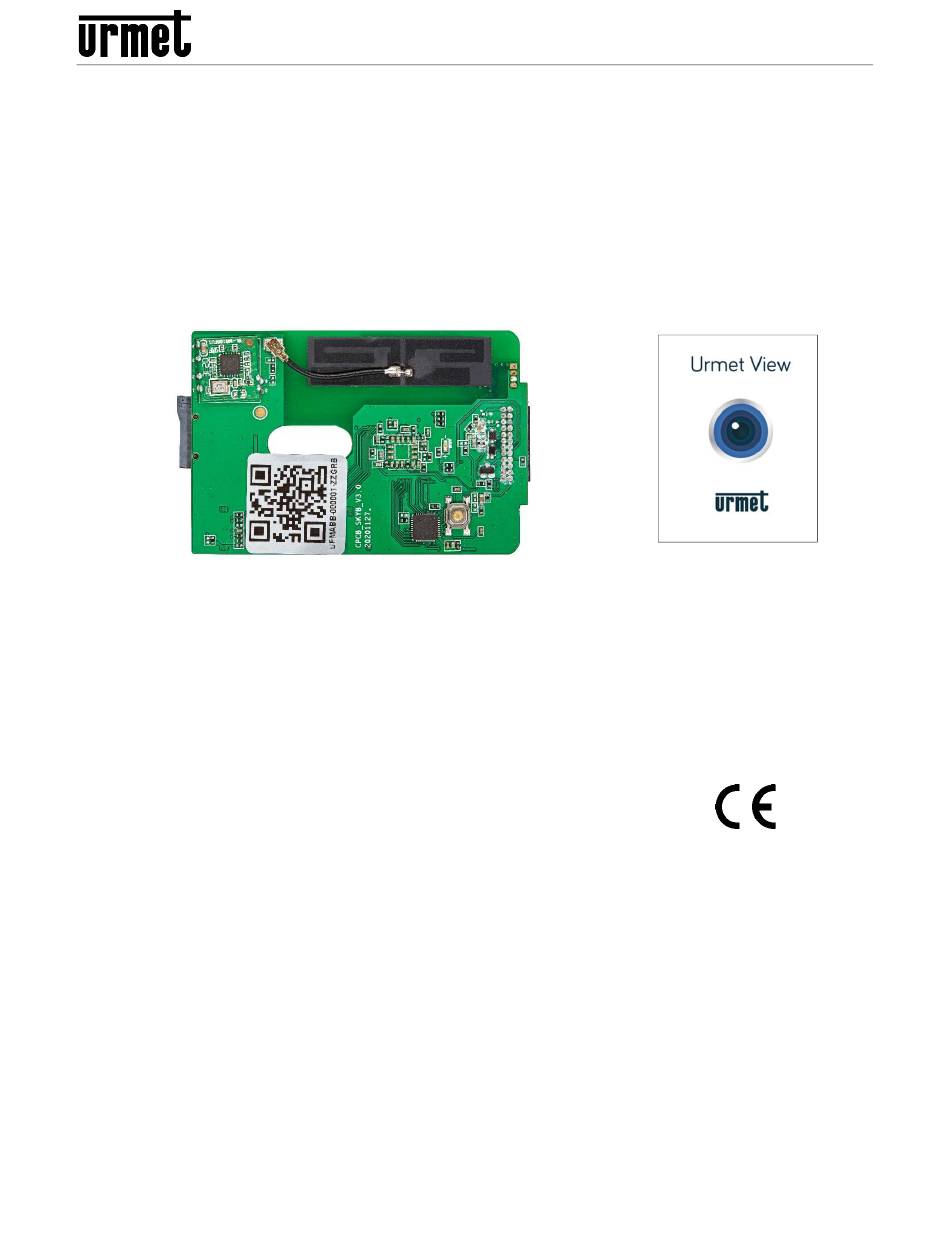

WIFI MODULE FOR 1730 KIT
APP
1730/67
INSTALLATION AND INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus 1730

Summary of Contents for urmet domus 1730

  • Page 1 Mod. 1730 DS1730-023 WIFI MODULE FOR 1730 KIT 1730/67 INSTALLATION AND INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    WIFI MODULE INSTALLATION .......................... 4 INSERTING THE SD CARD ............................5 WiFi MODULE RESET ............................... 5 Operating characteristics of the WiFi module......................6 URMETVIEW APP FOR 1730 DOOR PHONE SYSTEM ................... 6 INSTALLATION ON ANDROID ........................... 6 Pairing methods ................................7 5.1.1 WiFi module used as Access Point (AP Hotspot Connect) ..............

  • Page 3: Module 1730/67 Use

    MODULE 1730/67 USE The 1730/67 device can be used to send audio-video calls to a smartphone with Android (version 8 and higher) or iOS (version 10 or higher) operating system. The module is installed inside the 1730/1 video door phone and uses a WiFi Internet connection via an ADSL or 3G/4G router/modem.

  • Page 4: Wifi Module Installation

    WIFI MODULE INSTALLATION Before starting, unhook the video door phone from the bracket and disconnect the power supply. Follow steps 1 to 5 below. Note: If there is more than one video door phone, insert the WiFi module on the video door phone closest to the router but at least 1.5 m away from it.

  • Page 5: Inserting The Sd Card

    INSERTING THE SD CARD When installing the module, insert the SD card into the WiFi module before closing the door of the video door phone. With the video door phone already installed, follow steps 1 and 2 in the previous chapter to open the door of the video door phone. The SD card is not included.

  • Page 6: Operating Characteristics Of The Wifi Module

    There is no limit on the number of users who can use the call forwarding service on smartphones  If there is more than one video door phone on the same call, it is advisable to install the 1730/67 module on the video door phone closest to the router and at least 1.5 m from it.

  • Page 7: Pairing Methods

    With WiFi module used as an access point (method to be performed for the first pairing with a smartphone) Using the QR Code on the 1730/67 module or in the packaging or on another smartphone already configured for use in...

  • Page 8: Wifi Module Used As Access Point (Ap Hotspot Connect)

    WiFi module used as Access Point (AP Hotspot Connect) In this mode, the 1730/67 module temporarily acts as an Access Point. This pairing mode is required for the first installation of the 1730/67 module on a video door phone and for the first smartphone that is paired with that module.

  • Page 9: Pairing Using Qr Code

    5.1.2 Pairing using QR Code This mode is useful when there is already a paired smartphone and you want to configure a second or additional smartphone where the app has been installed. After choosing the QR Code Scan mode, you can scan the QR Code of the WiFi module or the QR Code present in the Modify Camera screen of another previously paired smartphone .

  • Page 10: Description Of The Home Screen

    DESCRIPTION OF THE HOME SCREEN Add device Refresh connection Bring up. Share. Delete video door phone Device name Connection status: Enable alerts Online/Offline Date and time of last connection Change device name and password Real-time image preview and display App settings List of received calls Displays images stored on the smartphone and SD...

  • Page 11: Recordings

    5.2.2 Recordings This area shows complete list images stored result call camera function. Video recordings are not available in this version and will be implemented in future versions. 5.2.3 Removing a system Proceed as follows if more than one video door phone system has been configured on the same app (e.g. town home and holiday home) and you want to delete one.

  • Page 12: Inbound Video Door Phone Call

    INBOUND VIDEO DOOR PHONE CALL Following a call from the outdoor station of your video door phone system, various messages will appear on the app according to the status of the smartphone. It is worth noting that the format and characteristics of the alerts signalling the incoming call depend on the configurations selected on your smartphone.

  • Page 13: Door Outdoor Station Camera

    OUTDOOR STATION CAMERA FUNCTION Open the app and update the connection status to ensure you are online . Touch the box in the square to activate audio- video communication with the outdoor station . The smartphone will display the screen with the audio-video recording from the camera and the available actions .

  • Page 14: Actions Available Following A Call Or Camera Function

    Check SD card usage data (total/available space) and/or format the card Restore default settings and restart the module Define how the date and time are displayed Display of system data and firmware version of WiFi module 1730/67 DS1730-023...

  • Page 15: Subscribe Setting

    SUBSCRIBE SETTING This menu can be used to: Enable or disable the reception of calls using the Enable button. Enable or disable the recording of videos (Trigger Record, function not yet available), images (Trigger Snapshot) and the sending of alerts (Linkage push) to all smartphones associated with the WiFi module, using the respective flags.

  • Page 16: Wireless Setting

    WIRELESS SETTING This menu can be used to change the network to which the WiFi module is connected. To change the WiFi network, make sure that the smartphone from which you are carrying out the operation is on the same network. If this is not the case, proceed by connecting the smartphone to the chosen WiFi network (Settings menu on the smartphone) and then changing the network on the module.

  • Page 17: System Setting

    SYSTEM SETTING This area can be used to reset of the WiFi device. This will delete all the pairings made and return the module to the default factory settings. DS1730-023...

  • Page 18: Installation On Ios

    INSTALLATION ON IOS After downloading the application to your iPhone, take care to: Enable the reception of alerts (essential for receiving calls), both in the menu of the smartphone and that of the app (see below). Allow the app to access photos, media content and files on the device, record audio, take photos and record video (future function).

  • Page 19: Pairing Methods

    WIFi module used as Access Point (AP Hotspot Connect) In this mode, the 1730/67 module temporarily acts as an Access Point. This pairing mode is required for the first installation of the 1730/67 module on a video door phone and for the first smartphone that is paired with that module.

  • Page 20: Pairing Using Qr Code

    The network created by the WiFi module appears on the app configuration page. Click on the "Next" button again starts pairing the app and the WiFi module . Once paired, the WiFi module no longer acts as a hotspot or access point and must be connected to a WiFi network to work.

  • Page 21: Manual Code Addition

    7.1.3 Manual code addition This mode has the same features as the previous one but requires the data to be entered manually. Proceed as described: Open the app on the previously configured phone and click on the Edit menu . On the Modify Device screen, the ID field displays the code of the WiFi module installed on the video door phone On the new user's app, select Manually Add mode, enter the same code in the ID field and enter the chosen password on the previously configured smartphone in the password field...

  • Page 22: Description Of The Home Screen

    DESCRIPTION OF THE HOME SCREEN Refresh connection Add device Device name given in the EDIT Bring up. Share. Delete paired video menu door phone Connection status: Enable reception of alerts on your Online/Offline smartphone connection Date and time of last Change device name and password.

  • Page 23: Recordings

    7.2.2 Recordings This area shows complete list images stored result call camera function. Video recordings are not available in this version and will be implemented in future versions. 7.2.3 Removing a system Proceed as follows if more than one video door phone system has been configured on the same app (e.g. town home and holiday home) and you want to delete one.

  • Page 24: Inbound Video Door Phone Call

    INBOUND VIDEO DOOR PHONE CALL Following a call from the outdoor station of your video door phone system, various messages will appear on the app according to the status of the smartphone. It is worth noting that the format and characteristics of the alerts signalling the incoming call depend on the configurations selected on your smartphone.

  • Page 25: Door Outdoor Station Camera

    OUTDOOR STATION CAMERA FUNCTION Open the app and make sure you are online, if not, update your connection status by pressing the icon in the top left corner or by scrolling down the page. Touch the highlighted box to activate audio-video communication with the outdoor station with address 1 in green .

  • Page 26: Second Door Outdoor Station Camera

    SECOND OUTDOOR STATION CAMERA FUNCTION To use the camera function on a second outdoor station if there is one, first press the video screen box and then press below Outdoor station. Number 2 will be highlighted in green. Press Outdoor station again to go back to the first button outdoor station with number 1 highlighted.

  • Page 27: Settings

    Define how the date and time are displayed Display of system data and firmware version of WiFi module 1730/67 10.1 SUBSCRIPTION SETTINGS This menu can be used to: Enable or disable the reception of calls using the ON button Enable or disable the recording of videos (Trigger Recording, function not yet available), images (Trigger Snapshot) and the sending of alerts (Linkage push) to all smartphones associated with the WiFi module, using the respective flags.

  • Page 28: 10.1.1 Time Planning

    10.1.1 Time planning Click on the highlighted button and select Custom to access the area for scheduling the call reception times and days In this area, the week is divided into boxes, each representing one hour, from Sunday to Saturday. The box can be green if call reception is enabled at that time of day or white if it is disabled.

  • Page 29: 10.3 Date/Time

    10.3 DATE/TIME The app can be used to set the date and time according to your needs and the time zone of your location by selecting the button in the box Manually enter date and time Enable and select an NTP server for automatic synchronisation 10.4 SYSTEM SETTINGS...

  • Page 30: Troubleshooting

    TROUBLESHOOTING Check that the green LED is lit on the WiFi card. If it is off, check that the card is inserted correctly. A device cannot be installed on the app Reset the WiFi module using the reset button. Exit and re-enter the procedure. Try pairing a new device (with QR code or manually) results in the device Exit and re-enter the app.
