Checkout Procedure; Replacement - Johnson Controls EDA-8000 Installation Sheet

Electric damper actuator

Hide thumbs Also See for EDA-8000:

Table of Contents

3. Connect the leads to Terminal Block 1 (TB1). See Figure 8.

Checkout

1. Apply power.

Procedure

2. Refer to the controller's manual for directions on checking out a newly

3. Install the plastic cover.

The EDA-8000 is not field repairable. For replacement, contact the

nearest Johnson Controls branch office or your wholesale distributor.

EDA-8000 Electric Damper Actuator

All manuals and user guides at all-guides.com

FT1

TB1

C W

CCW

CO M

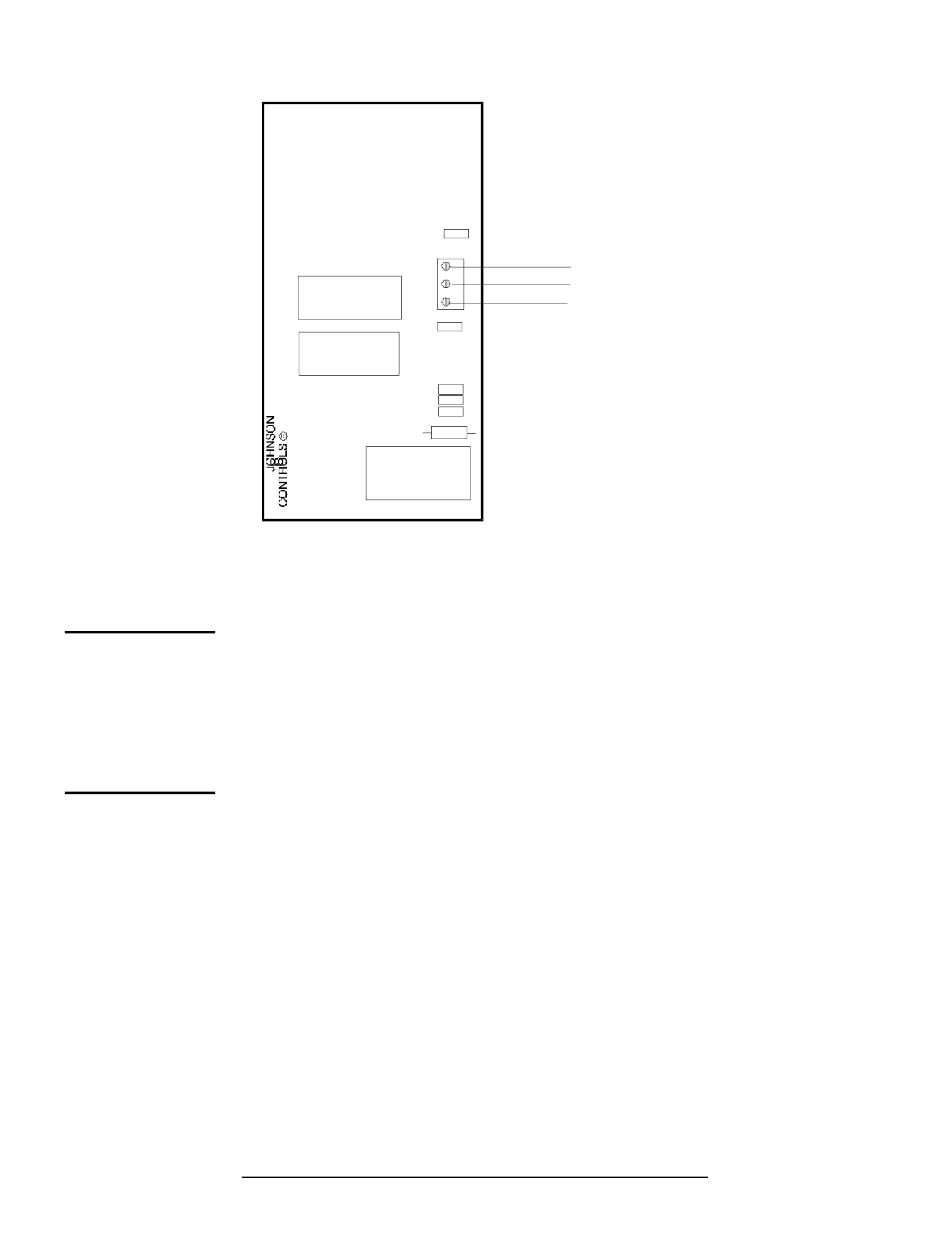

Figure 8: Standard Wiring Connection

installed device. Use the controller to drive the actuator fully CW and

CCW. Verify that the damper blades fully open and close.

Clockwise 24 VAC

Counterclockwise 24 VAC

Common
