7. Slide the release lever up to disengage the gears as shown in Figure 5.

8. Hold the release lever up and fully rotate the actuator coupler in the

Note: For example, if the damper closed by rotating the extension pin

Mounting

Note: The actuator can be mounted in any orientation.

1. Position the actuator onto the blade pin extension so that the actuator

2. Use of the actuator's center mounting slots with the isolation

EDA-8000 Electric Damper Actuator

All manuals and user guides at all-guides.com

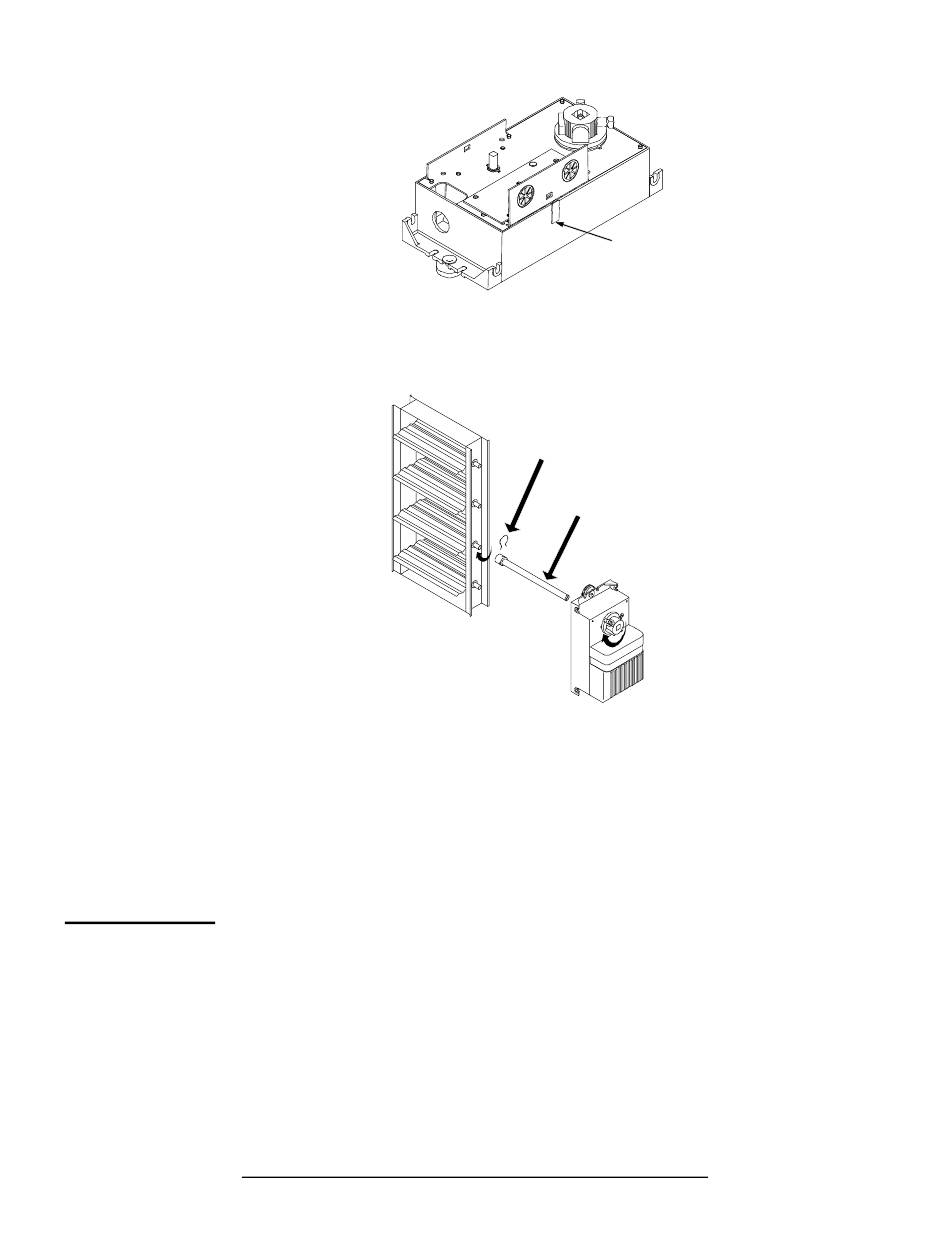

Figure 5: Release Lever Location

same direction as step 4.

CW, rotate the actuator coupler fully CW until the end stop is

reached. See Figure 6.

sits against the duct.

grommets is the preferred mounting arrangement. If the duct or wall

is less than 16 gauge (0.06 inch or 1.5 mm), use the Universal

Mounting Bracket (D-3153-105).

Release Lever

Retainer Clip

Drive Pin Extension

Figure 6: Rotation
