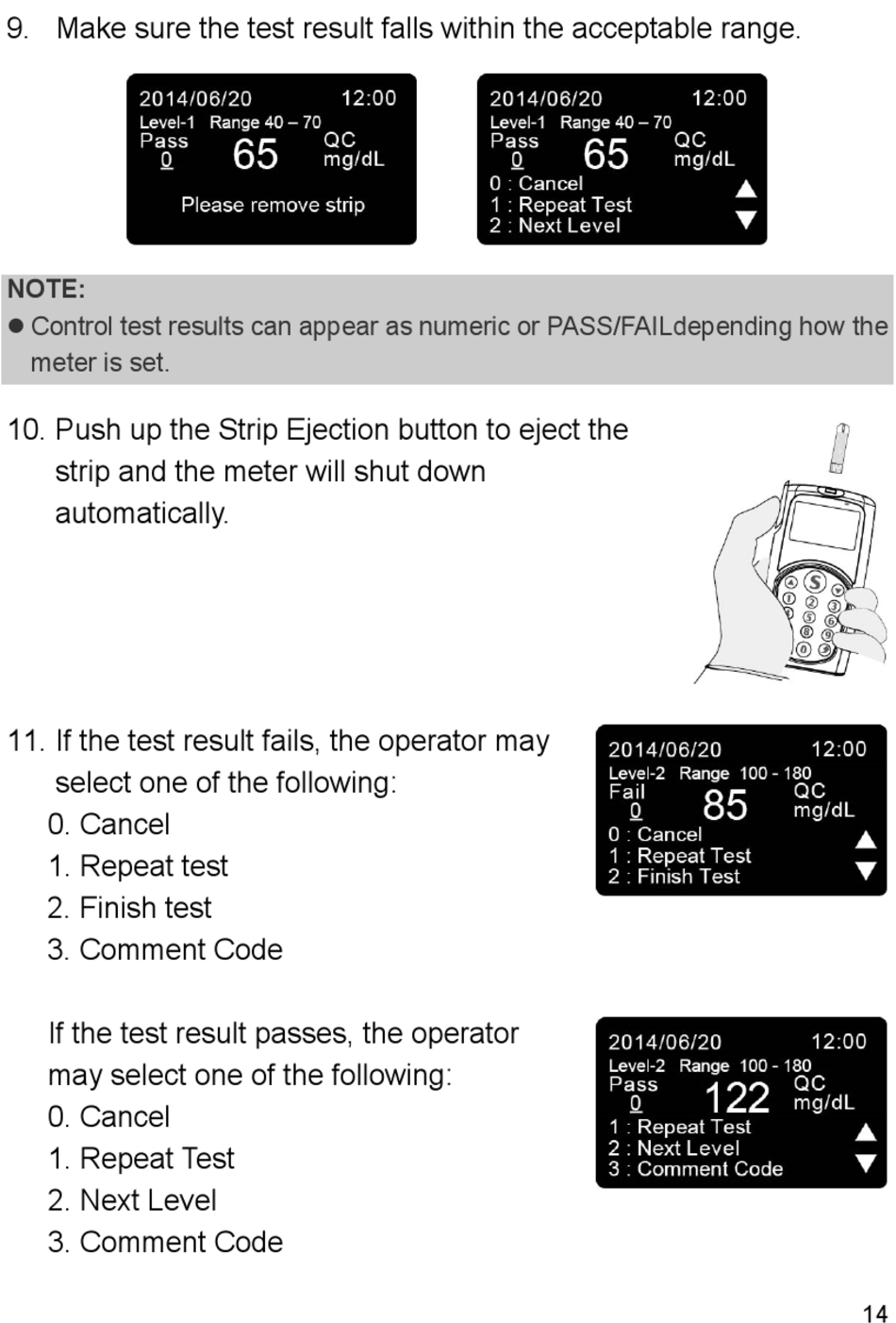

9. Make sure the test result falls within the acceptable range.
NOTE:
Control test results can appear as numeric or PASS/FAILdepending how the
meter is set.
10. Push up the Strip Ejection button to eject the
strip and the meter will shut down
automatically.
11. If the test result fails, the operator may
select one of the following:
0. Cancel
1. Repeat test
2. Finish test
3. Comment Code
If the test result passes, the operator
may select one of the following:
0. Cancel
1. Repeat Test
2. Next Level
3. Comment Code
14
