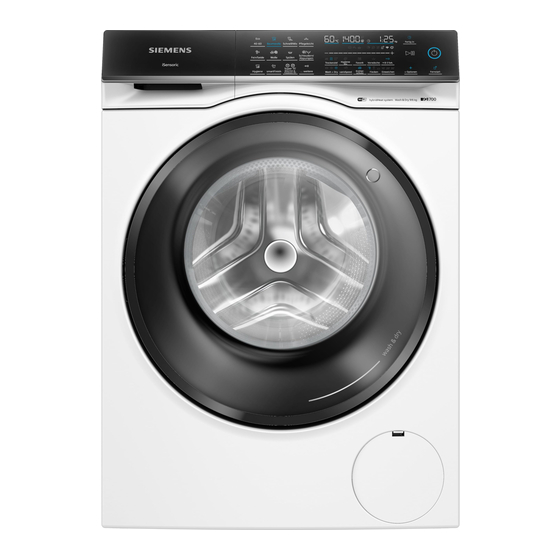

- Page 1 WN54C2070 Washer dryer EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 24 1.1 General information.... 4 9 Programmes ...... 27 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 31 1.4 Safe installation ...... 5 11 Laundry........ 31 1.5 Safe use ........ - Page 3 15 Home Connect ...... 35 22 Technical data ...... 58 15.1 Setting up the Home Con- 23 Declaration of Conformity .. 58 nect app ........ 35 15.2 Setting up Home Connect.. 35 15.3 Home Connect menu .... 36 15.4 Activating Wi-Fi on the ap- pliance ........ 36 15.5 Deactivating Wi-Fi on the appliance .......
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Connect the appliance to a power supply with alternating cur- ▶ rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- ▶... -
Page 6: Safe Use
en Safety If the power cord is too short and a longer one is not available, ▶ please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. Do not lift the appliance on your own. - Page 7 Safety en If the appliance or the power cord is damaged, immediately un- ▶ plug the power cord or switch off the fuse in the fuse box and turn off the water tap. Call customer services. → Page 55 ▶ An ingress of moisture can cause an electric shock. Only use the appliance in enclosed spaces.
- Page 8 en Safety WARNING ‒ Risk of explosion! Highly flammable objects such as lighters or matches may ignite during the drying process. Remove all highly flammable objects from any pockets in your ▶ laundry before the drying process. Unwashed laundry that has come into contact with solvents, oil, wax, wax remover, paint, grease or stain remover may ignite when drying is in progress.
-
Page 9: Safe Cleaning And Maintenance
Safety en CAUTION ‒ Risk of scalding! When you wash at high temperatures, the detergent solution gets hot. Do not touch the hot detergent solution. ▶ CAUTION ‒ Risk of chemical burns! If the detergent drawer is opened, detergent and care products may spray out from the appliance. Contact with eyes or skin may cause irritation. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the valve housing ▶ 2 Preventing material for the water inlet hose does not come into contact with its sur- damage roundings and is not subjected to any external forces. ATTENTION! Ensure that the inner diameter of ▶... -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Do not use cleaning products with Reduce the washing temperature for ▶ a high alcohol content. lightly and normally soiled laundry. Do not use hard scouring pads or ▶ a At lower temperatures, the appli- cleaning sponges. -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 31 Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. As a result, water stains may ATTENTION! remain in the appliance. - Page 13 Installation and connection en If the appliance is tilted at an angle 4.4 Removing the transit greater than 40°, residual water may bolts leak out of the appliance and cause material damage. The appliance is secured for trans- Tilt the appliance carefully. portation using transit bolts on the ▶...
-
Page 14: Connecting The Appliance
en Installation and connection Remove the power cable from the Push the 4 cover caps downwards. holder. Note: To install the transport locks to Remove the 4 sleeves. transport the appliance, perform these steps again in the reverse or- der. 4.5 Connecting the appliance Connecting the water inlet hose WARNING Risk of electric shock! -
Page 15: Aligning The Appliance
Installation and connection en Insert the mains plug of the appli- Water outlet connection types ance's power cable in a socket This information is intended to help nearby. you to connect this appliance to the The connection details of the appli- water outlet. - Page 16 en Installation and connection Use a WAF 17 wrench to tighten the lock nuts against the housing until they are hand-tight. In doing so, hold the foot tight and do not adjust its height.
-
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Maintenance flap for the drain Water inlet hose → Page 14 pump → Page 40 Door... -
Page 18: Control Panel
en Familiarising yourself with your appliance Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash and soaking 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. 5.4 Operating logic Programmes → Page 27 Buttons and display... - Page 19 Familiarising yourself with your appliance en tings by pressing the buttons. The ac- To display the additional buttons, tivated settings are highlighted in col- briefly press + Optionen. our on the display. ATTENTION! Pressing on the display with force The display shows all additional may cause damage.
-
Page 20: Before Using For The First Time
en first time Press the selection buttons Add washing powder that contains ▶ → Page 24 or swipe over the a bleaching agent to compart- ment II. scale with your finger . To prevent foaming, use only half The display shows the setting value. -
Page 21: Display
Display en 7 Display The display shows the current settings, options or relevant information. Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. 8h Program end time → "Buttons", Page 24 Recommendation for the maximum load capacity for the selected program in kg. - Page 22 en Display Display Description Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ¡ ance has been operated. → "Deactivating the childproof lock", Page 34 The crease-reduction function is activated. → "Buttons", Page 24 Washing with subsequent drying is activated. → "Buttons", Page 25 Drying is activated.
- Page 23 Display en Display Description Lights up: The appliance is connected to your home ¡ network via Wi-Fi. Flashes: The appliance is trying to connect to your ¡ home network via Wi-Fi. → "Home Connect ", Page 35 Settings that are not available on the appliance have been set via the Home Connect app.
-
Page 24: Buttons
en Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Button Selection Description (mains Switch on Switch on the appliance or put it in ¡ switch) standby mode. Standby mode ¡ Multiple selection To change a setting, press the selection button until the display shows the required setting. - Page 25 Buttons en Button Selection Description Einweichen Activate or deactivate soaking for 10, ¡ 20 or 30 minutes. ¡ Before the main wash cycle starts, the ¡ laundry remains in the water for longer. For laundry with particularly stubborn soiling. 3 Sek. Activate → "Childproof lock", Page 34 ¡...
- Page 26 en Buttons Button Selection Description Fernstart Activate → "Remote start", Page 36 ¡ Deactivate ¡ Open the ¡ Home Connect menu...
-
Page 27: Programmes
Programmes en 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. Max. load load (kg) (kg) Wash Dry- Baumwolle Wash hard-wearing items made from cotton, linen or blended fabrics. Also suitable as a short programme for nor- mally soiled laundry when you activate varioSpeed. - Page 28 en Programmes Programme Description Max. Max. load load (kg) (kg) Wash Dry- Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag. Programme setting: Max. 40 °C ¡ Max. 800 rpm ¡ Wolle Hand- or machine-washable items that are made from wool or contain wool.
- Page 29 Programmes en Programme Description Max. Max. load load (kg) (kg) Wash Dry- Programme setting: Max. 60 °C ¡ Max. 1400 rpm ¡ smartFinish Reduce creases and airborne odours in suits, – shirts, down-filled fabrics, outdoor clothing and items made of cotton, cashmere or silk. Tip: To prevent creasing, remove the laundry immediately after the programme has ended.
- Page 30 en Programmes Programme Description Max. Max. load load (kg) (kg) Wash Dry- Tip: Energy- and time-optimised programme using hybrid technology. Programme setting: Max. 60 °C ¡ Max. 1400 rpm ¡ varioSpeed activated Drying not possible Washing not possible...
-
Page 31: Accessories
Accessories en 10 Accessories Use original accessories. These have been made especially for your appliance. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WZ10131 tension or AquaStop (approx. 2.50 m). Fixing brackets Improves the stability of the appliance. WX975600 Elbow Secure the water outlet hose in place. -
Page 32: Basic Operation
en operation 13.3 Adjusting the pro- operation 13 Basic operation gramme settings operation Requirement: A programme is set. 13.1 Switching on the appli- → "Setting a programme", Page 32 ance Adjust the programme settings. ▶ → "Buttons", Page 24 Note: If you switch the appliance on the first time after you have connec- Observe the information about op- ted it to the electrical system, the erating logic → Page 18. -
Page 33: Opening The Door
operation en 13.5 Opening the door 13.7 Adding detergent and care product Press on the edge of the door. Note: Observe the information about detergents and care products → Page 31. Pull out the detergent drawer. Pour in detergent. → "Detergent drawer", Page 17 If required, add the care product. Push in the detergent drawer. -
Page 34: Cancelling The Washing Programme
en Childproof lock Press Wipe the rubber gasket dry and re- move any foreign objects. 13.10 Cancelling the washing programme Press Open the door. The appliance door remains locked for safety reasons if the temperature and water levels are high. – If the temperature is high, start ... -
Page 35: Home Connect
Home Connect en 15.1 Setting up the Home Connect 15 Home Connect Home Connect app This appliance is network-capable. Home Connect Install the Home Connect app on Connecting your appliance to a mo- your mobile device. bile device lets you control its func- tions via the Home Connect app, ad- just its basic settings and monitor its operating status. -
Page 36: Home Connect Menu
en Home Connect 15.3 Home Connect menu 15.5 Deactivating Wi-Fi on the appliance The Home Connect menu contains all of the Home Connect settings. Requirements The Home Connect menu is called ¡ Calling up the Home Connect menu → "Calling up the Home Connect Press and hold Fernstart for at ▶ menu", Page 36 least 3 seconds. -
Page 37: Data Protection
Home Connect en Press Fernstart. ▶ lights up and the appliance is enabled for remote start via the Home Connect app. Deactivating remote start Press Fernstart. ▶ goes out. 15.8 Data protection Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following... -
Page 38: Overview Of The Basic Settings
en Basic settings 16 Basic settings You can configure the basic settings for your appliance to meet your needs. 16.1 Overview of the basic settings Posi- Basic setting Selection Description tion End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 39: Changing The Basic Set- Tings
Cleaning and servicing en side of the appliance 16.2 Changing the basic set- → "Accessories", Page 31 or with tings washing powder that contains bleach. To call up the basic settings, press and hold + Optionen for approx. 3 17.2 Cleaning the detergent seconds. drawer The display shows Select the required basic setting. -
Page 40: Cleaning The Drain Pump
en Cleaning and servicing Clean the detergent drawer and in- 17.3 Cleaning the drain pump sert with water and a brush, and Clean the drain pump regularly, at then dry them. least once a year, as well as in the event of faults, e.g. blockages or rat- tling noises. - Page 41 Cleaning and servicing en Take the drain hose out of the Insert the drain hose into the holder. holder. CAUTION - Risk of scalding! Cleaning the drain pump When you wash at high temperat- Requirement: The drain pump is ures, the detergent solution gets empty.
-
Page 42: Cleaning The Intake Opening In The Rubber Gasket
en Cleaning and servicing Ensure that both impellers can Insert and close the service flap. turn. 17.4 Cleaning the intake Insert the pump cap. opening in the rubber gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. Open the appliance door. -
Page 43: Troubleshooting
Troubleshooting en 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 44 en Troubleshooting Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 45 Troubleshooting en Fault Cause and troubleshooting flashes. Laundry is caught in the door. Remove any trapped laundry. ▶ flashes. The automatic voltage control system detects an un- authorised voltage under-usage. No remedial action possible. ▶ Note: If the power supply is stable, the programme continues to run as normal.
- Page 46 en Troubleshooting Fault Cause and troubleshooting The drying time is too Run the Baumwolle 90°C programme without ▶ long. any laundry or detergent. Creasing. The load is too large. The laundry lies in the drum for too long after drying. Remove the laundry from the drum as soon as the drying programme has finished.
- Page 47 Troubleshooting en Fault Cause and troubleshooting The door cannot Open the door using the emergency release. ▶ be opened. → "Emergency release", Page 54 The water is not drain- Drain pipe or water outlet hose is blocked. ing. Clean the drain pipe and the water outlet hose. ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting The spin cycle runs The unbalanced load detection system eliminates an several times. imbalance by repeatedly redistributing the laundry. Not a fault – no action required. ▶ Note: When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
- Page 49 Troubleshooting en Fault Cause and troubleshooting High spin speed not Note: Where possible, mix large and small items in reached. the drum. Different sized items of laundry distribute themselves better during the spin cycle. Start the Schleudern programme. ▶ The spin programme Drain pipe or water outlet hose is blocked.
- Page 50 en Troubleshooting Fault Cause and troubleshooting The spin result is not The unbalanced load detection system has interrupted satisfactory. The laun- the spin cycle because the laundry is unevenly distrib- dry is too wet/too uted. damp. Redistribute the laundry in the drum. ▶...
- Page 51 Troubleshooting en Fault Cause and troubleshooting The programme dura- The programme operation is optimised electronically. tion changes during This may change the programme duration. the wash cycle. Not a fault – no action required. ▶ The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry.
- Page 52 en Troubleshooting Fault Cause and troubleshooting The laundry is too Water tap is closed during the drying phase. damp. Make sure that the water tap also remains open ▶ during the drying phase. The ambient temperature is greater than 30 °C. Ensure that the ambient temperature is below 30 ▶...
- Page 53 Troubleshooting en Fault Cause and troubleshooting Water inlet noise dur- Drying phase requires water. ing the drying phase. Not a fault. Make sure that the water tap also remains open during the drying phase. Odours have formed Humidity and detergent residue may promote the in the appliance.
-
Page 54: Emergency Release
en Transportation, storage and disposal 18.1 Emergency release 19.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 40 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 55: Disposing Of Old Appliance
Customer Service en 19.4 Disposing of old appli- 20 Customer Service ance Function-relevant genuine spare parts Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! -
Page 56: Aqua-Stop Guarantee
en Customer Service Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. 20.2 AQUA-STOP guarantee In addition to warranty claims against the seller under the purchase agree- ment and in addition to our manufac- turer's warranty, we offer compensa- tion under the following conditions. -
Page 57: Consumption Values
Consumption values en 21 Consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The values specified for programmes other than Eco 40-60 are only given as a guide and were determined in accordance with the applicable stand- ards EN60456 and EN62512. - Page 58 ¡ 2014/53/EU. standby mode A detailed RED Declaration of Con- (Wi-Fi): 2.00 W formity can be found online at Water pressure Minimum: ¡ siemens-home.bsh-group.com 100 kPa among the additional documents on (1 bar) the product page for your appliance. Maximum: ¡ 1000 kPa (10 bar) Length of the wa- 150 cm...
- Page 59 Max. 100 mW requirements. 5-GHz band (5150–5350 MHz + A detailed Declaration of Conformity 5470–5725 MHz): max. 150 mW can be found online at siemens- home.bsh-group.com/uk/ among the additional documents on the product page for your appliance. UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only.
- Page 60 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
