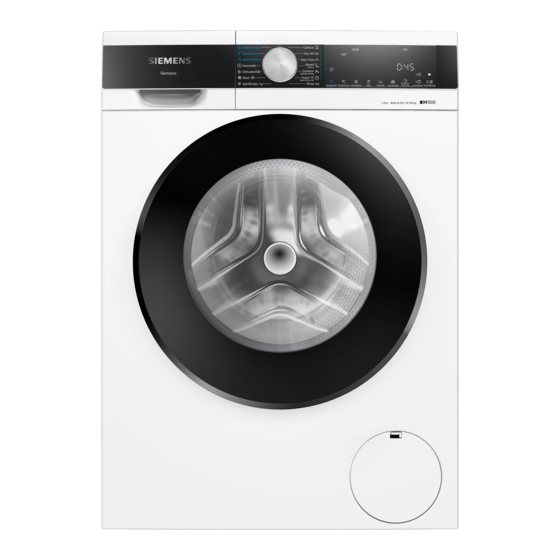

- Page 1 WN54G2A0EU WashDryer EN Instructions for use Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Refer to the Digital User Guide for more information. Table of contents 1 Safety........4 8 Buttons ........24 1.1 General instructions .... 4 9 Drying purpose ........26 1.2 Destination of the 9.1 Changing drying target....26 device ..........4 1.3 Restriction of users .. - Page 3 16 Intelligent dosing system ..35 16.1 Start program with intelligent dosing system ..35 16.2 Filling the dosing reservoir ..36 16.3 Basic dosing amount ..37 17 Basic settings ....38 17.1 Overview of the basic settings ........ 38 17.2 Changing basic settings..
-
Page 4: Safety
Safety 1 Safety Please observe the following safety precautions. 1.1 General instructions ¡Read these instructions for use carefully. ¡Keep the instructions for use and product information for later for use or for subsequent owners. ¡Do not connect the device in case of transport damage. 1.2 Destination of the device Only use the device: ¡to wash machine-safe textiles and wool for hand washing... -
Page 5: Safe Installation
Safety 1.4 Safe installation WARNING ‒ Risk of electric shock! Improper installations are dangerous. ▶ Only connect and use the device according to the information on the rating plate. ▶ Only connect the device to an alternating current mains via a properly installed earthed socket. - Page 6 Safety ▶ Use only adapters and power cords approved by the manufacturer. ▶ If the power cord is too short and a longer power cord is not available, contact an electrical specialist to adjust the home installation. WARNING ‒ Risk of injury! The high weight of the device can cause injuries when lifting.
-
Page 7: Safer Use
Safety 1.5 Safer use WARNING ‒ Risk of electric shock! A damaged device or power cord is dangerous. ▶ Never use a damaged device. ▶ Never pull on the power cord to disconnect the device from the mains. Always pull the plug on the power cord. ▶... - Page 8 Safety WARNING ‒ Risk of explosion! Coal dust or flour in the vicinity of the appliance can lead to explosions. ▶ Keep the area around the device clean during use. WARNING ‒ Risk of poisoning! Washing and care products can lead to poisoning if ingested. ▶...
-
Page 9: Safe Cleaning And Maintenance
Safety ▶ If drying is stopped prematurely, immediately remove and spread out the laundry. CAUTION ‒ Risk of injury! The cover plate may break when climbing or clambering onto the device. ▶ Do not climb or clamber onto the device. The appliance may tip over when sitting or leaning on the open door. - Page 10 Safety ▶ If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, its service agent or another qualified person to avoid any hazard. Penetrating moisture can cause a shock. ▶ Do not use a steam cleaner, high-pressure cleaner, hoses or nozzles to clean the device.
-
Page 11: Avoiding Material Damage
Avoid material damage ▶ Install the valve housing of the Material damage avoid material damage water supply hose without contact avoid with the environment and do not expose it to external forces. Avoid material damage ▶ Make sure that the inside diameter Incorrect dosage of fabric softeners, of the water tap is at least 17 mm. -
Page 12: Environmental Protection And Saving
Environmental protection and saving ▶ Do not use cleaning agents Reduce washing temperature for containing strong alcohol. lightly and normally soiled laundry. ▶ Do not use hard scouring or aAt low temperatures it consumes dishwashing sponges. device uses less energy. For light ▶... -
Page 13: Energy Saving Mode
Set up and connect 3.3 Energy saving mode 4.2 Contents of the package If you do not operate the device for a After unpacking, check all parts for long time, it will automatically switch transport damage and the to energy saving mode. completeness of the delivery. -
Page 14: Protections
Set up and connect WARNING Staging location Requirements Risk of injury! The device al- Kitchenette When used on a pedestal, the device borrow under one may tip over. continuous work ▶ The device feet for commissioning place sheet, must be placed on a base absolutely that fixed with the with the mountings adjacent... -
Page 15: Connecting The Device
Set up and connect Loosen and remove all bolts of the Place the 4 cover caps. 4 transport locks with an open-end wrench with a spanner width of Slide the 4 cover caps downwards. Remove the mains connection cable from the holder. - Page 16 Set up and connect Connect the water supply hose to Plastic stand The water drainage the tap (26.4 mm = 3/4"). pipe with rubber feeding tube with a bend run muff fix and drill gene. → "Accessories", Page 31 Connect the device electrically Remark:Your home electrical installation for this appliance must comply with local legal and safety...
-
Page 17: Adjusting The Device
Set up and connect Tighten the lock nuts hand-tight 4.6 Adjusting the device against the housing with a wrench To reduce noise and vibration and to with a spanner width of 17. avoid walking of the device, place the device horizontally. Turn the lock nuts clockwise with a wrench with a spanner width of Hold the device foot and do not... -
Page 18: Getting To Know Your Device
Get to know your device Get to know your device w g et to know device to know your device 5.1 Device Here you will find an overview of the components of your device. Depending on the device type, details in the image may differ, e.g. the color and other details. -
Page 19: Control Panel
Get to know your device maintenance products and the Manual dosing compartment information in the program descriptions. : dosing reservoir for fabric softener : liquid detergent dispenser 1 2 3 5.3 Control panel You can use the control panel to set all functions of your device and obtain information about its operating status. -
Page 20: Before First Use
Before first use Start the first washing cycle or set Before first use about it first the program selector to switch off the appliance. P repare the device for use. first → "The Ministry in Essentials", Page 32 6.1 Start the washing cycle without laundry Your device was thoroughly checked before leaving the factory. -
Page 21: Display
Display Display isplay isplay On the display you will see the current setting values, selection options or instructions. singing lyrics. Example display indication Description Indication 0:40 Expected program duration or remaining time of the program in hours and minutes. + 8h Program end time →... - Page 22 Display Description Indication To rinse Program status Centrifuge Program status Program end Program status To dry Program status Anti wrinkle Program status ¡lights up: the child lock is activated. ¡flashes: the child lock is activated and the device was served. →...
- Page 23 Display Description Indication ¡lights up: the intelligent dosing system for laundry softer is activated. ¡flashes: the minimum fill level of the dosing container is undershot. → "Intelligent dosing system", page 35 (fabric softener) 50 ml Basic dosage amount for the detergent or fabric softener. →...
-
Page 24: Buttons
Buttons Buttons studs The selection of the program settings depends on the setting studs program. Knob Description Choice - 90 Adjust the temperature. Set ℃Temperature temperature in °C. SpinSpeed - 1400 Adjust the spin speed or deactivate spinning. Set spin speed in rpm. The selection drains the water and deactivates the spin cycle. - Page 25 Buttons Knob Description Choice Less Iro ¡activate Activate or deactivate washing with less ning crease. ¡deactivate To reduce creasing in the laundry, the spin process and spin speed are adjusted. Remark:The laundry has a higher residual moisture after washing. Hang the laundry immediately after washing to reduce wrinkles.
-
Page 26: Drying Purpose
Drying purpose rygoal Drying purpose In some programs a drying target is specified. The drying target determines r ygoal how dry or damp your laundry is at the end of the program. Laundry Drying result Drying purpose The laundry is dry. Multi-layered thick laundry that is difficult to dry. -
Page 27: Programs
Programs 0 Programs p rograms Programs Remark:The care labels of the laundry give you additional instructions for program selection. Max. max. Program Description bela- bela- thing thing (kg) (kg) Dro- Used to be- gene 10.0 Cottons (Ka- Wash sturdy textiles made of cotton, linen and mixed fibres. - Page 28 Programs Max. max. Program Description bela- bela- thing thing (kg) (kg) Dro- Used to be- gene EasyCare Wash textiles made of synthetic and mixed fibres. (crease resistant) Program setting: ¡max. 60 °C ¡max. 1400 rpm Mixed Fa- Wash textiles made of cotton, linen, synthetic brics (Mix) materials and mixed fibres.
- Page 29 Programs Max. max. Program Description bela- bela- thing thing (kg) (kg) Dro- Used to be- gene Program setting: max. 1400 rpm Outdoor Wa- Wash outdoor textiles with membrane technology and water-repellent equipment. terproofing Suitable for washing with subsequent (Outdoor Im- pregnate) impregnation.
- Page 30 Programs Max. max. Program Description bela- bela- thing thing (kg) (kg) Dro- Used to be- gene – Drying synthetic and mixed fabric textiles. Gentle Dry(Soft dry- Gentle program with low temperatures for gene) sensitive textiles. – Dry cotton and linen textiles. Intensive Intensive program for temperatures for sturdy textiles.
-
Page 31: Accessories
accessories 1 Accessories accessories e use only original accessories. accessories These are tailored to the device. Remark:Some accessories are available in other colours. Please contact the → "Service", Page 59 Usage Order number Mounting brackets Improve the stability WX975600 of the device. Bend Fix the water drain hose. -
Page 32: Agent
Detergent and laundry care products Turn the program selector and set 3 Detergent and laundry detergent it to the desired program. a sh laundry care products → "Programs", Page 27 care product Adjust the program settings if desired. information from the manufacturer about laundry care products... -
Page 33: Dosing Detergent And Laundry Care Products
The Ministry in essence If the display shows, the laundry is 14.5 Dosing detergent and not being spun. The water is laundry care products pumped out after rinsing. For programs where intelligent dosing is not possible or desired, you can Comments dose the detergent manually. -
Page 34: Cancel Washing Program
Child lock Remark:If you want to add laundry, The program Spin (Spin)or set a follow the instructions on the drain program. display. → "Display", page 23 → "Programs", Page 27 Open the door. StartlReloadto press. Add or remove the laundry. 14.12 Taking out laundry Close the door. -
Page 35: Deactivating Child Lock
Intelligent dosing system aThe controls are container for manual dosing. → "Adding detergent and laundry care blocked. aThe child lock remains even after products", page 33 If you want to dose manually for a set switching of the device and activated in program, please observe the the event of a power failure. -
Page 36: Filling The Dosing Reservoir
Intelligent dosing system If desired, the basic dosing quantity Open the filling lid. → Page 37 to adjust. Adjust the program settings if desired. → "Adjust program settings", page Start the program. → "Starting the program", Page Remove the laundry. →... -
Page 37: Basic Dosing Amount
Intelligent dosing system 16.3 Basic dosage amount The basic dosage amount is based on the information provided by the detergent manufacturer, the water hardness and the degree of soiling of the laundry. Always set a basic dosing amount that is adapted to a standard load of 4.5 kg. -
Page 38: Basic Settings
Basic settings 7 Basic settings basic settings Y OU you can set the basic settings of your device according to your wishes. basic settings 17.1 Overview of the basic settings Program- Value Description Basic settings ling position Signal 0 (off) Adjust the volume of the signal 1 (soft) after the end of the program. -
Page 39: Changing Basic Settings
Cleaning and maintenance 17.2 Change basic settings cleaning maintenance 8 Cleaning and maintenance loves Set the program selector to clean and maintain your device position 1. cleaning maintenance carefully to ensure that it continues to work well for a long time. 18.1 Clean drum CAREFULLY Risk of injury! -
Page 40: Cleaning The Detergent Drawer
Cleaning and maintenance 18.2 Cleaning the detergent Remove the pump unit. drawer If you want to replace liquid detergent or fabric softener in the dosing reservoir with another product or the detergent drawer is dirty, clean the detergent drawer. The pump unit contains electrical components. -
Page 41: Cleaning The Drain Pump
Cleaning and maintenance Clean the pump unit with a damp cloth. Clean the housing of the detergent drawer in the appliance. Clean the detergent drawer and lid with a soft, damp cloth or hand shower. Slide the detergent drawer into the appliance. - Page 42 Cleaning and maintenance Open and remove the service door. CAUTION - Risk of burns!The soap becomes hot when washing at high temperatures. ▶ Do not touch the hot soapy water. Pull off the cap to allow the washing solution to flow into the collection container.
- Page 43 Cleaning and maintenance Clean the drain pump Install the pump cover. Required:The drain pump is empty. → Page 41 Since there may still be residual water in the pump, carefully remove the lid. Tighten the pump cover as far as it will go.
-
Page 44: Cleaning The Inlet Opening In The Rubber Sleeve
Cleaning and maintenance 18.4 Clean the inlet opening in the rubber sleeve Regularly check the inlet opening in the rubber sleeve for blockages and clean the inlet opening. Open the appliance door. Clear the blockages from the inlet opening. Remark:Do not use pointed or sharp objects. -
Page 45: Troubleshooting
Troubleshooting 9 Troubleshooting resolve disruptions You can resolve minor faults with the device yourself. Please consult before you resolve disruptions contact customer service for information on troubleshooting. This way you avoid unnecessary costs. WARNING Risk of electric shock! Improper repairs are dangerous. - Page 46 Troubleshooting Cause and troubleshooting Malfunction "E:30 / -80" Drain pipe or water drain hose is kinked or trapped. ▶ Make sure that the drain pipe and water drain hose are not kinked or trapped. Water drain hose is connected too high. ▶...
- Page 47 Troubleshooting Cause and troubleshooting Malfunction "E:30 / -10" and/or Remark:With the error message, the device starts a pump-down procedure. First wait approx. 5 minutes until the pumping procedure is completed. To reset the error message, switch off the device. Switch the device back on. If the error message appears again, contact customer service.
- Page 48 Troubleshooting Cause and troubleshooting Malfunction Drum cleaning required. → "Clean drum", page 39 ▶ "H:95" lights up alternately Water pressure is low. lend with End. ▶ → "E:30 / -10 and/or ", Page 47 All other error codes. Malfunction Switch the device off and on again. If the message appears again, disconnect the device from the mains for at least 30 seconds by unplugging it or switching off the corresponding fuse in the fuse...
- Page 49 Troubleshooting Cause and troubleshooting Malfunction Power supply has failed. Device does not work. Check whether the interior lighting or other ▶ appliances are functioning. StartlReloadwas not pressed. Program does not start. ▶ Press StartlReload. Door is not closed. ▶ Close the door. Child protection is activated.
- Page 50 Troubleshooting Cause and troubleshooting Malfunction Drain pipe or water drain hose is clogged. Washing water is not pumped out. ▶ Clean the drain pipe and the water drain hose. Drain pipe or water drain hose is kinked or trapped. ▶ Make sure that the drain pipe and water drain hose are not kinked or trapped.
- Page 51 Troubleshooting Cause and troubleshooting Malfunction Start several times The imbalance control system eliminates the imbalance by distributing the laundry several times. with centrifugation. ▶ No error - no action necessary. Remark:When loading, place large and small items of laundry together in the drum if possible. Laundry of different sizes distributes better during spinning.
- Page 52 Troubleshooting Cause and troubleshooting Malfunction High spin speed Low spin speed is set. rental is not Set a higher spin speed for the next wash. ▶ achieved. Less Ironingis activated. ▶ Choose a suitable program for the type of textile. Imbalance control system compensates for imbalance by reduced spin speed.
- Page 53 Troubleshooting Cause and troubleshooting Malfunction Basic dosing amount not adjusted. Insufficient cleaning effect. If intelligent dosing is activated, adjust the basic ▶ dosing amount → Page 37 On. Detergent or care product has thickened in the dosing reservoirs of the intelligent dosing system. Check whether the detergent used is suitable.
- Page 54 Troubleshooting Cause and troubleshooting Malfunction Centrifuge result is Remark:If possible, place large and small items of not satisfied- laundry together in the drum. Laundry of different sizes distributes better during spinning. heid. The laundry is too wet / too damp. ▶...
- Page 55 Troubleshooting Cause and troubleshooting Malfunction Detergent residue Empty the dosing reservoirs. → "Cleaning the detergent drawer", page the dry laundry. Clean the dosing reservoirs. Refill the dosing reservoirs. → "Filling the dosing reservoir", page 36 Basic dosing amount not set correctly. When intelligent dosing is activated, reduce the basic ▶...
- Page 56 Troubleshooting Cause and troubleshooting Malfunction Laundry is too damp. Warm laundry feels damper at the end of the program than it actually is. Remove the laundry from the drum immediately after drying. Spread the items out to let them cool. Drying target not adjusted.
- Page 57 Troubleshooting Cause and troubleshooting Malfunction Long, rumbling Intelligent dosing system doses detergent or care loudly before starting product. the wash or fabric ▶ No error - normal operating noise. softening cycle. Short buzzing sound Intelligent dosing system performs a function test. after switching on ▶...
-
Page 58: Emergency Release
Transport, store and dispose of Dismantle the hoses. 19.1 Emergency release Empty the dosing containers. Unlock door 20.2 Installing transport protection Required:The drain pump is empty. → Page 41 devices NB!Running water can lead to To avoid transport damage, secure property damage. -
Page 59: Disposal Of Your Old Device
Service department 20.4 Disposal of your old sche equipment (waste electrical and electronic device equipment - WEEE). Valuable raw materials can be reused The directive sets the through environmentally friendly framework for take-back disposal. valid in the EU and processing of old equipment. -
Page 60: Aqua-Stop Warranty
Service department ¡on the inside of the bottom When you go on holiday for a few weeks, the tap needs to be turned holding valve. ¡at the back of the device off. comb. To quickly find your device information and service telephone numbers, you can write down the information. -
Page 61: Consumption Values
Consumption values usability values 2 Consumption values usability values The following information is provided in accordance with the EU Ecodesign Regulation. The specified values for programs other thanEco 40-60 guideline values and are just were determined in accordance with the applicable standards EN60456 and EN62512. -
Page 62: Technical Data
Technical data Pro- Maxi Program Bela- Ener- Water- Centri- Rest- far- male gram- giever- fugue thing moisture- (kg) maduur tempe- speed semi- usage (l/ (h:min) (kWh/ cycle) rature at (%) number (t/ cycle) (°C) 5 min) 10.0 4:25 1400 1,500 105.0 50.00 Cottons... - Page 63 Technical data Length of the 150 cm water supply feeding tube Length of the 150 cm water drain hose Length of the 210 cm mains connection cable You can find more information about your model on the Internet at https:// eprel.ec.europa.eu/ .
- Page 64 Manufactured by BSH Hausgeräte GmbH under the trademark license of Siemens AG BSH Hausgeräte GmbH Carl-Wery-Strasse 34 81739 Munich, GERMANY siemens-home.bsh-group.com *9001846724* 9001846724 (030720)
