Summary of Contents for Würth WDM 6-22

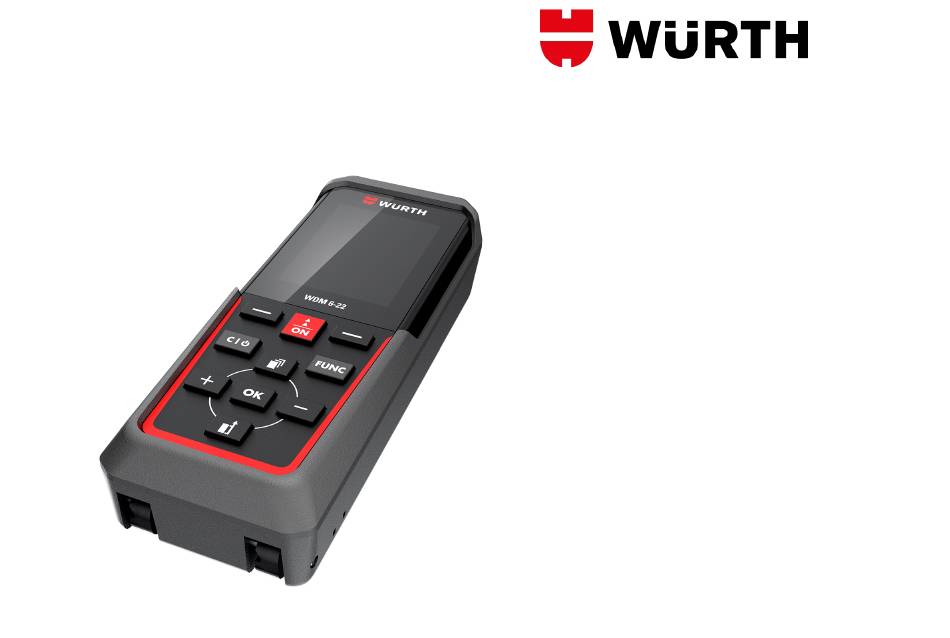

  • Page 1 WDM 6-22...

  • Page 2: Table Of Contents

    Overview Technical data Instrument Set-up Settings Operations Message Codes Care Warranty Safety instructions Würth WDM 6-22 | EN...

  • Page 3: Overview

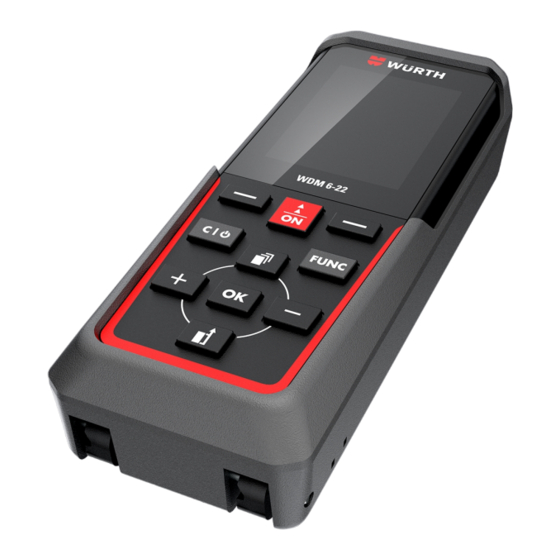

    Overview Overview Components Basic measuring screen 5  Add/ Navigate left The Würth WDM 6-22 is a laser distance meter 6  Enter/ Equal operating with a class 2 laser. See chapter Tech- nical data for scope of use. 7  Selection keys linked to symbols above 8  Functions...
  • Page 4 Bluetooth® is switched on Bluetooth® connection established Measuring reference Device is measuring Offset is activated and adds/substracts the defined value from measuring distance Device is levelled Device is not levelled 1  Function/ Settings 2  Settings 3  Help function 4  Page indicator Würth WDM 6-22 | EN...

  • Page 5: Technical Data

    With favourable conditions the tolerance may deteriorate by 0.10 mm/m for distances above 10 m. With unfavourable conditions the tolerance may deteriorate by 0.15 mm/m for distances above 10 m. **** after user calibration. Additional angle related deviation of +/-0.01° per degree up to +/-45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by +/-0.1°. Würth WDM 6-22 | EN...
  • Page 6 Distance measuring Min/Max measuring Permanent measuring Stake out Addition/Subtraction Area Room angle Volume Painter function (area with partial measurem.) Pythagoras 3-point Smart Horizontal Mode / Indirect height Level Memory Beep Bluetooth® Smart Personalized Favorites Timer Würth WDM 6-22 | EN...

  • Page 7: Instrument Set-Up

    The symbols used have the following meanings: WARNING Indicates a potentially hazardous situ- ation or an unintended use which, if not avoided, will result in death or ser- ious injury. Würth WDM 6-22 | EN...
  • Page 8 Instrument Set-up Insert batteries To ensure a reliable use, we recommend using high quality Alkaline batteries. Change bat- teries when battery symbol is flashing. Switching ON/OFF Device is turned OFF. Würth WDM 6-22 | EN...
  • Page 9 Instrument Set-up Clear Undo last action. Leave actual function, go to default operation mode. Message Codes If the message "i" appears with a number, observe the instructions Message Codes section. Example: Würth WDM 6-22 | EN...
  • Page 10 If device is switched off, ref- b) Distance is measured from the front erence goes back to standard set- of the device. ting (rear of the device). c) Distance is measured from the tripod thread. Würth WDM 6-22 | EN...

  • Page 11: Settings

    Tilt units Distance units Turning screen** Beep Bluetooth® Bluetooth® settings Illumination Favorites Keypad lock Tilt calibration Information / Serial number Offset Reset ** Firmware update might be required through Würth WDM APP to get this feature Würth WDM 6-22 | EN...
  • Page 12 Settings Tilt units Switch between the following units: 360.0° 0.00 % Confirm setting. Exit settings. Würth WDM 6-22 | EN...
  • Page 13 0 in 1/8 * 0.0 mm 0 in 1/4 * 0'00" 1/32 0.00 ft 0'00" 1/16 * 0.000 in 0'00" 1/8 * 0'00" 1/4 * * Available in devices purchased in USA and Canada Confirm setting. Exit settings. Würth WDM 6-22 | EN...
  • Page 14 Settings Turning screen ON/OFF* * Firmware update might be required through the Würth WDM APP to get this feature To switch ON, repeat procedure. Exit settings. Würth WDM 6-22 | EN...
  • Page 15 Settings Beep ON/OFF To switch ON, repeat procedure. Exit settings. Würth WDM 6-22 | EN...
  • Page 16 Bluetooth® ON/OFF Bluetooth® is switched on and black Bluetooth® icon is dis- played in status bar. If con- nection is established the color of the icon changes to blue. To switch ON, repeat procedure. Exit settings. Würth WDM 6-22 | EN...
  • Page 17 Select ON or OFF. If device is connected, the favor- ites disappear and two softkeys appear: Confirm setting. Select kind of decimal point for trans- Confirm setting. Select if unit is transmitted or not. mitted value. Würth WDM 6-22 | EN...
  • Page 18 Settings Confirm setting. Select termination of transmission. Confirm setting. Select if value is transmitted auto- matically or manually. Confirm setting. Exit settings. Würth WDM 6-22 | EN...
  • Page 19 Settings Illumination Select brightness. Confirm setting. Exit settings. To save power reduce brightness if not necessary. Würth WDM 6-22 | EN...
  • Page 20 Select your favorite functions for quick access. Short cut: Press 2 sec on a selection-key in the measuring mode. Select your favorite function and press again short on the corresponding selec- tion key. Exit settings. Würth WDM 6-22 | EN...
  • Page 21 Settings De-/Activate keylock To deactivate, repeat procedure. The Exit settings. keylock is active if device is switched off. Würth WDM 6-22 | EN...
  • Page 22 Settings Calibration of tilt sensor (Tilt Calibration) Place device on absolutely flat surface. Turn the device horizontally by 180° Place device on absolutely flat surface. and place it again on absolutely flat surface. Würth WDM 6-22 | EN...
  • Page 23 Settings Turn the device horizontally by 180° After 2 sec the device goes back and place it again on absolutely flat to the basic mode. surface. Würth WDM 6-22 | EN...
  • Page 24 Settings Information Exit information screen. Exit settings. Würth WDM 6-22 | EN...
  • Page 25 Adjust digit. Approve value. Exit settings. An offset adds or subtracts a spe- cified value automatically to or from all measurements. This func- tion allows tolerances to be taken into account. The offset icon is displayed. Würth WDM 6-22 | EN...
  • Page 26 Settings Reset Reset returns the instrument to the factory settings. All customized settings and memories are lost. Second confirmation with selection keys: a) Refuse b) Confirm Würth WDM 6-22 | EN...

  • Page 27: Operations

    Operations Operations Overview Single distance measurement Area Volume Room angle Smart Horizontal Mode Level Pythagoras (3-point) Stake out Timer Memory Würth WDM 6-22 | EN...
  • Page 28 Aim active laser at target. Target surfaces: Measuring errors can occur when measuring to colourless liquids, glass, styro- foam or permeable surfaces or when aiming at high gloss sur- faces. Against dark surfaces the measuring time increases. Würth WDM 6-22 | EN...
  • Page 29 Used to measure room diagonals The minimum and maximum distance (maximum values) or horizontal dis- measured is displayed (min, max.). tance (minimum values). The last value measured is displayed in the main line. Stops permanent / minimum-maximum measuring. Würth WDM 6-22 | EN...
  • Page 30 The next measurement is added to the This process can be repeated as previous one, respectively subtracted required. The same process can from the previous one. be used for adding or sub- tracting areas or volumes. Würth WDM 6-22 | EN...
  • Page 31 Use Down navigation key to take Aim laser at second target point. a) First distance over values in the main line for b) Second distance sending via Bluetooth® Smart. c) Circumference d) Area Würth WDM 6-22 | EN...
  • Page 32 Operations Volume The volume is calculated based on the Aim laser at first target point. mathematic term multiplying 3 dis- tances. Aim laser at second target point. Aim laser at third target point. Würth WDM 6-22 | EN...
  • Page 33 Bluetooth® Smart. a) First distance a) Ceiling/floor area b) Second distance b) Wall areas c) Third distance c) Circumference d) Volume Würth WDM 6-22 | EN...
  • Page 34 The angle is calculated based on the Aim laser at first target point. cosine rule with 3 known side lengths of a triangle. Aim laser at second target point. Aim laser at third target point. Würth WDM 6-22 | EN...
  • Page 35 Bluetooth® Smart. a) First distance a) Circumference b) Second distance b) Triangular area c) Third distance d) Angle between first and second measurement Würth WDM 6-22 | EN...
  • Page 36 ±10°). cosine with 1 known length and 1 known angle. Use Down navigation key to take over values in the main line for sending via Bluetooth® Smart. Würth WDM 6-22 | EN...
  • Page 37 Operations Level Displays inclinations of 360°. Instrument beeps at 0° and 90°. Ideal for horizontal or vertical adjustments. Würth WDM 6-22 | EN...
  • Page 38 Pythagoras (3-point) The distance is calculated based on Aim laser at first target. the Pythagorean theorem with 3 known lengths of 2 right-angled tri- angles. Aim laser at second target. Aim laser at third target. Würth WDM 6-22 | EN...
  • Page 39 For height measuring (vertical) it is more pre- cise to use a function with inclin- ation measurement. Use Down navigation key to take over values in the main line for sending via Bluetooth® Smart. Würth WDM 6-22 | EN...
  • Page 40 Operations Stake out Two different distances (a and b) can be entered to mark off defined measured lengths. Select digit. Adjust digit. Approve value "a". Adjust value "b". Würth WDM 6-22 | EN...
  • Page 41 CLEAR/OFF button. When approaching a stake out point to less than 15 mm the value of the stake out point is frozen and the arrows on the side change their colour to red for marking purposes. Würth WDM 6-22 | EN...
  • Page 42 Operations Timer Select release time. Confirm setting. The self release starts if ON/Measure key is pressed. Würth WDM 6-22 | EN...
  • Page 43 Operations Memory (last 20 results) a) Go back to measuring mode Use Down navigation key to show Use Left/Right navigation keys to b) Delete memory more detailed results of the specific switch between measurements. measurement. Würth WDM 6-22 | EN...
  • Page 44 Measurement values will be transferred automatically right after a measurement if "Auto- send" is activated. To transfer a result press the following softkey: Würth WDM 6-22 | EN...

  • Page 45: Message Codes

    Change target surface (e.g. white paper) Too much background light Shadow target area. Laser beam interrupted Repeat measurement. * If other message codes are displayed frequently even the instrument has been switched off and on, please contact your dealer. Würth WDM 6-22 | EN...

  • Page 46: Care

    Care Clean the device with a damp, soft cloth. Care Never immerse the device in water. Never use aggressive cleaning agents or solvents. Würth WDM 6-22 | EN...

  • Page 47: Warranty

    Claims can only be accepted if the power tool is sent undisassembled to a Würth branch office, your Würth sales representative or a customer service agent for Würth compressed-air and power tools. Würth WDM 6-22 | EN...

  • Page 48: Safety Instructions

    CAUTION Indicates a potentially hazardous situation or an unintended use which, if not avoided, may result in minor injury and/or appreciable material, financial and environmental damage. Würth WDM 6-22 | EN...
  • Page 49 CAUTION ning or near parts of machines or install- Only use chargers recommended by the man- ations which are unprotected ufacturer to charge the batteries. Aiming directly in the sun Würth WDM 6-22 | EN...
  • Page 50 To understand the safety instructions on the product and the instructions in the User Manual. To be familiar with local safety regulations relating to accident prevention. Always prevent access to the product by unauthorised personnel. Würth WDM 6-22 | EN...
  • Page 51 Consult the dealer or an experienced radi- o/TV technician for help This device complies with part 15 of the FCC rules. Operation is subjected to the following two con- ditions: This device may not cause harmful inter- ference, and Würth WDM 6-22 | EN...
  • Page 52 20 cm). Do not use the product near medical equipment. Do not use the product in airplanes. Do not use the product near your body for extended periods. Würth WDM 6-22 | EN...
  • Page 53 Don't dazzle other individuals. Pay par- ticular attention to the direction of the laser beam when remotely operating the product via an app or software. A measurement could be triggered at any time. Würth WDM 6-22 | EN...
  • Page 54 Safety instructions Labelling Subject to change (drawings, descriptions and tech- nical data) without prior notice. Würth WDM 6-22 | EN...
