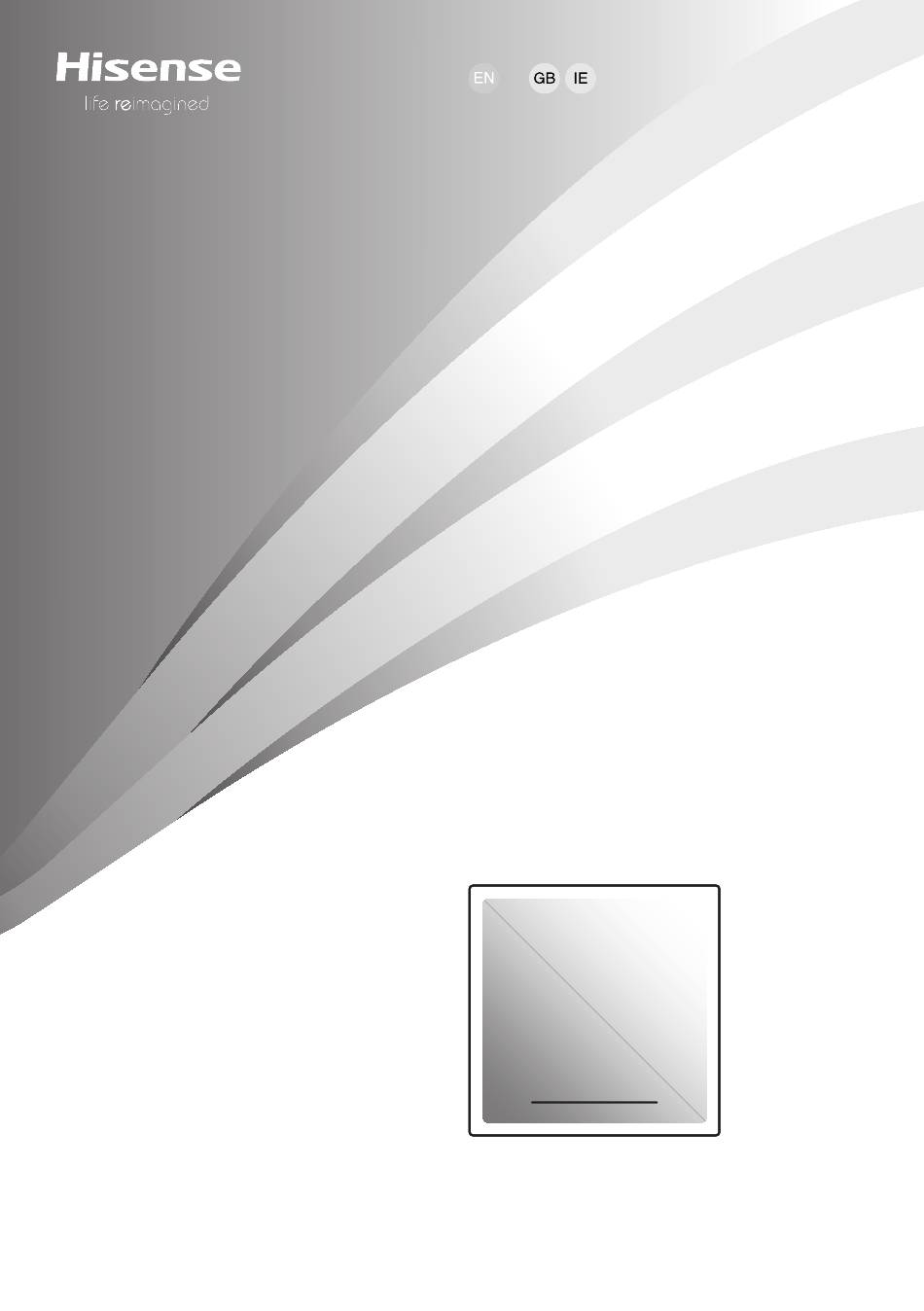

- Page 1 INSTRUCTIONS FOR USE Induction hob...
- Page 2 We thank you for your trust and the purchase of our appliance. This detailed instruction manual is supplied to make the use of this product easier. The instructions should allow you to learn about your new appliance as quickly as possible. Make sure you have received an undamaged appliance.
-
Page 3: Table Of Contents
Contents Safety precautions ......................Other important safety warnings ................... Before connecting the appliance ..................Induction hob installation ....................Flush-mount installation into the worktop ............... Fitting the foam gasket ....................Connecting the induction hob to the power mains ............Power cord ........................Connecting the appliance .................... -
Page 4: Safety Precautions
1. Safety precautions IMPORTANT SAFETY PRECAUTIONS CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Switch off all cooking zones using their respective controls and remove the fuse or trip the main circuit breaker so that the appliance is fully isolated from the power mains.
-
Page 6: Other Important Safety Warnings
2. Other important safety warnings The appliance is intended for household use. Do not use it for any other purpose, such as room heating, drying of pets or other animals, paper, fabrics, herbs etc. As this may lead to injury or fire hazard. Appliance must be connected to fixed wiring which has incorporated means of disconnection. -
Page 7: Induction Hob Installation
3. Induction hob installation 30 cm 60 cm INFORMATION! Installation of the appliance into a kitchen worktop and its connection to the power mains may only be performed by an adequately qualifi ed technician. Installation procedure • Suitably protect the edges of the cut aperture. •... - Page 8 • Use of solid wood corner trims on worktops behind the induction cooking hob is only allowed if the clearance between the trim and the hob is no smaller than indicated on the installation plans. INFORMATION! The worktop has to be completely level. •...
- Page 9 Lower cabinet with a drawer • There must be an opening with a height of no less than 140 mm along the entire width of the cabinet in the cabinet rear wall. In addition, there should be an opening of at least 4 mm in the front side, along the entire width of the cabinet.
-
Page 10: Flush-Mount Installation Into The Worktop
3.1 Flush-mount installation into the worktop 30 cm 60 cm Appliances without faceted edges or decorative frames, are suitable for flush mounting. Installation procedure • The appliance may only be installed into a temperature- and water-resistant countertop, such as a countertop made of natural stone (marble, granite) or solid wood (the edges along the cut-out have to be sealed). - Page 11 1. First, feed the power cord through the cut-out. 2. Place the appliance over the centre of the cut-out. 3. Connect the appliance to the power mains. 4. Test appliance operation. 5. Seal the slot between the appliance and the countertop using a silicone sealant.
- Page 12 Ceramic, wooden, or glass countertop 1. Countertop 2. Appliance 3. Slot 4. Wooden frame, thickness 16 mm. Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cut-out in the countertop, the slot is adjustable (min. 2mm). Install the wooden frame 5 mm below the upper edge of the countertop (see figure).
-
Page 13: Fitting The Foam Gasket
3.2 Fitting the foam gasket Before installing the induction hob into a kitchen worktop, attach the foam gasket supplied with the appliance to the bottom side of the hob. Some appliances come with the gasket already fitted! 1. Remove the protective film from the gasket. 2. -
Page 14: Connecting The Appliance
INFORMATION! We recommend using electric wire ferrules (end terminals). • The following may be used for connection: • PVC insulated connection cables type H05 VV-F or H05V2V2-F with yellow-and-green protective conductor, or other equivalent or superior cables. • Exterior cable diameter should be at least 8.0 mm. •... - Page 15 Connecting the power cord to the power mains (appliance with a power cord) • The cooking hob has to be hard-wired directly to the power mains. • Devices for disconnecting from the power mains have to comply with the relevant regulations. •...
-
Page 16: Appliance Description
Table continued from last page L = brown N = blue = yellow and green The circuit should be fitted with Single-phase connection a fuse of at least 16 A. Connect the appliance as shown in Diagram A. If your power mains Appliances with a width of 30 do not allow a 16 A fuse, the appliance power should be decreased centimetres (two cooking... -
Page 17: Operating The Cooking Hob
6. Operating the cooking hob 6.1 Control unit Hob on/off key Touch the relevant key to switch the hob on or off. Lock/child lock Locks/unlocks the cooking hob controls Power increase key Powers on the selected cooking zone or increases operating power: •... -
Page 18: Powering On The Induction Cooking Hob
6.2 Powering on the induction cooking hob 1. Touch to power on the induction hob. 2. Place the cookware onto the selected cooking zone. appears on all cooking zone displays; a short beep is emitted. INFORMATION! If no cooking zone is switched on in 10 seconds, the induction hob will power off. 6.3 Switching on the cooking zones 1. -
Page 19: Bridged Cooking Zone
6.4 Bridged cooking zone (depending on the model) • Some models allow combining two cooking zones on the left-hand side into a single large connected cooking zone. Thus, a large oval pan or a griddle can be placed on the combined cooking field. -
Page 20: Automatic Rapid Heating
6.5 Automatic rapid heating All cooking zones are fitted with a special mechanism that sets the cooking power to maximum at the start of the cooking process, regardless of the actual power setting. After a while, the cooking zone power switches back to the initially set level. Automatic rapid heating can be activated on every cooking zone for any cooking power level except for level "9"... -
Page 21: Power Boost
6.6 Power Boost (depending on the model) For rapid cooking, power boost can be activated on the cooking zones. This will allow you to rapidly heat large amounts of food using extra power. The power boost is active for no more than 10 minutes; then, the power level is automatically decreased to 9. -
Page 22: Time Functions
INFORMATION! Note: If the child lock/lock function is activated in the user settings mode (see chapter User Settings Mode, Parameter ), then the hob will be automatically locked every time it is switched off. INFORMATION! Activate the lock function before cleaning to prevent the induction hob from being inadvertently switched on. -
Page 23: Residual Heat Indicator
INFORMATION! The switch-off program timer can be set independently for all cooking zones. The program timer may only be set for an active cooking zone. 1. Touch the key to activate the timer. will appear on the timer display. 2. Touch the key again and will start flashing, indicating one or more of the selected cooking zones. -
Page 24: Overheat Protection
* After 10 minutes, the power level automatically decreases to 9; after 1.5 hours, the cooking zone is switched off. 6.11 Overheat protection The induction hob is fitted with a cooling fan that cools the electronic components during cooking. The fan may operate for a while even after the end of the cooking process. The hob is also fitted with an overheating protector that protects the electronics from damage. -
Page 25: User Settings
7. User settings Setting the acoustic signal, automatic features, and lock parameters You can adjust the volume of the acoustic signal, duration of acoustic alarm, total maximum appliance power, and automatic lock settings on the appliance. Uo: Acoustic signal and alarm volume (loudness) So: Acoustic alarm duration Lo: Automatic lock Po: Total maximum power... -
Page 26: Tips And Hints
The following values can be set: 0.5 on the display = 5 seconds 1 on the display = 1 minute 2 on the display = 2 minutes (default) Child safety lock "Lo" If the automatic lock function is activated in the user settings mode, the cooking hob will be automatically locked every time it is switched off. -
Page 27: Induction Cooking Zone Operating Principle
• If any visible crack appears in the hob, immediately cut off the power supply to the appliance. • Make sure the cooking zone and the cookware bottom is clean and dry. This will allow better conduction of heat and prevent any damage to the heating surface. •... -
Page 28: Energy Saving Tips
Table continued from last page For best cooking results, the ferromagnetic area on the cookware bottom should match the size of the cooking zone. If the cooking zone does not recognize the pan, try placing it on a different cooking zone with a smaller diameter. - Page 29 • Even if there is no pot or pan on the cooking zone or if the pan used has a diameter that is smaller than the diameter of the cooking zone, there will be no losses of energy. • If the pan is much smaller than the cooking zone, there is a possibility that it will not be recognized by the cooking zone.
-
Page 30: Cleaning And Maintenance
9. Cleaning and maintenance After each use, wait for the glass ceramic surface to cool down and clean it. Otherwise, all remaining impurities will burn onto the hot surface the next time you use the hob. For regular maintenance of the glass ceramic hob, use special care products that create a protective film on the surface to prevent the dirt from sticking onto it. -
Page 31: Problems And Errors
10. Problems and errors During the warranty period, only a service centre authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. Any unauthorized repairs of the appliance may result in electric shock and short circuit hazard;... -
Page 32: Noises During Induction Cooking
10.1 Noises during induction cooking Noises and sounds Cause Solution Inductiongenerated Induction technology is based on the This is normal and it is not a operating noise properties of some metals under result of any malfunction. electromagnetic effect. It results in so-called eddy currents that force the molecules to oscillate. -
Page 33: Disposal
12. Disposal Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. - Page 34 899307-a2...
