Dimensions And Specifications; Installation And Assembly - Modern Flames OR26-TRAD-INT Installation Manual

Model
Number
OR26-TRAD
OR30-TRAD
OR36-TRAD
OR42-TRAD
OR54-TRAD
Your appliance is an insert and/or built-in installed appliance. Select a suitable location that is not
susceptible to moisture and is away from drapes, furniture, and high traffic areas.
NOTE: Follow all National and local electrical codes.
Bottom...........................0"
Sides.............................0"
Back..............................0"

Dimensions and Specifications

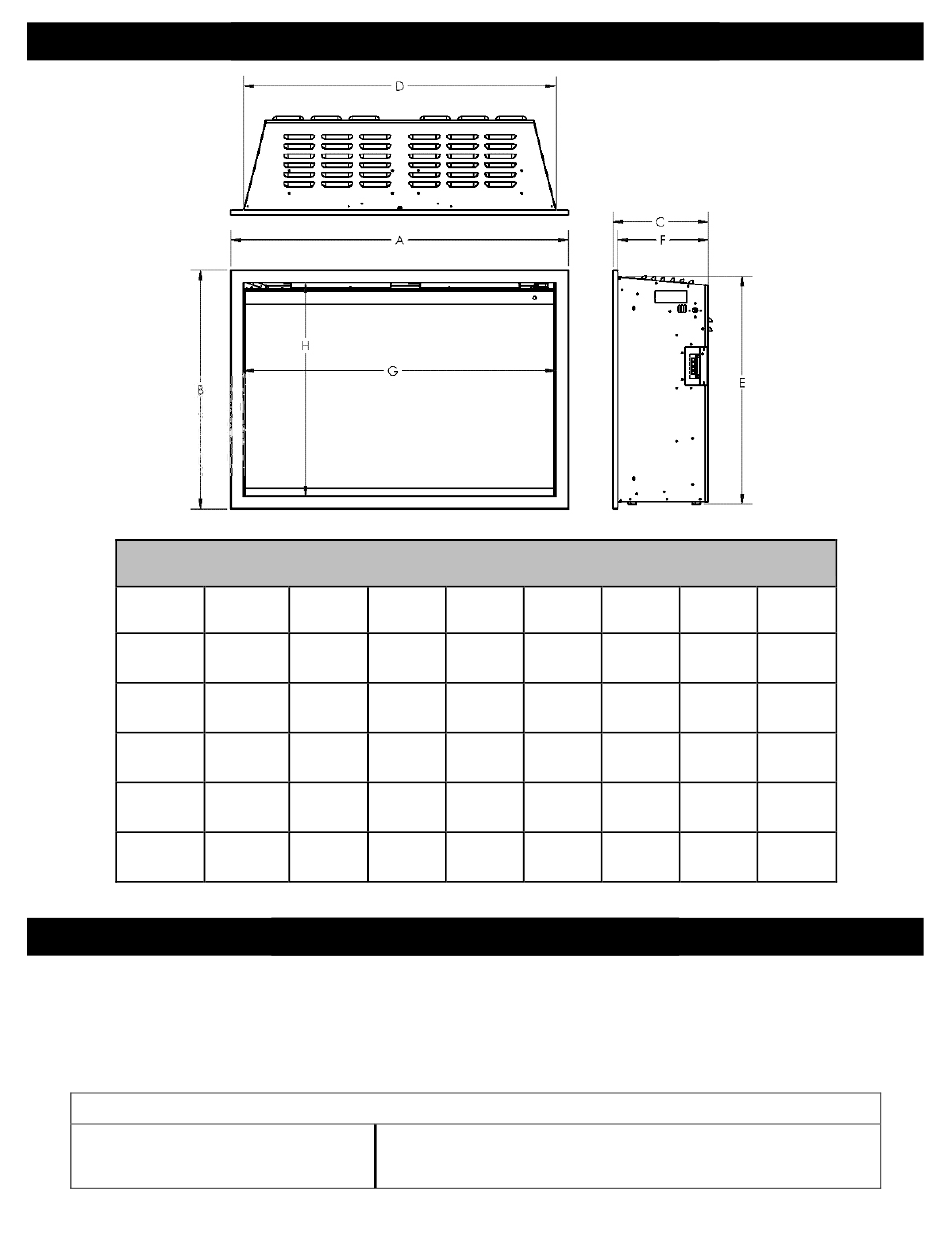

PRODUCT DIMENSIONS
A B
25" 19-5/8" 9-7/8"
(636mm) (500mm) (250mm)
30-1/2" 19-5/8" 9-7/8"
(776mm) (500mm) (250mm)
35" 24-13/16" 9-7/8"
(890mm) (630mm) (250mm)
41" 27-13/16" 9-7/8"
(1042mm) (706mm) (250mm)
53-3/8" 33-13/16" 9-7/8"
(1355mm) (858mm) (250mm)

Installation and Assembly

MINIMUM CLEARANCE TO COMBUSTIBLES
Measurements are taken from the glass front.
www.modernflames.com
C D E
22-3/4" 18-1/2"
(578mm) (470mm)
28" 18-1/2"
(711mm) (470mm)
32-3/8" 23-5/8"
(823mm) (600mm)
38-3/8" 26-5/8"
(975mm) (676mm)
50-11/16" 32-5/8"
(1288mm) (829mm)
Top (to mantel)...........................11.8" (300mm)
Top (to TV).................................11.8" (300mm)
Top (to ceiling)............................11.8" (300mm)
F G
9-3/8" 22-7/16" 17-1/16"
(238mm) (570mm) (433mm)
9-3/8" 27-5/8" 17-1/16"
(238mm) (702mm) (433mm)
9-3/8" 32-1/8" 22-3/16"
(238mm) (816mm) (563mm)
9-3/8" 38-1/8" 25-3/16"
(238mm) (968mm) (640mm)
9-3/8" 50-3/8" 31-3/16"
(238mm) (1280mm) (792mm)
H
