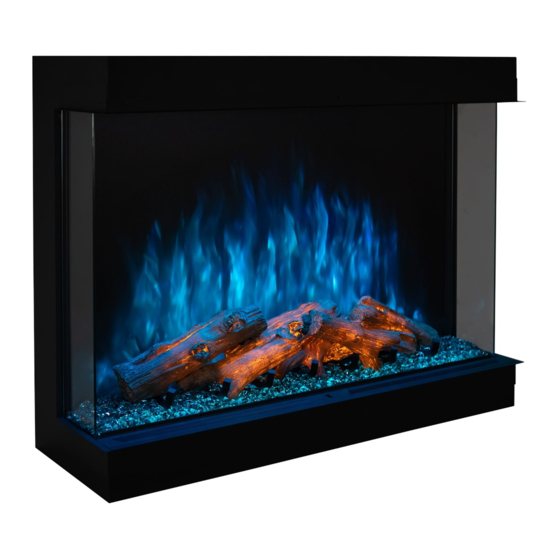

- Page 1 Sedona Pro Multi SPM-2426/INT • SPM-3026/INT • SPM-3626/INT • SPM-4226/INT WORLD INSTALLATION/OWNERS MANUAL CE RATED FOR 220-240VAC 50/60HZ INSTALLATIONS SERIAL NUMBER:________________________________________ REV 20210127...
- Page 2 USER INSTRUCTIONS SEDONA PRO MULTI SPM-2426/INT • SPM-3026/INT • SPM-3626/INT • SPM-4226/INT SAFETY INFORMATION AND OPERATIONS MANUAL PAGE 8 PAGE 8 PAGE 7 PAGE 9 Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions Service Parts Power Data Troubleshooting Product Guide Frequently Asked Questions Box Contents Cleaning and Maintenance Instructions Installation Wiring Diagram Operation IMPORTANT INSTRUCTIONS When using electrical heaters, basic 1. Read all instructions before installing or precautions should always be followed to using this heater. -
Page 4: Power Data
USER INSTRUCTIONS POWER DATA SPM-2426/INT SPM-3026/INT SPM-3626/INT SPM-4226/INT Volts/HZ AC 220-240V AC 220-240V AC 220-240V AC 220-240V Amps 50/60Hz 9 Amps 50/60Hz 9 Amps 50/60Hz 9 Amps 50/60Hz 9 Amps AC 220-240V AC 220-240V AC 220-240V AC 220-240V Heater 2000W 2000W 2000W 2000W... -
Page 5: Box Contents
INSTALLATION BOX CONTENTS (A) 1 Fire Unit (B) 1 Remote (C) L-Metal Mounting (D) 2 Side Covers Brackets (E) 2 Side Glass (F) 1 Front Glass Pieces (H) Smoke Acrylic (G) 2 Suction Cups Crystals (I) Log Set (J) 1 Owner's Manual... -
Page 6: Installation
INSTALLATION INSTALLATION WARNING: If the information in these To reduce the risk of fire do not store or instructions is not followed exactly, a fire use gasoline or other flammable vapors in or explosion may result causing property the vicinity of this or any other heater. damage, personal injury or death. - Page 7 INSTALLATION Framing Dimensions Model SPM-2426/INT 24-1/4" (616mm) 35-3/8" (899mm) 13" (330mm) SPM-3026/INT 30-1/4" (768mm) 35-3/8" (899mm) 13" (330mm) SPM-3626/INT 36-1/4" (920mm) 35-3/8" (899mm) 13" (330mm) SPM-4226/INT 42-1/4" (1073mm) 35-3/8" (899mm) 13" (330mm) 3-SIDED INSTALLATION (BAY) 1. Prepare the framed opening according from the dimension chart above.
- Page 8 INSTALLATION FULLY RECESSED INSTALLATION (LEFT/RIGHT CORNER) 1. Follow steps 1 & 2 from the 3 sided installation instructions. 2. Remove the corresponding drywall stops according to your installation (in the example, the drywall stops on the left end would be removed.) 3.
- Page 9 INSTALLATION PARTIAL RECESSED INSTALLATION 1. This installation is optimized for a 2"x6" (51mm X 152mm) framed wall. Prepare the framed opening according to the height and width of the chart on page 7. Provide a 13 amp (EU) or 10 amp (AU/ NZ) circuit for hard wire install at the top right of the framed opening.
- Page 10 INSTALLATION INSTALLING LOG SET & GLACIER CRYSTALS 1. Before installing the front glass, connect the logset to the electrical connection below the ember bed plastic screen. The electrical connection can be routed through the hole on the back side of the ember bed.
- Page 11 INSTALLATION INSTALLING SIDE GLASS 1. The fireplace has 2 channels on the top and bottom to hold the side glass. 2. Insert the glass at an angle in to the top channel. 3. Swing the bottom edge of the side glass in to the unit.
-
Page 12: Operation
Power If the fireplace is on, this button will act as a reset and bring all colors Reset back to the default Modern Flames' signature color. Heat This will cycle the heater between high, low and off. All zones of the fireplace will cycle through various demo modes - 7 &... -
Page 13: Service Parts
MAINTENANCE SERVICE PARTS ITEM PHOTO DESCRIPTION PRINTED CIRCUIT BOARD CONTROLS LOW MF-PRO-PCB VOLTAGE AND HIGH VOLTAGE FUNCTIONS AND TRANSFORMER WIFI MF-PRO-WIFI WIFI BOARD MF-PRO-HF-INT HEATER FAN 220-240V MF-PRO-PTC-INT PTC HEATER 220-240V 1000/2000 WATTS MFSM230 SPINDLE MOTOR 220-240V 50/60 HZ MF-PRO-RC PRO SERIES RF REMOTE CONTROL OPTIONAL MF-PRO-WTC... - Page 14 MAINTENANCE SERVICE PARTS ITEM PHOTO DESCRIPTION MF-PRO-PIB POWER INDICATOR BOARD MF-PRO-NTC THERMOSTAT SENSOR MF-SPM-SG-C SIDE GLASS CLEAR MF-SPM-F/LED-30 MF-SPM-F/LED-36 RGB FLAME LED BAR SET MF-SPM-F/LED-42 MF-SPM-EB/DL-30 MF-SPM-EB/DL-36 RGB EMBER BED/DOWNLIGHT LED STRIP MF-SPM-EB/DL-42 MF-SPM-SR-30 MF-SPM-SR-36 SPINDLE ROD FOR FLAME AND EMBER BED MF-SPM-SR-42 MF-SPM-GF-30 MF-SPM-GF-36...
-
Page 15: Troubleshooting
MAINTENANCE TROUBLESHOOTING Problem Possible Cause Corrective Action A. Breaker tripped or circuit has A. Reset breaker, test circuit for no power power B. Turn power off at the main B. Internal component is frozen breaker for 60 seconds. Turn and needs to be reset Nothing comes on power back on. -
Page 16: Frequently Asked Questions
A. No, only the actual remote requires batteries. The rest of the fireplace runs entirely off of the main power supply. Q. How do I install the Optional Wall Control and Wi-Fi App? A. Optional wall control & Wi-Fi app instructions available for download on Modern Flames’ website, www.modernflames.com... -
Page 17: Cleaning And Maintenance Instructions
MAINTENANCE CLEANING AND MAINTENANCE INSTRUCTIONS There is very little maintenance involved with your electric fireplace. Please follow the few points below: • On a semi-annual basis unplug the machine from it’s power source, wait for the heating element to cool and dust the fire unit with a dry cloth. - Page 18 MAINTENANCE NOTES...
- Page 19 MAINTENANCE DO NOT RETURN TO STORE! STOP STOP CALL US FIRST For immediate help with installation, product information or if your product arrives damaged, please call our toll free number at: AUSTRALIA/NEW ZEALAND 07 5630 6837 (Monday - Friday, 9:00AM - 4:00PM, AEST) Or email us at: info@modernflames.com EUROPE...
- Page 20 ©2021 www.modernflames.com Please dispose of properly. 20210127...
