Teknim TFS-3192R Installation & Operating Manual page 2

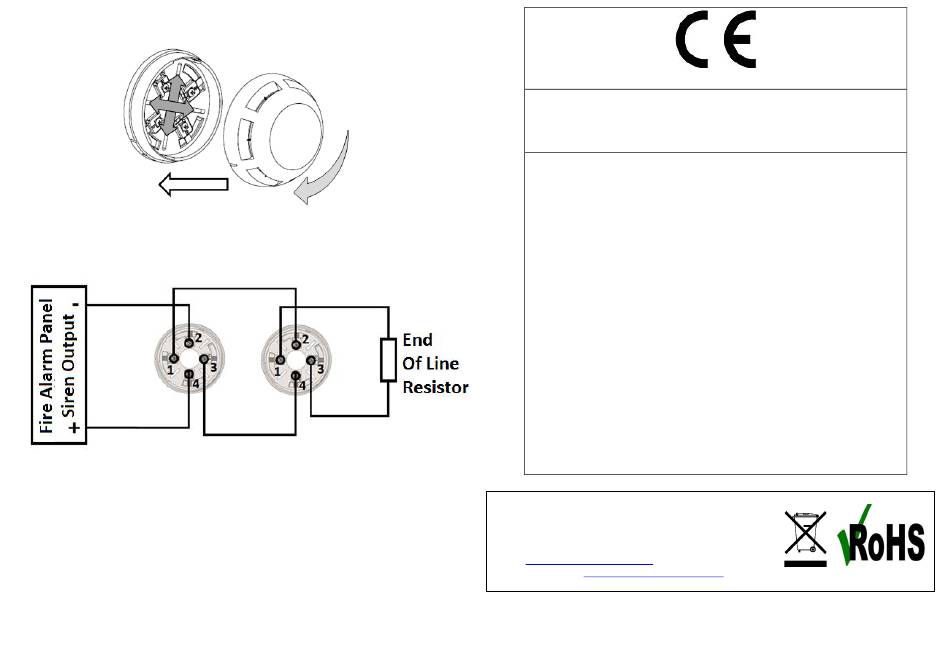

1. Remove the head of the siren from the base.
2. Mount the base part on the wall, using 2 of the 4 markings marked on the base.
3. Connect the cable according to the following diagram. The direction of the connection is important, the
siren of the panel must be connected to the Terminal 2 of the cable siren, and the cable siren to the
Terminal 4 of the siren.
4. For the next siren, enter a cable from the existing siren 1 terminal into the siren terminal 2 of the next siren.
In the same way, you will remove the existing siren 3 from the terminal block and insert the cable into the
terminal block 4 of the next siren.
Test
1. Check if the siren fault occurs when the panel is started.
2. Make sure that the connections are made correctly if the siren is faulty.
3. If the siren does not give a fault and the panel supports it, bring it to the panel test position.
4. Run the siren test. Listen to the siren sound during the test period.
5. During the test, if the device sounds uninterrupted and the warning lights are blinking, the test is complete.
Bilgi Elektronik San. ve Tic. A.Ş.
Dudullu OSB 1. Cad. İsmet Tarman İş Merkezi
No:1 Kat:2 No:32 Ümraniye / İstanbul
Alarm devices – Sounder
Fire alarm devices - Visual alarm device (VAD)
intended for use in and around buildings
Duration of operation: Pass
Provision for external conductors: Pass
Flammability of materials: Pass
Enclosure protection: Pass
Access: Pass
Manufacturer's adjustments: Pass
On-site adjustment of behaviour: Pass
Requirements for software controlled devices: Pass
Coverage volume: Pass
Variation of light output: Pass
Minimum and maximum light intensity: Pass
Light colour: Red / White
Light temporal pattern / frequency of flashing: Pass / 1Hz %25Duty
Marking and data: Pass
Synchronization: Pass
Durability:
Temperature resistance: Pass
Humidity resistance: Pass
Shock and vibration resistance: Pass
Corrosion resistance: Pass
Electrical stability: Pass
Manufacture
Bilgi Elektronik San. ve Tic. A.Ş.
Dudullu Organize Sanayi Bölgesi 1. Cadde İsmet Tarman İş Merkezi
No:1 Kat:2 No:32 Ümraniye / İstanbul / Türkiye
Telephone: +90 216 455 88 46 Fax: +90 216 455 99 06
Sales: sales@bilgielektronik.com.tr
Technical Support: support@bilgielektronik.com.tr
* 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal
waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase
of equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info.
1922
17
1922-CPR-0873
EN 54-3
EN 54-23
