Operating instructions
Safety fieldbox
Operating instructions. . . . . . . . . . . .pages 1 to 12
EN
Original
Content
1
About this document
1.1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Further applicable documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Target group: authorised qualified personnel. . . . . . . . . . . . . . . . . .1
1.4 Explanation of the symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.5 Appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.6 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.7 Warning about misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.8 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2
2.1 Ordering code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.2 Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.3 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.4 Safety classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3
3.1 General mounting instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
4
4.1 General information for electrical connection. . . . . . . . . . . . . . . . . .5
4.2 Notes for replacing the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4.3 Power supply and fuse protection . . . . . . . . . . . . . . . . . . . . . . . . . .5
4.4 Internal fuse elements device ports . . . . . . . . . . . . . . . . . . . . . . . . .5
4.5 Earth concept and shielding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4.6 Overview of connections and LED indicators . . . . . . . . . . . . . . . . .6
4.8 Connector configuration POWER I/O . . . . . . . . . . . . . . . . . . . . . . .7
4.9 Connector configuration EtherCAT IN/OUT . . . . . . . . . . . . . . . . . . .7
4.10 Setting the TwinSAFE address . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5
5.1 LED indicators, device ports X0 - X7 . . . . . . . . . . . . . . . . . . . . . . . .8
5.2 LED indicators, EtherCAT ports IN/OUT . . . . . . . . . . . . . . . . . . . . .8
5.3 Central LED indicators, SFB-EC . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6
6.1 Functional testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7
7.1 Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
8
8.1 Configuration examples of the power supply . . . . . . . . . . . . . . . . . .9
8.2 Wiring example of the safety switches. . . . . . . . . . . . . . . . . . . . . .10
9
EU Declaration of conformity
1. About this document

1.1 Function

These operating instructions provide all the information required for
mounting, commissioning, safe operation and also disassembly of
the safety fieldbox. The operating instructions must be available in a
legible condition and a complete version in the vicinity of the device.
For additional information please refer to the manual "Safety Field Box
SFB-EC".

1.2 Further applicable documents

Enter search term "SFB-EC" in the Schmersal Online Catalogue at:
products.schmersal.com.
• Manual: Safety Field Box SFB-EC
• Operating instructions: Safety Field Box SFB-EC
• ESI File

1.3 Target group: authorised qualified personnel

All operations described in this operating instructions and in the manual
must be carried out by trained specialist personnel, authorised by the
plant operator only.
Please make sure that you have read and understood these operating
instructions and the manual and that you know all applicable
legislations regarding occupational safety and accident prevention prior
to installation and putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.

1.4 Explanation of the symbols used

Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.

1.5 Appropriate use

Products in Schmersal's range are not intended to be used by private
end consumers.
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine. It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant.
The safety fieldbox must only be used according to the following
versions or for applications that are approved by the manufacturer.
Detailed information regarding the range of applications can be found in
the chapter "Product description".
EN

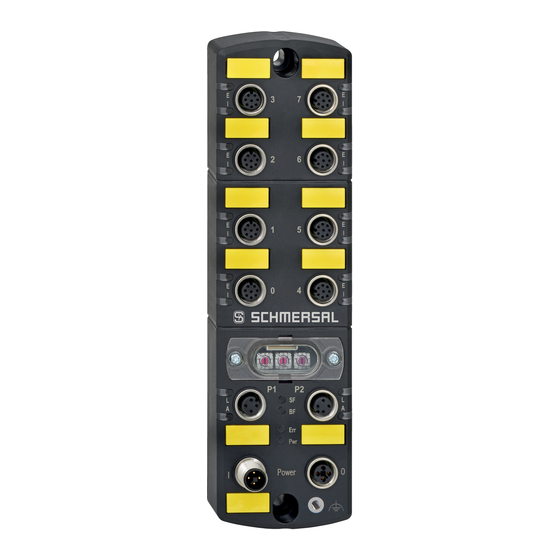

SFB-EC-8M12-IOP
1
