SLC 210 / SLG 210
MOUNTING AND WIRING INSTRUCTIONS
TABLE OF CONTENTS
INTRODUCTION........................................................................................................................ 2
OPERATION .............................................................................................................................. 3
INSTALLATION.......................................................................................................................... 4
POSITIONING......................................................................................................................5
SAFETY DISTANCE CALCULATION ....................................................................................6
VERTICAL POSITION OF THE BARRIER .............................................................................7
HORIZONTAL POSITION OF THE BARRIER ........................................................................8
ELECTRICAL CONNECTIONS .............................................................................................9
MULTIPLE SYSTEMS ........................................................................................................ 12
DISTANCE BETWEEN REFLECTING SURFACES .............................................................. 12
USE OF DEFLECTION MIRRORS ...................................................................................... 14
MECHANICAL ASSEMBLY AND OPTIC ALIGNMENT......................................................... 15
OPERATION AND TECHNICAL DATA................................................................................... 16
SIGNALS ........................................................................................................................... 16
TEST FUNCTION............................................................................................................... 17
OUTPUTS STATUS ........................................................................................................... 17
TECHNICAL SPECIFICATIONS .......................................................................................... 18
DIMENSIONS .......................................................................................................................... 19
CHECKS AND MAINTENANCE .............................................................................................. 21
TROUBLESHOOTING ........................................................................................................ 22
SPARE PARTS ........................................................................................................................ 23

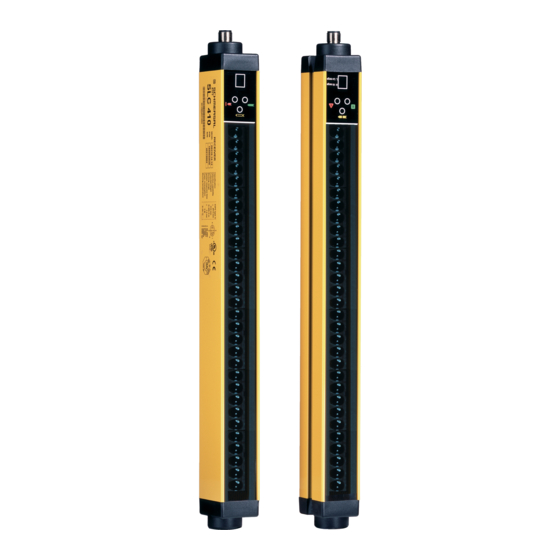

PHOTOELECTRIC
SAFETY
BARRIER
SLC 210 / SLG 210
Advertisement
Table of Contents
Related Manuals for schmersal SLC 210
Summary of Contents for schmersal SLC 210
-
Page 1: Table Of Contents
SLC 210 / SLG 210 PHOTOELECTRIC SAFETY BARRIER SLC 210 / SLG 210 MOUNTING AND WIRING INSTRUCTIONS TABLE OF CONTENTS INTRODUCTION........................2 OPERATION ..........................3 INSTALLATION.......................... 4 POSITIONING........................5 SAFETY DISTANCE CALCULATION ..................6 VERTICAL POSITION OF THE BARRIER ................7 HORIZONTAL POSITION OF THE BARRIER ................8 ELECTRICAL CONNECTIONS .....................9... -
Page 2: Introduction
Type 2 electrosensitive devices according to EN 954-1. The SLC 210 / SLG 210 barrier, which consists of an Emitter and a Receiver, is a type 2 optoelectronic safety device according to standards IEC 61496-1 and IEC 61496-2. -
Page 3: Operation
If the latter is placed horizontally, this value refers to the depth of the protected area. The working range is the maximum operative distance that can exist between the Emitter and the Receiver. SLC 210 / SLG 210 is available with the following resolutions: – 20 mm (protected height from 160 mm to 1800 mm) PROTECTION OF FINGERS –... -
Page 4: Installation
SLC 210 / SLG 210 INSTALLATION Before installing the SLC 210 / SLG 210 safety system, make sure that: The safety system is only used as a stopping device and not as a machine control device. The machine control can be actuated electrically. -
Page 5: Positioning
SLC 210 / SLG 210 The recommended Cf factors are shown in the table below: ENVIRONMENTAL CONDITION CORRECTION FACTOR Cf 0.25 Steam 0.50 Dust 0.50 Dense fumes 0.25 If the device is installed in places that are subject to sudden changes in temperature, the appropriate precautions must be taken in order to prevent the formation of condensation on the lenses, which could have an adverse effect on monitoring. -
Page 6: Safety Distance Calculation
SLC 210 / SLG 210 SAFETY DISTANCE CALCULATION The barrier must be installed at a distance that is greater than or equal to the minimum safety distance S, so that a dangerous point can only be reached after all hazardous machine movements have stopped (Figure 3). -
Page 7: Vertical Position Of The Barrier
SLC 210 / SLG 210 VERTICAL POSITION OF THE BARRIER 20 mm resolution models These models are suitable for the protection of fingers. S = K (t ) + C and S > 100 mm point of safety barrier danger... -
Page 8: Horizontal Position Of The Barrier
SLC 210 / SLG 210 point of Multibeam Models danger These models are suitable for the protection of safety barrier the entire body and must not be used to protect arms or legs. The minimum safety distance S is calculated... -
Page 9: Electrical Connections
SLC 210 / SLG 210 ELECTRICAL CONNECTIONS WARNINGS Before making the electrical connections, make sure that the supply voltage complies with the one specified in the technical data sheet. Emitter and Receiver units must be supplied with PELV type 24 V ±... - Page 10 SLC 210 / SLG 210 Connector pins EMITTER RECEIVER Figure 8 EMITTER NUMBER NAME MEANING 24 V Power supply (positive) - Operation without TEST (+24 V TEST - TEST control (Transition +24 V - > 0 V or open circuit) Power supply (negative) N.C.
- Page 11 SLC 210 / SLG 210 Example of connection of the SLC 210 / SLG 210 barrier to the SCR 1R safety module Colour code: brown white blue black grey Figure 9 Instructions for connection cables • For connections over 50 m long, use cables with a cross-section area of 1 mm •...
-
Page 12: Multiple Systems
SLC 210 / SLG 210 MULTIPLE SYSTEMS When more than one SLC 210 / SLG 210 system is used, precautions must be taken to avoid optical interference between them: install units so that the beam emitted by the Emitter of one system can only be received by the relative Receiver. - Page 13 SLC 210 / SLG 210 Figure 12 illustrates the values for the minimum distance d that must be maintained when the distance l between the Emitter and Receiver is changed. Figure 12 After installing the system, check whether any reflecting surfaces intercept the beams, first in...
-
Page 14: Use Of Deflection Mirrors
SLC 210 / SLG 210 USE OF DEFLECTION MIRRORS In order to protect or control areas that can be accessed from more than one side, to the Emitter and Receiver in addition, one or more deflection mirrors can be installed. -
Page 15: Mechanical Assembly And Optic Alignment
SLC 210 / SLG 210 MECHANICAL ASSEMBLY AND OPTIC ALIGNMENT The Emitter and the Receiver must be assembled opposite each other. Use the fastening brackets and inserts supplied with the system to place the Emitter and the Receiver so that these are aligned and parallel to each other and with the connectors facing the same way. -
Page 16: Operation And Technical Data
SLC 210 / SLG 210 OPERATION AND TECHNICAL DATA SIGNALS COLOUR STATUS MEANING Yellow System activated. Initial TEST Yellow TEST condition Green Green Normal operation Malfunction COLOUR STATUS MEANING Yellow System activated Green Protected area clear Protected area engaged Yellow... -
Page 17: Test Function
SLC 210 / SLG 210 TEST FUNCTION The SLC 210 / SLG 210 barrier system does not dispose of a s tart/restart interlock circuit. In most applications this safety function is necessary. The safety module SCR 1R permits to implement this function in a safe way according to IEC 61496-1. -
Page 18: Technical Specifications
SLC 210 / SLG 210 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS OF SLC 210 / SLG 210 BARRIERS Protected height 160 – 1810 Resolutions 20 –40– 90 standard 0 – 6 Working range m extension -H 1 - 16 Safety outputs 2 PNP – 500mA @24V... -
Page 19: Dimensions
SLC 210 / SLG 210 DIMENSIONS (in mm) EMITTER RECEIVER Figure 17 Emitter and Receiver 0160 0310 0460 0610 0760 0910 1060 1210 1360 1510 1660 1810 SLC 210E/Rxxxx-xx-12 1001 1151 1301 1451 1601 1751 1901 1060 1210 1360 1510 1663... - Page 20 SLC 210 / SLG 210 inserts M8 Type SMB 250 SMB 370 SMB 540 SMB 715 SMB 885 SMB 1060 1060 SMB 1230 1230 SMB 1400 1400 SMB 1575 1575 SMB 1750 1750 SMB 1900 1900 Figure 19 Fastening brackets for deviation...
-
Page 21: Checks And Maintenance
Make sure that during each stage of the test object’s movements the red LED on the Receiver is permanently on. Figure 21 The SLC 210 / SLG 210 barrier does not require any specific maintenance operations; however, periodic cleaning of the front protective surfaces of the Emitter and Receiver optics is recommended. -
Page 22: Troubleshooting
SLC 210 / SLG 210 TROUBLESHOOTING The instructions provided by the LEDs of the Emitter and the Receiver enable the user to identify the cause of a number of system malfunctions. Refer to figure 22 to verify the LEDs indications. -
Page 23: Spare Parts
K.A. Schmersal GmbH. If correct system operation cannot be restored after carrying out the above procedures, send the equipment to the K.A. Schmersal GmbH, complete with all parts, stating clearly: • the product code number (the P/N field is shown on the product label) •...
