1. About this document

1.1 Function

These operating instructions provide all the information required for
mounting, commissioning, safe operation and also disassembly of the
safety fieldbox. The operating instructions must be available in a legible
condition and a complete version in the vicinity of the device.

1.2 Further applicable documents

Enter search term "SFB-PN" in the Schmersal Online Catalogue at:
products.schmersal.com.
• Manual: Safety Field Box SFB-PN-V2
• Operating instructions: Safety Field Box SFB-PN-V2
• GSDML File
• Manual: SFB Configuration Tool

1.3 Target group: authorised qualified personnel

All operations described in this operating instructions and in the manual
must be carried out by trained specialist personnel, authorised by the
plant operator only.
Please make sure that you have read and understood these operating
instructions and the manual and that you know all applicable
legislations regarding occupational safety and accident prevention prior
to installation and putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.

1.4 Explanation of the symbols used

Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.

1.5 Appropriate use

Products in Schmersal's range are not intended to be used by private
end consumers.
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine. It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant.
The safety fieldbox must only be used according to the following
versions or for applications that are approved by the manufacturer.
Detailed information regarding the range of applications can be found in
the chapter "Product description".
EN
SFB-PN-IRT-8M12-IOP-V2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFB-PN-IRT-8M12-IOP-V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for schmersal SFB-PN-IRT-8M12-IOP-V2

  • Page 1: Table Of Contents

    4.2 Notes for replacing the device ......5 Products in Schmersal’s range are not intended to be used by private 4.3 Power supply and fuse protection .
  • Page 2: General Safety Instructions

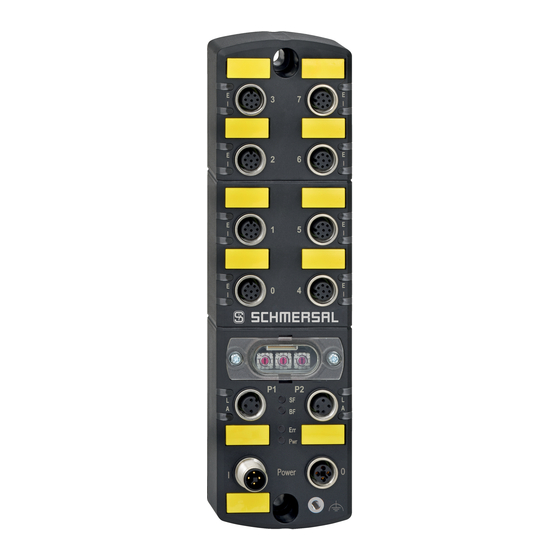

    IP66/IP67 acc. EN 60529 2.2 Purpose Installation altitude above sea level: max. 2,000 m The SFB-PN-IRT-8M12-IOP-V2 safety fieldbox is designed for Protection class: connection of up to 8 safety switchgear units with parallel IO signals to Insulation values to EN 60664-1: a PROFINET/PROFIsafe network.
