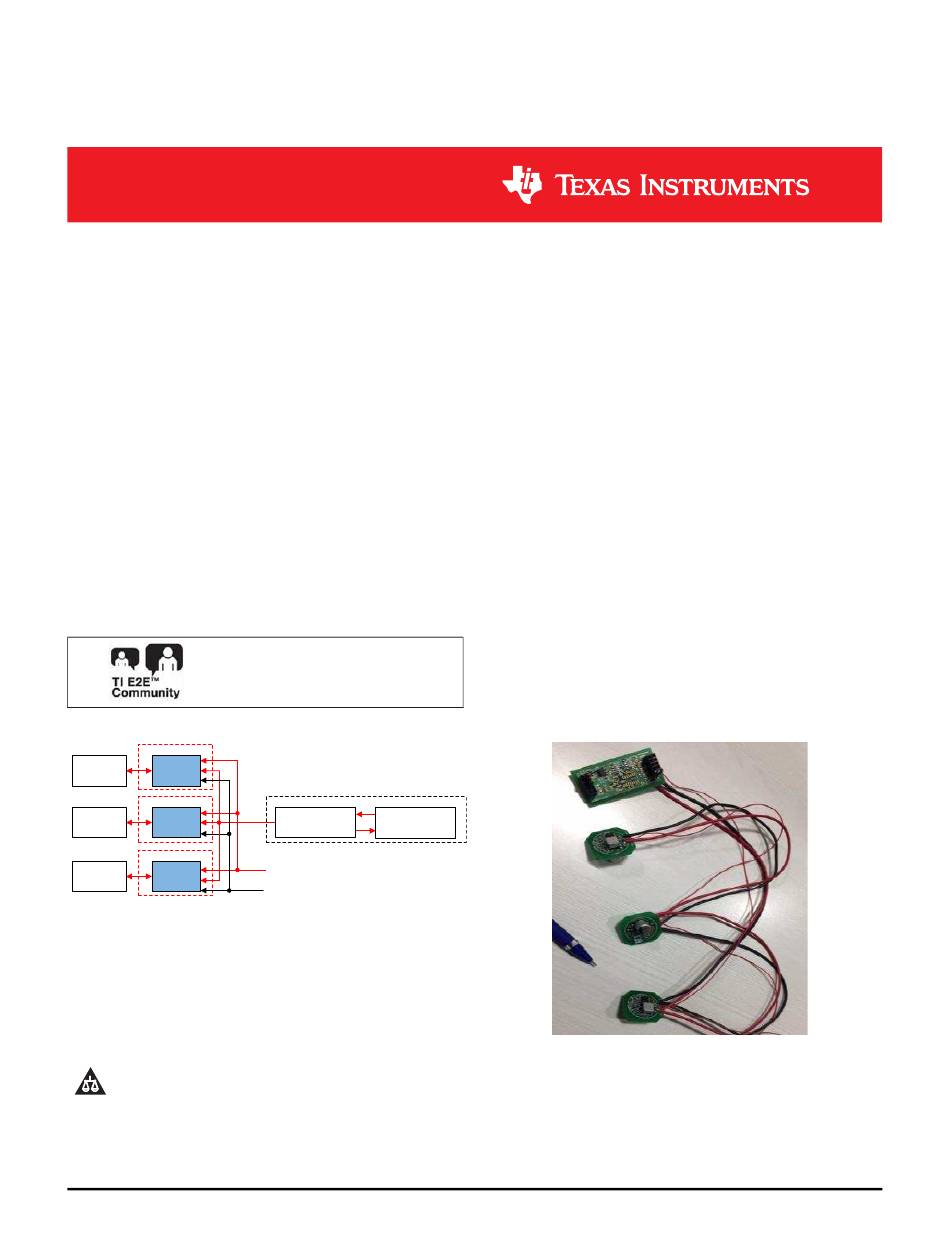

TI Designs: TIDA-01597
Automotive Ultrasonic Sensing Module Reference Design
for Park Assist
Description
This reference design provides hardware architecture
for a Park Assist System (PAS) using three highly-
integrated, system-on-chip (SoC) ultrasonic transducer
drivers. These ultrasonic transducer drivers have an
integrated signal conditioner with an advanced digital
signal processor (DSP) core. Using these integrated
features, object detection from 25 cm to 2.5 m is
achieved. The distance data is sent over a one-wire
interface (OWI) to a local electronics control unit
(ECU) where the data can be aggregated and
processed. The sensor initialization, object detection
algorithm, and software described in this design guide
provide a basic framework to help engineers working
on PAS for automotive or collision avoidance.
Resources
TIDA-01597
Design Folder
PGA460-Q1
Product Folder
ASK Our E2E Experts
TIDA-01597
Transformer
MA58M
PGA460-Q1
F14-7N
TIDA-01597
Transformer
MA58M
PGA460-Q1
F14-7N
TIDA-01597
Transformer
MA58M
PGA460-Q1
F14-7N
An IMPORTANT NOTICE at the end of this TI reference design addresses authorized use, intellectual property matters and other
important disclaimers and information.
TIDUDO4 – May 2018
Submit Documentation Feedback
Local ECU/Main ECU
TX
IO
MSP430F5529
SN65HVDA100-Q1
Launchpad
RX
OWI Transceiver
CC2640F128
12 V Load Dump Protected
GND
Automotive Ultrasonic Sensing Module Reference Design for Park Assist
Copyright © 2018, Texas Instruments Incorporated
Features
Combines Three PGA460-Q1 Devices to Detect
Objects From 25 cm to 2.5 m
Provides System Diagnostic Information
Circuitry for Level USART and TCI Interface Option
Included
22-mm Diameter Solution Size
Applications
Ultrasonic Park Assist
Collision Avoidance
1
