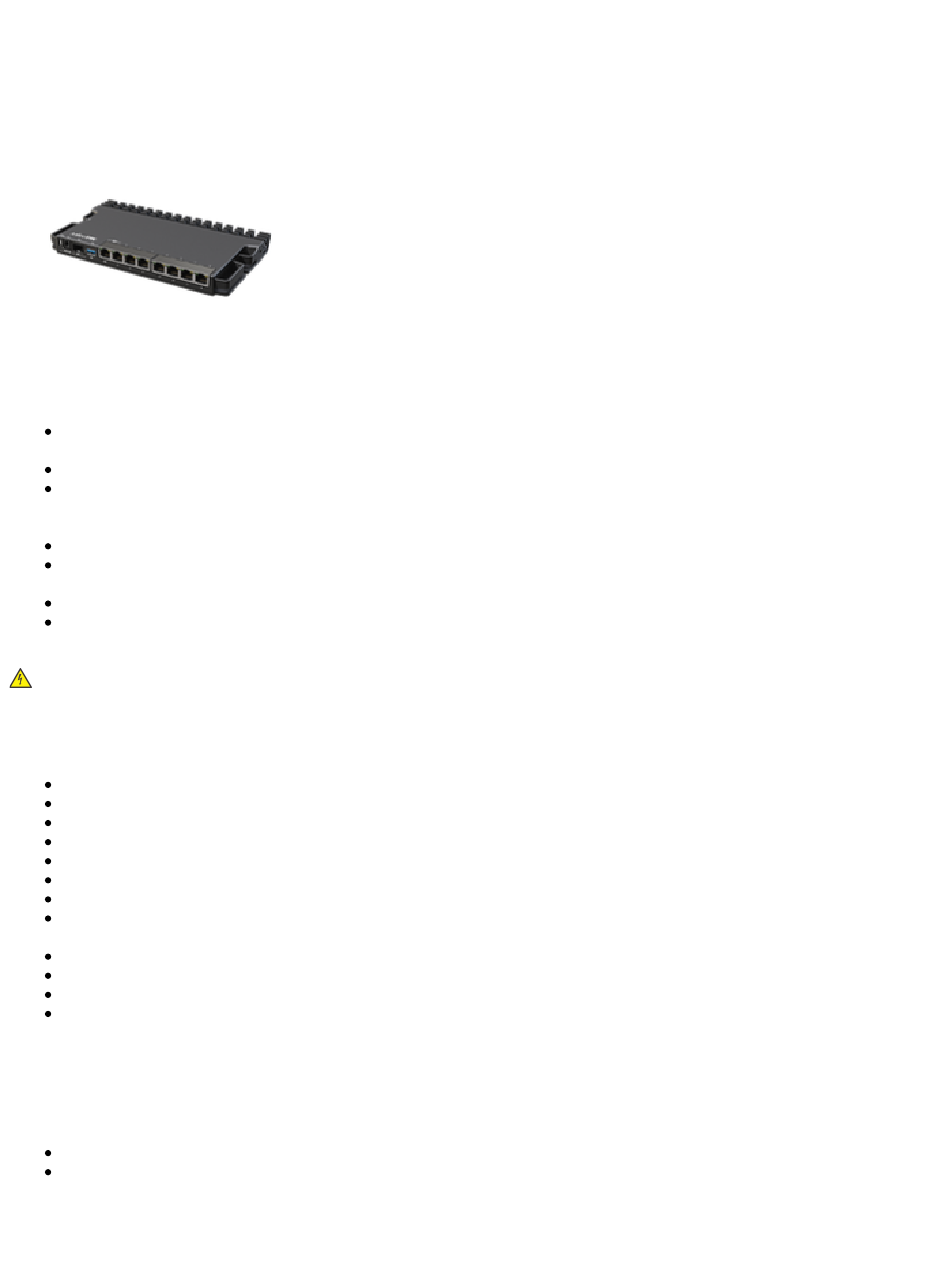

RB5009UG+S+IN
RB5009UG+S+IN

Safety Information:

Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for
preventing accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making
sure, that the Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify
the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate
at your own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take
adequate measures
 Electric shock hazard. This equipment is to be serviced by trained personnel only

Setup

Make sure your ISP is allowing hardware change and will automatically issue an IP address.
Connect your ISP cable to the first Ethernet port.
Connect your PC to any of the Ethernet ports.
Connect the device to the power source.
Use a Web browser or WinBox to connect to the default IP address of 192.168.88.1 from any port, with the username
If IP is not available, download WinBox from our webpage and use it to connect through MAC address.
Update RouterOS software to the latest version, make sure that the device has an internet connection.
If the device does not have an internet connection update software by downloading the latest version from our
/download
Find the latest software and choose your packages.
To get the architecture type of your device model, open WinBox, WebFig go to (System/Resources).
Download packages to the PC and upload them to the WinBox, WebFig, (Files) menu, and reboot the device.
Set up your password to secure the device.

Powering

The power consumption under maximum load can reach 20 W. The device accepts power from the power jack or from the first Ethernet port:
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 24-57 V DC.
The First Ethernet port accepts Power over Ethernet 24-57 V DC.

Connecting to a POE Adapter:

1.
Connect the Ethernet cable from the device to the POE port of the POE adapter.
2.
admin
 and no password.
webpage https://mikrotik.com
