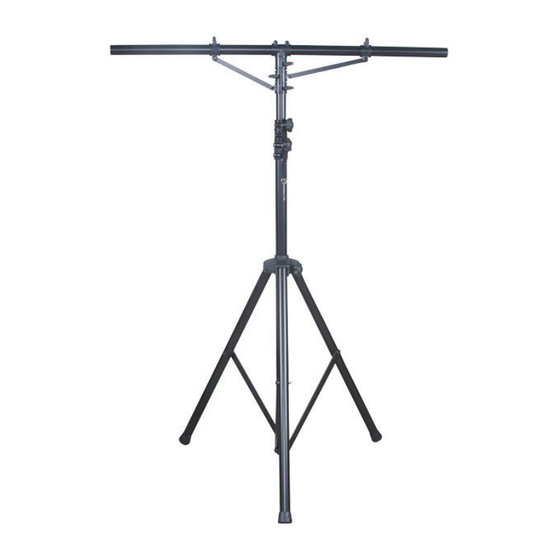

ADJ ACCU-STAND LTS2 AS User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
LTS2 AS
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACCU-STAND LTS2 AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ ACCU-STAND LTS2 AS

Summary of Contents for ADJ ACCU-STAND LTS2 AS

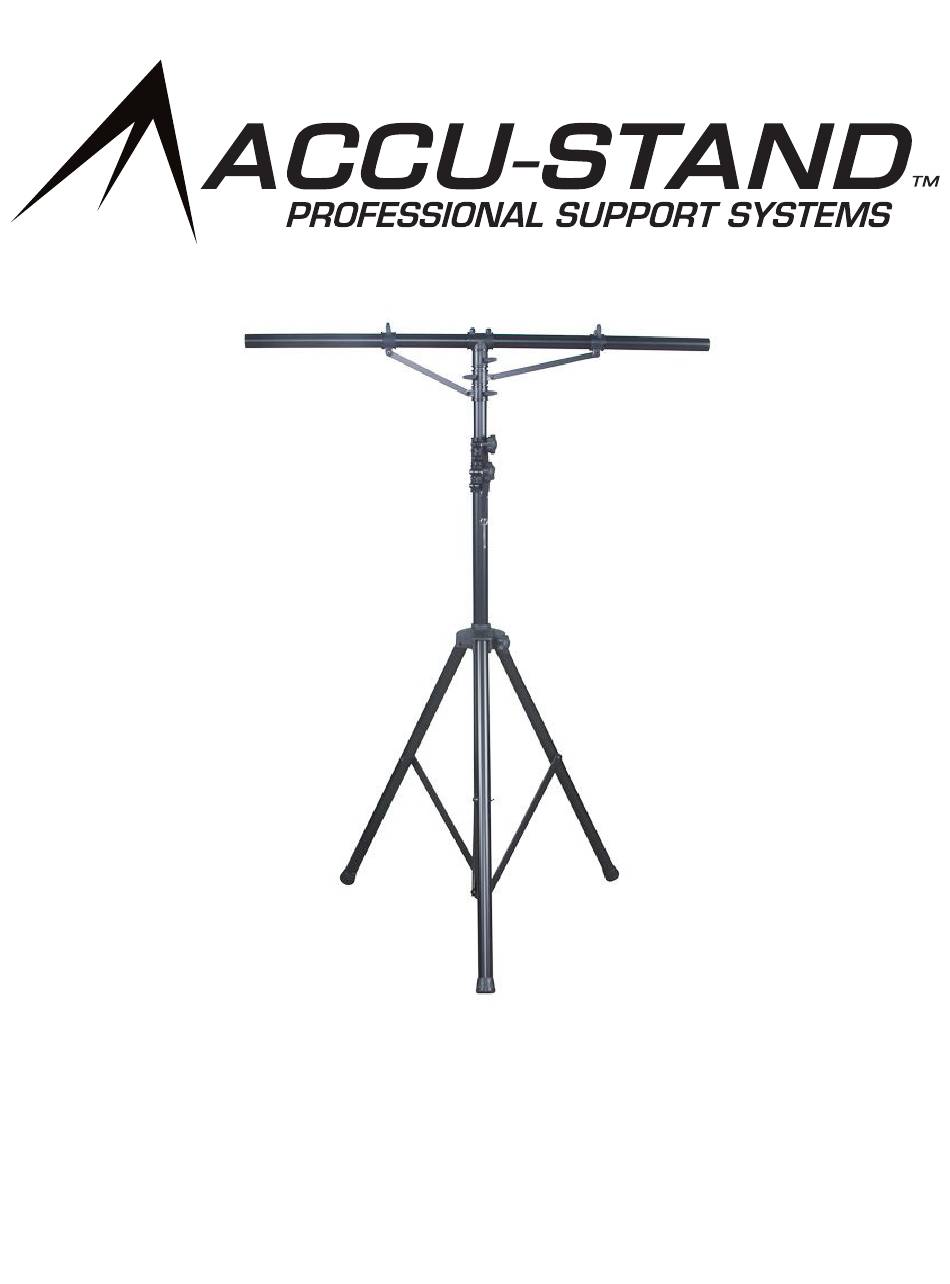

  • Page 1 LTS2 AS User Manual...
  • Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Gen Info Limited Warranty (USA Only) Safety Guidelines Overview Installation Instructions Trouble Shooting | Frequently Asked Questions Specifications | Optional Accessories Dimensional Drawings...

  • Page 4: Gen Info

    You may obtain an R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Safety Guidelines

    S A F E T Y G U I D E L I N E S To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual.

  • Page 7: Overview

    O V E R V I E W INCLUDED ITEMS • LTS2 AS stand (x1) • T-Bar (x1) • Support Bar (x2) 1. Knob A 7. Outer Pipe 2. Knob B 8. Inner Pipe 3. Knob C 9. Inlet Pipe 4.

  • Page 8: Installation Instructions

    I N S TA L L AT I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep stand minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. DO NOT INSTALL/HANG DEVICES ON STAND IF YOU ARE NOT QUALIFIED TO DO SO! AVOID INSTALLING OR MOUNTING THE STAND IN UNSTABLE LOCATIONS, SUCH AS AN UN- EVEN SURFACE OR MOVING TABLE.
  • Page 9 I N S TA L L AT I O N I N S T R U C T I O N S SETUP Loosen Knob D by turning it counter clockwise. Spread the legs by pulling up on the outer pipe until the stays extend horizontally.
  • Page 10 I N S TA L L AT I O N I N S T R U C T I O N S MOUNTING THE T-BAR The stand comes with a T-Bar for mounting optional lighting and other equipment. To install the T-Bar, vertically align the Support Bars with the T-Bar connection.

  • Page 11: Trouble Shooting | Frequently Asked Questions

    The T-Bar has an outer diameter of 1.5” (38 mm). What is the maximum height of the stand? The maximum height of the stand is 128” (3,250 mm). Are additional stands, clamps or accessories available? Yes. A variety of stands and accessories are available at www.adj.com.

  • Page 12: Specifications | Optional Accessories

    S P E C I F I C AT I O N S • Black high quality aluminum tripod stand • Single T-bar with mounting hardware • Tripod extends to 12 ft. (includes support bars) • Collapses down for easy transport •...

  • Page 13: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S 73.3” 1,861.2 mm Ø 70” Ø 1,778.2 mm 47.2” 1,200 mm 128” 3,250 mm Specifications subject to change without any prior written notice.
