COB CANNON LP200
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COB CANNON LP200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ COB CANNON LP200

Summary of Contents for ADJ COB CANNON LP200

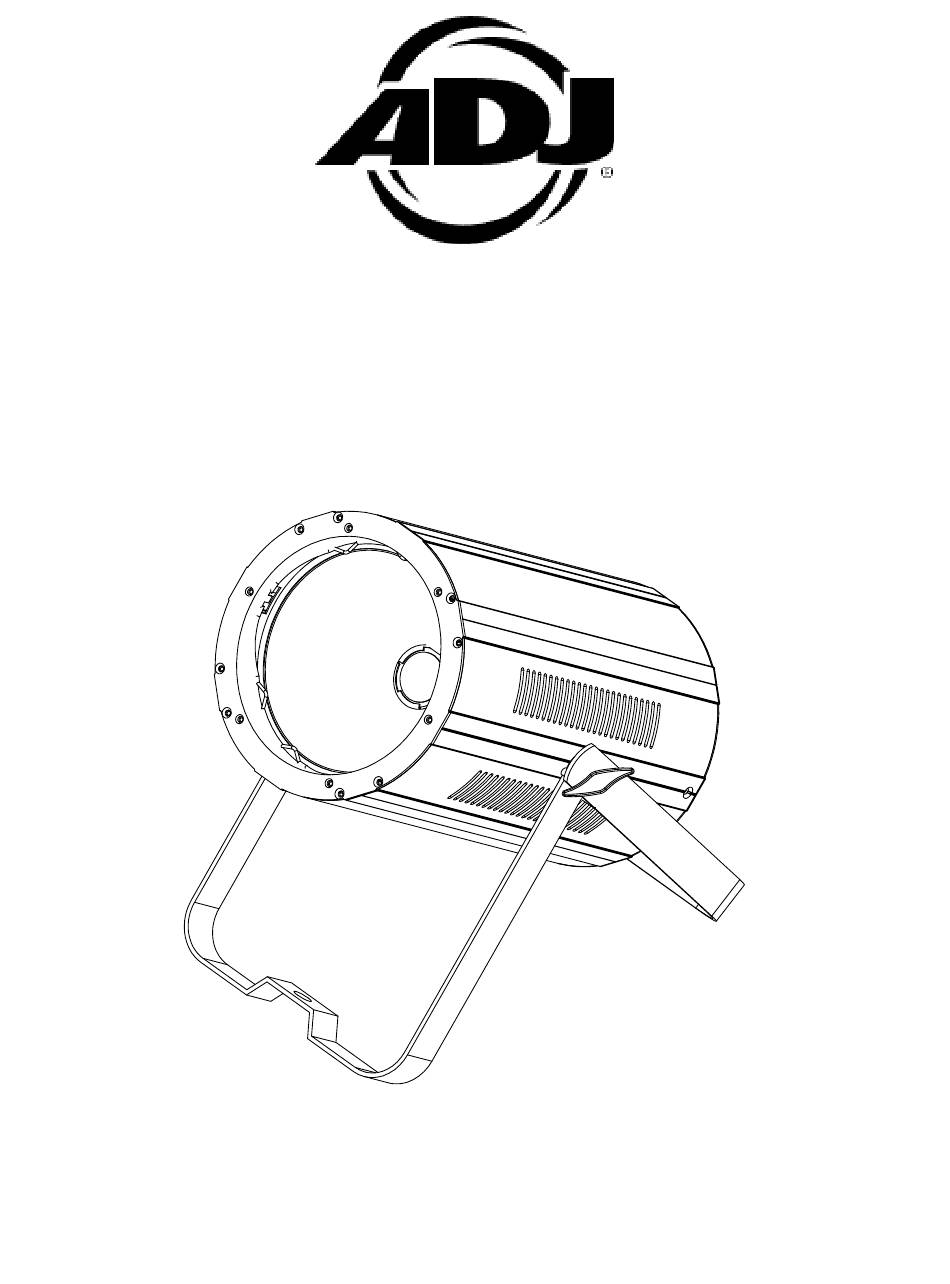

  • Page 1 COB CANNON LP200 User Manual...
  • Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Installation Accessory Installation Remote Device Management (RDM) Control Panel System Menu DMX Setup DMX Traits Color Temperature Presets Color Macros Chart Dim Modes Remote Control Guidelines IR Default Values | Editing IR Button Values...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the COB Cannon LP200 by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features

    W A R R A N T Y R E G I S T R A T I O N The COB Cannon LP200 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre- paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Guidelines

    THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL.

  • Page 8: Overview

    O V E R V I E W Display Screen Setup Button Mode Down Button Button Button Omega Omega Bracket Bracket Twist Locks Yoke Adjustment Knob Yoke Adjustment Knob Fuse Power Service Power Port Mounting Yoke...

  • Page 9: Installation

    I N S T A L L A T I O N FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).
  • Page 10 I N S T A L L A T I O N CLAMP INSTALLATION This fixture features attachment points for a mounting clamp located at the top the mounting bracket or on the Omega bracket (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure an appropriately rated clamp (not includ- ed) to the mounting bracket.
  • Page 11 I N S T A L L A T I O N STAND MOUNTING This unit can also be installed atop a tripod stand. Simply insert the threaded bolt on the top of the tripod stand through the hole in the top of the mounting yoke. Tighten the nut onto the threaded bolt to secure the mounted device in place.
  • Page 12 LEDs. This issue is not unique to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to completely prevent this issue from occurring, the guidelines below can reduce the risk of any potential damage if followed.

  • Page 13: Accessory Installation

    A C C E S S O R Y I N S T A L L A T I O N 40- AND 50-DEGREE LENSES Included with this unit are 40- and 50-degree lenses. To install these accessories, simply remove the lens retainer ring located inside the lens housing, as shown in the below left image.

  • Page 14: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 15: Control Panel

    C O N T R O L P A N E L The fixture includes an easy to navigate system menu control panel display where all necessary set- tings and adjustments are made. (See image below) • MODE: Cycles through the main menu options and/or return to previous menu without making changes.

  • Page 16: System Menu

    S Y S T E M M E N U 001 - 512 Address Set DMX address 8ch-A 8ch-B 10ch-A Ch. Mode Select DMX mode 10ch-B 12ch 13ch 16ch DMX SET 20ch Holds last used DMX setup Hold in the event that DMX signal is lost Takes all DMX channels to 0 Blackout...
  • Page 17 S Y S T E M M E N U 000 - 255 Green 000 - 255 Button 0 Blue 000 - 255 Amber 000 - 255 Lime 000 - 255 000 - 255 Green 000 - 255 Button 1 Blue 000 - 255 IR Button Colors...
  • Page 18 S Y S T E M M E N U 000 - 255 Manually adjust red Green 000 - 255 Manually adjust green Blue 000 - 255 Manually adjust blue Amber 000 - 255 Manually adjust amber Lime 000 - 255 Manually adjust lime Clr Macro 000 - 255...
  • Page 19 S Y S T E M M E N U Total hours fixture has been PwrOnHr1 xxxxxx Hours powered on, non resettable Hours since fixture has been Hours PwrOnHr2 xxxxxx Hours powered on since last reset, resettable PwrOnRst Passcode = 050 Reset power on time xxx F / xxx C Display current temp...

  • Page 20: Dmx Setup

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.
  • Page 21 D M X S E T U P DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 22: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION 10CH 10CH VALUE 12CH 13CH 16CH 20CH 000 - 255 Red, 0% to 100% 000 - 255 Red Fine 000 - 255 Green, 0% to 100% 000 - 255 Green Fine 000 - 255 Blue, 0% to 100% 000 - 255 Blue Fine 000 - 255 Amber, 0% to 100%...
  • Page 23 D M X T R A I T S CHANNEL FUNCTION 10CH 10CH VALUES 12CH 13CH 16CH 20CH Auto Programs (continued) 077 - 093 Auto Program 5 094 - 110 Auto Program 6 111 - 126 Auto Program 7 127 - 143 Auto Program 8 144 - 160 Auto Program 9 161 - 176 Auto Program 10 177 - 193 Auto Program 11...
  • Page 24 D M X T R A I T S CHANNEL FUNCTION 10CH 10CH VALUES 12CH 13CH 16CH 20CH Dim Speed (continued) 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s 9.0s 10.0s 161 - 255 Default to unit setting Dim Curves 000 - 020 Square 021 - 040 Linear 041 - 060 Inv.

  • Page 25: Color Temperature Presets

    C O L O R T E M P E R A T U R E P R E S E T S COLOR TEMP DMX VALUE 000 - 015 2300K 016 - 031 2600K 032 - 047 2800K 048 - 063 3100K 064 - 079 3400K...

  • Page 26: Color Macros Chart

    C O L O R M A C R O S C H A R T COLOR MACRO DMX VALUE COLOR TEMP GREEN BLUE AMBER LIME Macro 1 001 - 004 Macro 2 005 - 008 Macro 3 009 - 012 Macro 4 013 - 016 Macro 5...
  • Page 27 C O L O R M A C R O S C H A R T COLOR MACRO DMX VALUE COLOR TEMP GREEN BLUE AMBER LIME Macro 41 161 - 164 Macro 42 165 - 168 Macro 43 169 - 172 Macro 44 173 - 176 Macro 45...

  • Page 28: Dim Modes

    D I M M O D E S...

  • Page 29: Remote Control Guidelines

    REMOTE USAGE This device can be operated wirelessly using the ADJ UC IR remote unit. In order to control the device, the IR Remote setting in the system menu’s Personality sub-menu must be set to the “On”...
  • Page 30 R E M O T E C O N T R O L G U I D E L I N E S REMOTE FUNCTIONS The functions available on the ADJ UC IR24 remote unit are detailed below: • ON: Activates the fixture.

  • Page 31: Ir Default Values | Editing Ir Button Values

    I R D E F A U L T V A L U E S BUTTON GREEN BLUE AMBER LIME E D I T I N G I R B U T T O N V A L U E S These fixtures allow the user to create custom RGBA values and assign them to the numbered keys (0-15) on the remote control.

  • Page 32: Daisy Chain Power Linking | Cleaning And

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 33: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S...

  • Page 34: Specifications

    • Built-in color temperature presets accessible via DMX • 64 built-in color macros • 4-button OLED digital DMX display on rear panel • Compatible with the ADJ UC IR remote control (included) • LED pulse and strobe effect • Electronic Dimming: 0 - 100% •...
  • Page 35 This page intentionally left blank.
