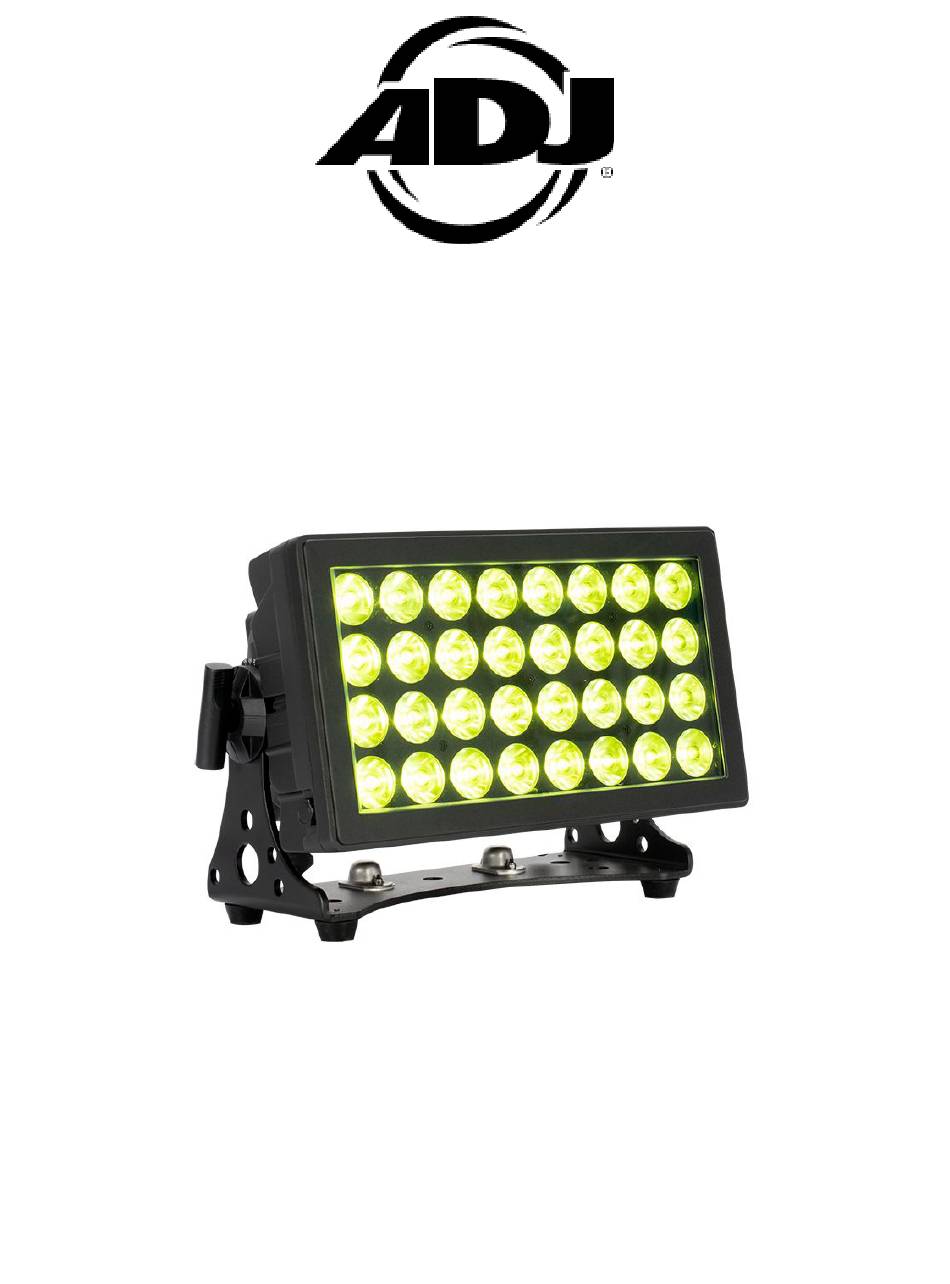

ENCORE LP32IP
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Encore LP32IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ Encore LP32IP

Summary of Contents for ADJ Encore LP32IP

  • Page 1 ENCORE LP32IP User Manual...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Installation Wireless Setup Remote Device Management (RDM) Control Panel System Menu DMX Set Up DMX Traits Pixel Zones Color Macros Chart...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the Encore LP32IP by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features

    W A R R A N T Y R E G I S T R A T I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.

  • Page 8: Overview

    O V E R V I E W Mode Display Enter Down Button Button Screen Button Button Power Power Yoke Yoke Adjustment Adjustment Knob Knob Safety Mounting Omega Safety Cable Yoke Bracket Cable Loop Mount Loop...

  • Page 9: Installation

    I N S T A L L A T I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of the unit and any attached accessories without any deformation.
  • Page 10 I N S T A L L A T I O N CLAMP MOUNTING This fixture features two mounting points for the attachment of an Omega bracket, which are located on the adjustable mounting yoke. Additionally, the unit also features two safety cable loops on the rear face (see the illustration below).
  • Page 11 I N S T A L L A T I O N STAND MOUNTING This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the Omega bracket.
  • Page 12 LEDs. This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with lighting fix- tures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.
  • Page 13 I N S T A L L A T I O N NOTICE: The maximum ambient operational temperature for this lighting fixture is 113˚ F (45˚ C). Do not place this lighting fixture in an enviroment where the temperatures exceed this value. This will allow the fixture to run at its best and help prolong the fixture life.
  • Page 14 I N S T A L L A T I O N ACCESSORY INSTALLATION Available accessories include a set of barndoors, as well as multiple frost filters. 1. To install the frost filter, slot the filter into place directly in front of the device’s LED array. 2.

  • Page 15: Wireless Setup

    W I R E L E S S S E T U P There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device: •...

  • Page 16: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 17: Control Panel

    C O N T R O L P A N E L The Encore LP32IP features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the SETUP button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options.

  • Page 18: System Menu

    S Y S T E M M E N U Set DMX ad- 001 - 512 Address dress 13ch 16ch Select DMX Ch. Mode channel mode 32ch 35ch 41ch 44ch 64ch Unit holds last DMX SET channel values Hold when DMX sig- nal is lost Unit takes all channels to 0...
  • Page 19 S Y S T E M M E N U Standard Stage Dim Mode Archi Theatre Stage 2 Dim Speed 0.1s - 10s Linear Square Dim Curve Inv. Squa S Curve 900, 1000, 1100, 1200, 1300, 1400, 1500, 2500, LED Refresh 4000, 5000, 10k, 15k, 20k, 25k Screen saver 1 - 10...
  • Page 20 S Y S T E M M E N U On / Off USB Powr Yes / No S Update Update software PERSONALITY Service Passcode = 050 Restore to fac- (continued) (continued) (continued) Yes / No Restore tory default; passcode = 011 000 - 255 Blue 000 - 255...
  • Page 21 S Y S T E M M E N U xxx F / xxx C xxx° Max temp since Max Temp 1 xxx F / xxx C last reset Temp All time max Max Temp 2 xxx F / xxx C temp;...

  • Page 22: Dmx Set Up

    D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 23 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.

  • Page 24: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH 000 - 255 All Red, 0% to 100% All Red Fine 000 - 255 All Green, 0% to 100% 000 - 255 All Green Fine 000 - 255...
  • Page 25 D M X T R A I T S CHANNEL FUNCTION VALUES 4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH Red 5 Fine 000 - 255 Green 5, 0% to 100% 000 - 255 Green 5 Fine 000 - 255 Blue 5, 0% to 100% 000 - 255 Blue 5 Fine...
  • Page 26 D M X T R A I T S CHANNEL FUNCTION VALUES 4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH Color Temperature Macros 001 - 042 2700K 043 - 085 3200K 086 - 128 4000K 129 - 171 5600K 172 - 214 6500K...
  • Page 27 D M X T R A I T S CHANNEL FUNCTION VALUES 4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH Dim Mode 000 - 020 Default to Unit Setting 021 - 040 Standard 041 - 060 Stage 061 - 080 081 - 100 Architectural 101 - 120...
  • Page 28 D M X T R A I T S CHANNEL FUNCTION VALUES 4CH 7CH 8CH 13CH 16CH 32CH 35CH 41CH 44CH 64CH Refresh Rates (continued) 061 - 075 1200 Hz 076 - 090 1300 Hz 091 - 105 1400 Hz 106 - 120 1500 Hz 121 - 135...

  • Page 29: Pixel Zones

    P I X E L Z O N E S...

  • Page 30: Color Macros Chart

    C O L O R M A C R O S C H A R T COLOR MACRO DMX VALUES GREEN BLUE LIME NUMBER 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036...
  • Page 31 C O L O R M A C R O S C H A R T COLOR MACRO DMX VALUES GREEN BLUE LIME NUMBER 141 - 144 145 - 148 149 - 152 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176...

  • Page 32: Dim Speeds

    D I M S P E E D S DMX VALUES DELAY TIME 0.1 sec 0.2 sec 0.3 sec 0.4 sec 0.5 sec 0.6 sec 0.7 sec 0.8 sec 0.9 sec 1.0 sec 1.5 sec 2.0 sec 3.0 sec 4.0 sec 5.0 sec 6.0 sec 7.0 sec...

  • Page 33: Dim Modes

    D I M M O D E S DIMMER 100% Time (ms) Rise Time Down Time 0 Sec 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100...

  • Page 34: Primary-Secondary Set Up | Multi Unit Power Linking

    P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 35: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 36: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S FIXTURE ONLY 13.9in. [353.4mm] 13.0in. [328.9mm] 6.5in. [165.5mm] 6.1in. [155.5mm] Drawings not shown to scale.
  • Page 37 D I M E N S I O N A L D R A W I N G S BARNDOOR INSTALLED 15.6 in (395mm) 10.1 in (258mm) Drawings not shown to scale.

  • Page 38: Specifications

    S P E C I F I C A T I O N S Light Source: • LED: 32 x 20W RGBL LED’s (50,000 hr.) • Beam Angle: 11°, 25° with Frost Filter • Field Angle: 23.7°, 47° with Frost Filter •...
