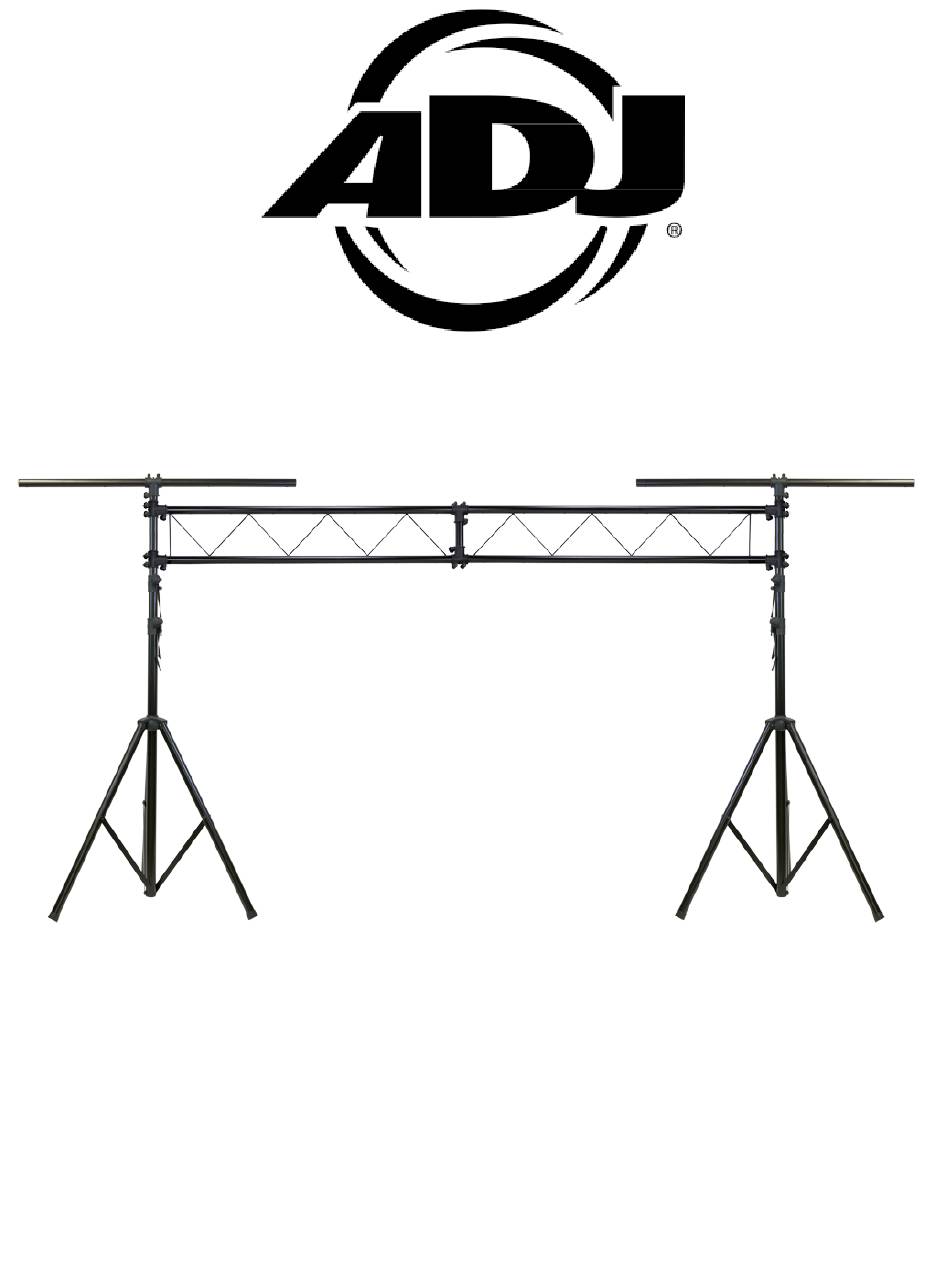

  • Page 1 LTS-50T user manual...
  • Page 2 ©2018 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Instructions and Guidelines Overview Installation Instructions Trouble Shooting Tips Frequently Asked Questions Technical Specifications...

  • Page 4: General Information

    You may obtain a R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.

  • Page 6: Safety Instructions And Guidelines

    To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation.
  • Page 7 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE DEVICES TO RAIN AND/OR MOISTURE! WHEN USING STAND OUTISDE UNDER STRONG WIND, TAKE APPROPRIATE MEASURES TO PREVENT IT FROM FALLING DOWN! TIGHTEN EACH KNOB AND BOLT SECURELY!

  • Page 8: Overview

    O V E R V I E W INCLUDED ITEMS (2) LTS Stand (6) Slide Mount T-Collar (1) Center “I-Beam” Support Rod (2) I-Beam Connector (4) Knob for Beam Connector (2) 5’ Truss I-Beam Section 1. Knob A 6. Leg 11.

  • Page 9: Installation Instructions

    I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep stand minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. DO NOT INSTALL/HANG DEVICES ON STAND IF YOU ARE NOT QUALIFIED TO DO SO! AVOID INSTALLING OR MOUNTING THE STAND IN UNSTABLE LOCATIONS, SUCH AS AN UNEVEN SURFACE OR MOVING TABLE.
  • Page 10 I N S T A L L A T I O N I N S T R U C T I O N S (continued) SETUP Loosen Knob D by turning it counter clockwise. Spread the legs by pulling up on the outer pipe until the stays extend horizontally.
  • Page 11 Assembling the Truss I-Beam The stand comes with a Truss I-Beam for mounting optional lighting and other equipment. To use the Truss, insert 2 I-beam connectors into one end of the I-Beam Support. Insert the connector knobs through the I-Beam and fasten with the wing nuts. Assemble the Support Rod by inserting a Slide Mount T-Collar onto each end of the Support Rod.
  • Page 12 Attaching the Truss I-Beam and T-Bar Slide two Slide Mount T-Collars onto the center post of each stand. Insert one end of the truss assembly into the Slide Mount T-Collars and place another Slide Mount T-Collar on the very top of each stand’s center post.
  • Page 13 MOUNTING OPTIONAL LIGHTING AND OTHER ACCESSORIES Lighting and other optional accessories may be mounted to the T-Bar as well. For installation instructions, please refer to the mounting instructions provided with the fixtures that are to be installed.

  • Page 14: Trouble Shooting Tips

    118.1” (3,000 mm.) 5. Are additional stands, clamps or accessories available? Yes. A variety of stands and accessories are available at www.adj.com. O P T I O N A L A C C E S S O R I E S...

  • Page 15: Technical Specifications

    T E C H N I C A L S P E C I F I C A T I O N S Total Height Range: 63.8” (1,620 mm) to 128” (3,250 mm) Recommended maximum height: 128” (3,250 mm.) Weight capacity: 200 lbs. (90.7 kg) I-Beam Diameter: 1.50”...
