  • Page 1 ENCORE LB15IP User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Installation Manual Tilt Adjustment Accessory Installation Remote Device Management (RDM) Wifly Control Control Panel System Menu DMX Setup DMX Traits Pixel Zones Color Macros Chart Dim Modes Daisy Chain Power Linking | Cleaning and Maintenance Dimensional Drawings...
  • Page 4: Introduction

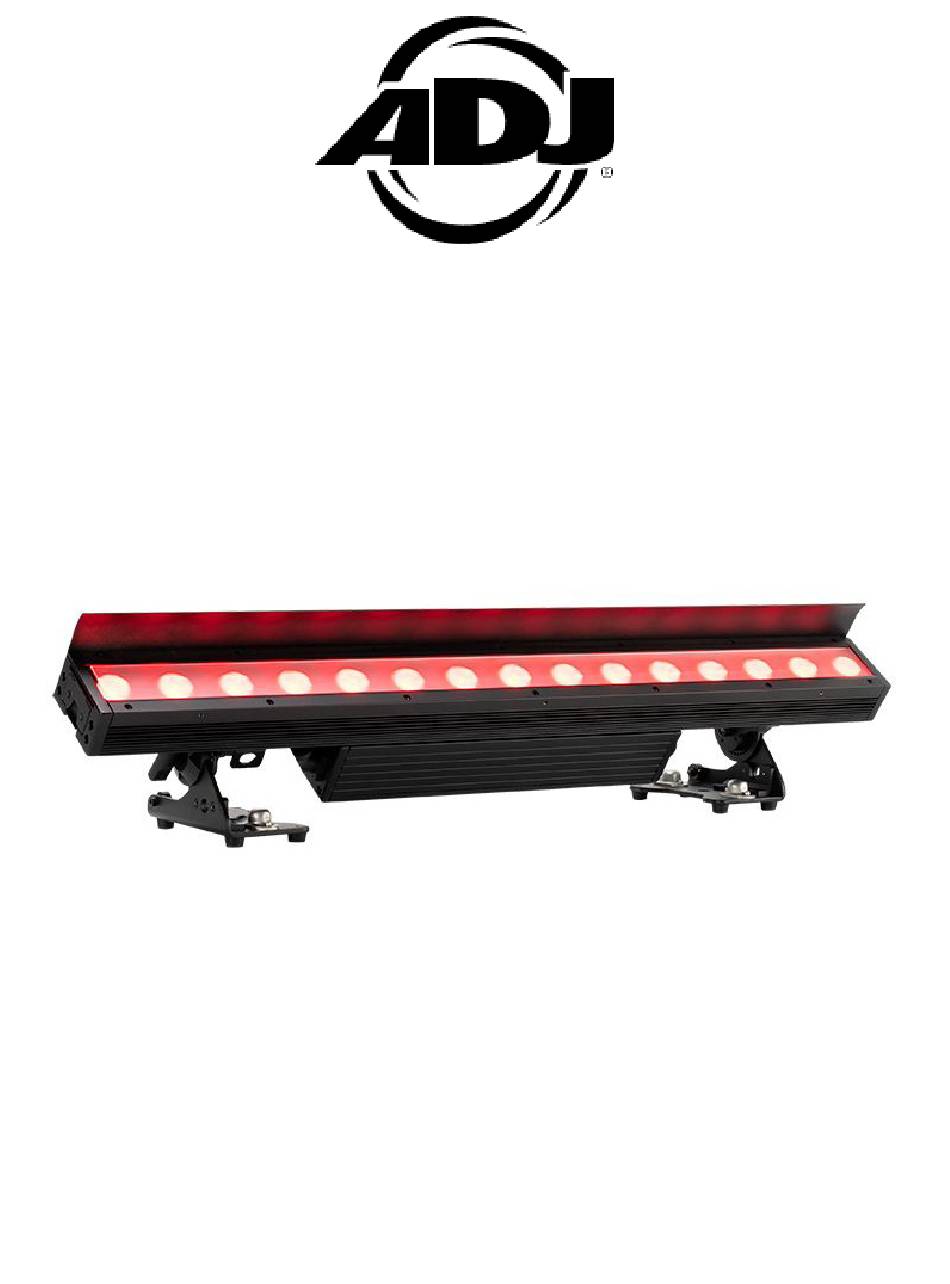

    Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ Encore LB15IP is a DMX intelligent, IP65-rated LED bar. To optimize the per- formance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit.
  • Page 5: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.
  • Page 6: Warranty Registration | Features

    FEATURES The ADJ Encore LB15IP is a versatile LED bar with fifteen (15) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), and a 12.4-degree beam angle. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events.
  • Page 7: Safety Guidelines

    THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL.
  • Page 8: Overview

    OVERVIEW Bracket Mount Adjustment Knob Bracket Safety Bracket Mounting Cable Mounting Point Loop Point Power Mode Display Enter Power Button Screen Button Down Button Button...
  • Page 9: Installation

    INSTALLATION FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS). MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER) DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
  • Page 10 INSTALLATION CLAMP INSTALLATION This fixture features a mounting point on the foot of each bracket for the attachment of a mounting clamp. There is also a loop for the attachment of a safety cable located on each bracket (see the illustration below).
  • Page 11 LEDs. This issue is not unique to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to completely prevent this issue from hap- pening, the guidelines below can reduce the risk of any potential damage if followed.
  • Page 12: Manual Tilt Adjustment

    MANUAL TILT ADJUSTMENT The bar angle is adjustable manually using the brackets located on each side of the unit. Simply loosen the tilt adjustment knobs attached to each mounting bracket and adjust the bracket accord- ingly. After making your desired set up, securely tighten the tilt adjustment knobs. The image below illustrates a 90-degree configuration.
  • Page 13: Accessory Installation

    ACCESSORY INSTALLATION FROST FILTER In order to install the included frost filter, find the latch located at the end of the light bar. Press down on the latch, and continue to hold it down as the frost filter is inserted into place in the lens frame slot, as shown in the illustration below.
  • Page 14: Remote Device Management (Rdm)

    REMOTE DEVICE MANAGEMENT (RDM) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely.
  • Page 15: Wifly Control

    WIFLY GUIDELINES WIRELESS SETUP There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, met- al, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device: •...
  • Page 16: Control Panel

    CONTROL PANEL The fixture includes an easy to navigate system menu control panel display where all necessary set- tings and adjustments are made. (See image below) • MODE: Cycles through the main menu options and/or return to previous menu without making changes.
  • Page 17: System Menu

    SYSTEM MENU 001 - 512 Address Set DMX address 13ch 16ch Ch. Mode Set DMX channel mode 60ch 63ch 69ch 72ch DMX SET 120ch Holds last settings if Hold DMX signal is lost Takes all channels to 0 if Blackout DMX signal is lost Defaults to manual No DMX...
  • Page 18 SYSTEM MENU Standard Stage Dim Mode Archi. Theatre Stage 2 Dim Speed 0.1s ~ 10s Linear Square Dim Curve Inv. Squa. S. Curve 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, LED Rfrsh 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz Save Dlay 1-10 Display Off, 1min-10min...
  • Page 19 SYSTEM MENU On / Off USB Power PERSONALITY Service Software Update Yes / No Passcode = 050 (continued) (continued) Yes / No Restore 000 - 255 Manually adjust red Blue 000 - 255 Manually adjust green Green 000 - 255 Manually adjust blue Lime 000 - 255...
  • Page 20 SYSTEM MENU Fan1 RPM xxxx Fan Info Fan2 RPM xxxx INFO Green Displays current DMX (continued) DMX Values value for each channel AutoProg SoftVers x.xx...
  • Page 21: Dmx Setup

    DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. Data Cable (DMX Cable) Requirements (For DMX Operation):The Encore LB15IP can be con- trolled via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX controller require a 5-pin XLR connector for data input and data output.
  • Page 22 DMX SETUP DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller.
  • Page 23: Dmx Traits

    DMX TRAITS CHANNEL FUNCTION VALUE 000 - 255 All Red, 0% to 100% All Red Fine 000 - 255 All Green, 0% to 100% 000 - 255 All Green Fine 000 - 255 All Blue, 0% to 100% 000 - 255 All Blue Fine 000 - 255 All Lime, 0% to 100%...
  • Page 24 DMX TRAITS CHANNEL FUNCTION VALUES Green4 Fine 000 - 255 Blue4, 0% to 100% 000 - 255 Blue4 Fine 000 - 255 Lime4, 0% to 100% 000 - 255 Lime4 Fine 000 - 255 Red5, 0% to 100% 000 - 255 Red5 Fine 000 - 255 Green5, 0% to 100%...
  • Page 25 DMX TRAITS CHANNEL FUNCTION VALUES Lime8, 0% to 100% 000 - 255 000 - 255 Lime8 Fine Red9, 0% to 100% 000 - 255 Red9 Fine 000 - 255 Green9, 0% to 100% 000 - 255 Green9 Fine 000 - 255 Blue9, 0% to 100% 000 - 255 Blue9 Fine...
  • Page 26 DMX TRAITS CHANNEL FUNCTION VALUES 000 - 255 Red13 Fine Green13, 0% to 100% 000 - 255 Green13 Fine 000 - 255 Blue13, 0% to 100% 000 - 255 Blue13 Fine 000 - 255 Lime13, 0% to 100% 000 - 255 Lime13 Fine 000 - 255 Red14, 0% to 100%...
  • Page 27 DMX TRAITS CHANNEL FUNCTION VALUES Shutter, Strobe 000 - 031 LEDs Off 032 - 063 LEDs On 064 - 095 Strobe effect, slow to fast 096 - 127 LEDs On 128 - 159 Pulse effect in sequences 160 - 191 LEDs On 192 - 223 Random strobe effect, slow to fast...
  • Page 28 DMX TRAITS CHANNEL FUNCTION VALUES Dim Mode 000 - 020 Default to unit setting 021 - 040 Standard 041 - 060 Stage 061 - 080 081 - 100 Architectural 101 - 120 Theatre 121 - 140 Stage 2 Dim Speed 0.1s 0.2s 0.3s...
  • Page 29 DMX TRAITS CHANNEL FUNCTION VALUES Dim Curves 000 - 020 Linear 021 - 040 Square 041 - 060 Inv. Squa. 061 - 080 S. Curve 081 - 255 No function Refresh Rates 000 - 015 Default to unit setting 016 - 030 900 Hz 031 - 045 1000 Hz...
  • Page 30: Pixel Zones

    PIXEL ZONES PIXEL FLIP OFF PIXEL FLIP ON...
  • Page 31: Color Macros Chart

    COLOR MACROS CHART COLOR DMX VALUE GREEN BLUE LIME MACRO NO. 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036 037 - 040 041 - 044 045 - 048 049 - 052...
  • Page 32 COLOR MACROS CHART COLOR DMX VALUE GREEN BLUE LIME MACRO NO. 145 - 148 149 - 152 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188 189 - 192 193 - 196...
  • Page 33: Dim Modes

    DIM MODES...
  • Page 34: Daisy Chain Power Linking | Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 35: Dimensional Drawings

    DIMENSIONAL DRAWINGS WITHOUT GLARE SHIELD 6.2in (158.0mm) 3.3in 4.7in 36.0in (915.0mm) (85.0mm) (120.5mm) 3.5in 6.0in (88.0mm) (152.0mm) 15.7in (400.0mm) 31.7in (806.0mm) 28.3in (718.0mm) 25.7in (653.0mm) 23.1in (588.0mm) GLARE SHIELD INSTALLED (same as above unless otherwise stated) 8.0 in (202.5mm) 3.9 in (99.5mm) 6.5 in (165.0mm)
  • Page 36: Specifications

    • Glare Shield • Locking Outdoor Power Cord OPTIONAL ACCESSORIES: • ELB15L20: 20° frost filter for Encore LB15IP • ELB15L60: 60° frost filter for Encore LB15IP • ELB15L100: 100° frost filter for Encore LB15IP Specifications and manual are subject to improvement without prior written notice.
