INSTALLATION INSTRUCTIONS
VOLT
®
VOLT

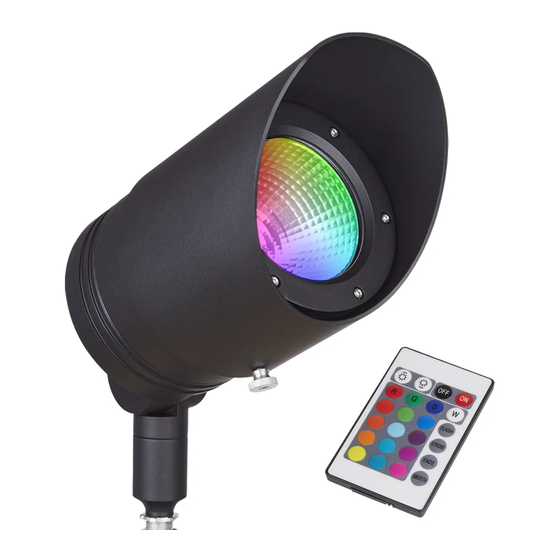

RGBW Max All-Star Integrated LED Spotlight
®
VAL-2045-ABK
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2020, VOLT
customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Volt RGBW Max All-Star VAL-2045-ABK
Summary of Contents for Volt RGBW Max All-Star VAL-2045-ABK
- Page 1 VAL-2045-ABK Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT RGBW Max All-Star Integrated LED Spotlight ® VAL-2045-ABK Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Product Dimensions
Package Contents A. (1) Fixture Body C. (1) IR Remote B. (1) Allen Wrench Products Model # Input Model Input Voltage Watt Current 15W Spotlight 1.2A Product Dimensions 10.5” 6.25” 5.6” customersupport@voltlighting.com • 813.978.3700 - 3 -... -
Page 4: Surface Mount
INSTALLATION INSTRUCTIONS VOLT RGBW Max All-Star Integrated LED Spotlight ® VAL-2045-ABK Surface Mount Mark points for Anchors Mark three points on the mounting surface using the holes on the base as guides. Fixture Body These marks will be used for anchors. -
Page 5: Wire Connection
Wire Connection Supply Wire Wire Connectors from Fixture Main Supply Cable Pigtail Strip both leads from the luminaire pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. Adjust Fixture Body Using the Allen wrench, loosen the knuckle to adjust the fixture to the Fixture Body... - Page 6 INSTALLATION INSTRUCTIONS VOLT RGBW Max All-Star Integrated LED Spotlight ® VAL-2045-ABK Stake Mount Remove Base Unscrew the base and remove it from the fixture body. Fixture Body Base Install Stake and Conduit Ground Level Stabilizer Grid Conduit Stake Dig a hole in the ground for the conduit runs and the stake. Install the conduit.
- Page 7 Remove Cap from Stake Remove the cap from the stake Screw by loosening the set screws. Stake Install Cap to Fixture Thread the cap onto the fixture body and hand tighten until Fixture snug. customersupport@voltlighting.com • 813.978.3700 - 7 -...
- Page 8 INSTALLATION INSTRUCTIONS VOLT RGBW Max All-Star Integrated LED Spotlight ® VAL-2045-ABK Wire Connection and Install Fixture to Stake Allow enough wire from the fixture for adjustment purposes. Strip both leads from the fixture pigtail. Using two UL listed wire Screw...
- Page 9 IR Remote An IR Remote is suitable for this fixture. Please refer to the following instructions for usage and battery replacement. Remove Plastic Film Remove the plastic film from the IR remote before use. Backing IR Remote CR2025 OPEN PUSH RELEASE Plastic Film Remove...
-
Page 10: Ir Remote Functions
INSTALLATION INSTRUCTIONS VOLT RGBW Max All-Star Integrated LED Spotlight ® VAL-2045-ABK IR Remote Functions NOTE: When using the remote make sure it is pointed at the sensor on the back of the fixture so it operates properly. 1. On/Off 2. Brightness Control 3. -
Page 11: Replace Battery
Replace Battery Push the side of the battery bracket and carefully remove it from the IR remote. Replace the battery and then insert the IR Remote battery bracket back into the IR Backing remote. Replacement Battery Style: CR2025 Button Battery CR2025 OPEN PUSH... - Page 12 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2020, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
