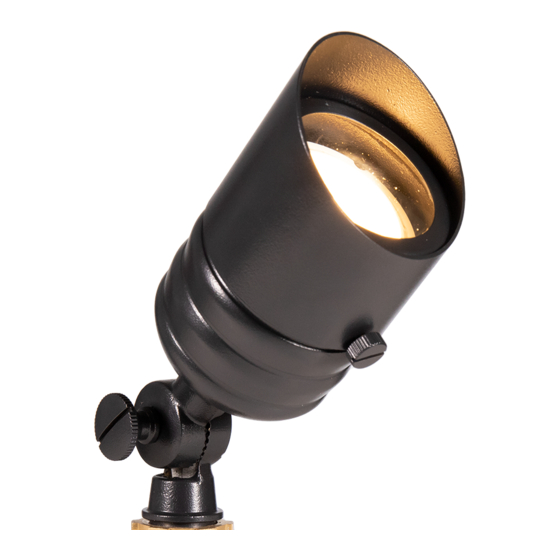

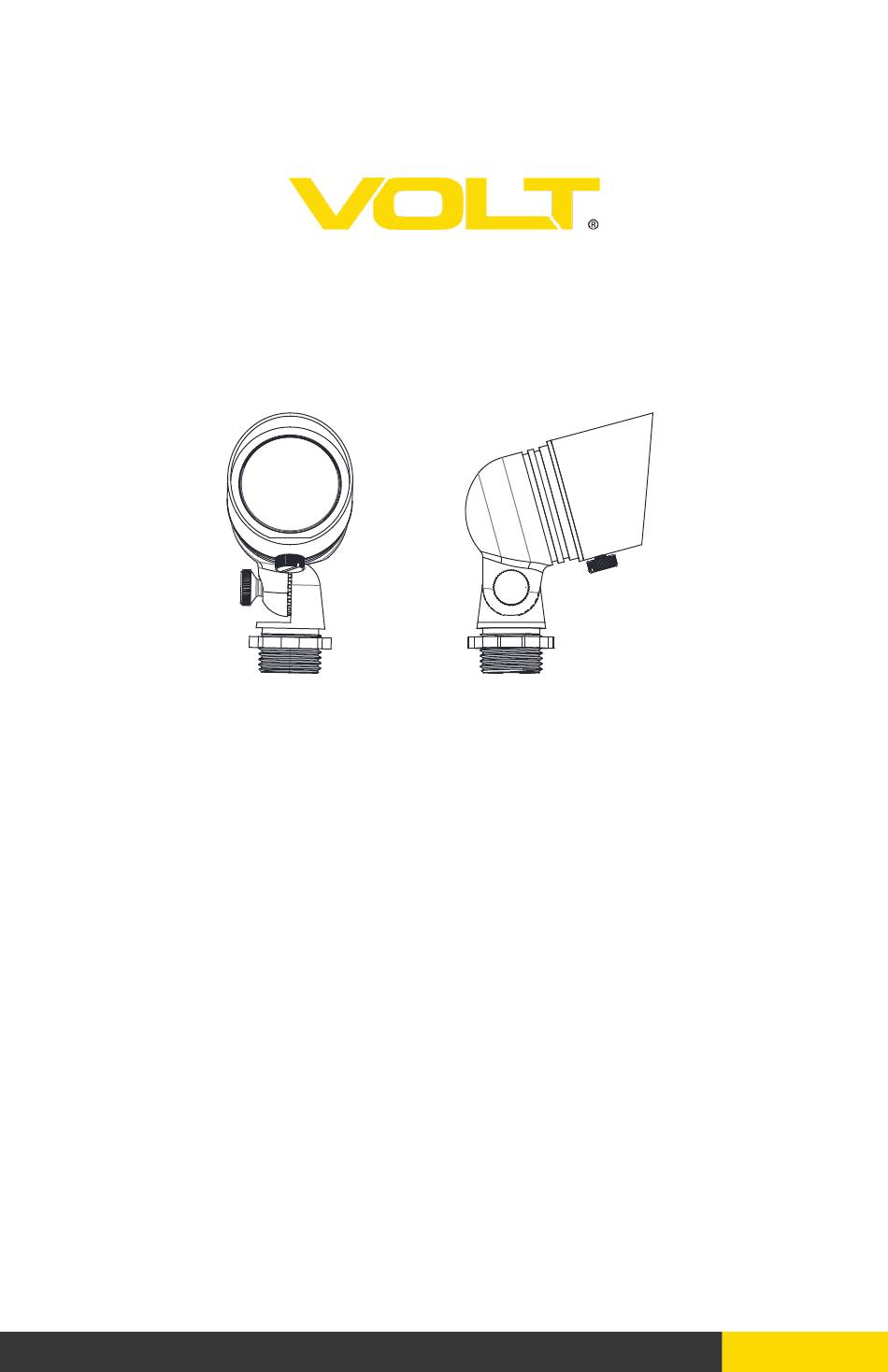

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Mini Brass Spotlight (Bronze) ® ITEM: VAL-2015-BBZ 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Mini Brass Spotlight (Bronze) - VAL-2015-BBZ ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body PARTS REQUIRED A. Mounting Accessory B. MR11 Lamp PRODUCT DIMENSIONS 2.76” 1.65” 0.54” REMOVE GLARE GUARD Loosen the set screw and remove the glare guard from the Fixture Body fixture. Glare Guard Set Screw 813.978.3700 •...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Mini Brass Spotlight (Bronze) - VAL-2015-BBZ ® Install MR11 Lamp Insert the MR11 lamp with correct wattage and type marked on fixture label. MR11 Lamp CAUTION: Do not ex- Fixture Socket ceed maximum wattage marked on luminaire label.
- Page 5 Install Fixture to Stake Clear away an area in the ground Wireway Slot at the wireway slot on top of the Fixture stake. Lay the luminaire pigtail Pigtail into the wireway slot and screw the fixture on to the stake. Tight- en until snug.
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
