INSTALLATION INSTRUCTIONS
VOLT
Line Voltage Landscape Lighting
®
VOLT

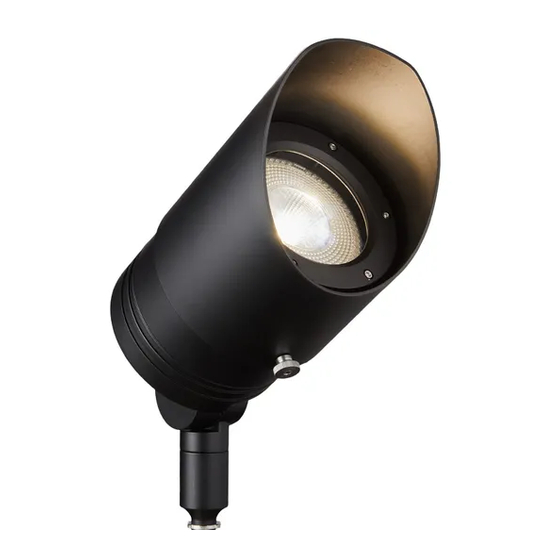

Max All-Star 120V Lamp-Ready Spotlight
®
VAL-2044-L-ABK
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2018, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAL-2044-L-ABK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Volt VAL-2044-L-ABK

  • Page 1 VAL-2044-L-ABK Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2018, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
  • Page 2 INSTALLATION INSTRUCTIONS VOLT Line Voltage Landscape Lighting ® VOLT Max All-Star 120V Lamp-Ready Spotlight ® Important: Please Read Before Installation 1. This LED Floodlight uses the latest in solid state lighting technology for long life, low maintenance, and high efficiency.
  • Page 3 Package Contents A. (1) Stake B. (1) Fixture Product Dimensions 7.75” 6.25” 7.75” Remove Glare Guard Loosen the set screw and remove the glare guard from the fixture body. Glare Guard Set Screw Fixture Body customersupport@voltlighting.com • 813.978.3700 - 3 -...
  • Page 4 INSTALLATION INSTRUCTIONS VOLT Line Voltage Landscape Lighting ® VOLT Max All-Star 120V Lamp-Ready Spotlight ® Remove Lens Loosen Allen screws to remove the washers and the lens from Lens the fixture body. Allen Screw Washer Fixture Body Install Lamp Insert the bulb with the correct...
  • Page 5 Install Glare Guard Install the glare guard back onto the fixture body and secure with previously removed set screw. Hand Glare Guard tighten until snug. Set Screw Fixture Body Install Stake and Conduit Ground Level Stabilizer Conduit Grid Stake Dig a hole in the ground for the conduit runs and the stake. Install the conduit.
  • Page 6 INSTALLATION INSTRUCTIONS VOLT Line Voltage Landscape Lighting ® VOLT Max All-Star 120V Lamp-Ready Spotlight ® Remove Cap from Post Remove the cap from the stake by loosening the set screws. Set Screw Stake Install Cap to Fixture Thread the cap onto the fixture body and hand tighten until snug.
  • Page 7 Wire Connection and Fixture Installation Allow enough wire from the fixture for adjustment purposes. Connect the wires from the fixture into the wiring terminal. The white wire goes to the “Neutral” terminal; the Set Screw black wire goes to the “Live” Fixture terminal;...
  • Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2018, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
