INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT
®

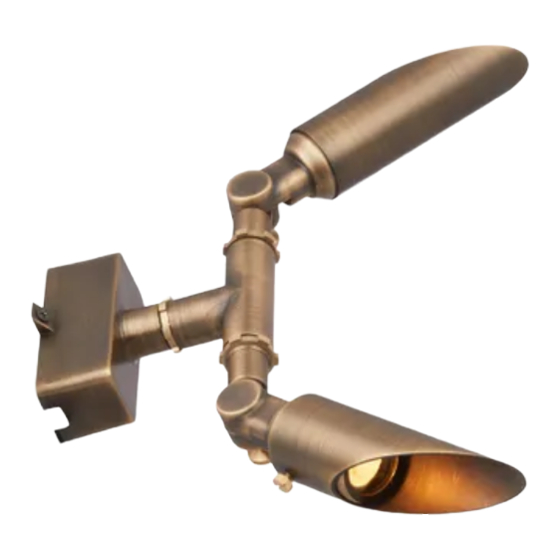

Tri-Hub Ultra-Slim Brass Up/Down Light
VAL-2103-0-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2021, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Volt VAL-2103-0-BBZ
Summary of Contents for Volt VAL-2103-0-BBZ
- Page 1 VAL-2103-0-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT ® Tri-Hub Ultra-Slim Brass Up/Down Light VAL-2103-0-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. Fixture Body B. Mounting Hardware C. Grommet D. Tools Parts Required (sold separately) A. (2) MR11 Bulbs Product Dimensions 2.5” 1.5” 1.5” 2.3” 4.27” 5” 4.3” 3.8” 6.2” 2.1” customersupport@voltlighting.com • 813.978.3700 - 3 -...
- Page 4 INSTALLATION INSTRUCTIONS VOLT ® Tri-Hub Ultra-Slim Brass Up/Down Light VAL-2103-0-BBZ Adjust Fixture Direction ROTATE Fixture Knuckle Knuckle Fixture Allen Wrench ROTATE Using an Allen wrench, loosen the knuckles to rotate the fixtures as shown. Remove Glare Guard and Lens Loosen the set screw on the...
- Page 5 Bulb Installation Install MR11 Bulb Insert the MR11 bulb with correct wattage and type marked on MR11 Bulb fixture label and secure into place. Socket CAUTION: Do not exceed maximum wattage marked on luminaire label. Install Lens and Glare Guard Thread the lens back onto the fixture body and hand tighten Glare Guard...
-
Page 6: Wire Connection
INSTALLATION INSTRUCTIONS VOLT ® Tri-Hub Ultra-Slim Brass Up/Down Light VAL-2103-0-BBZ Wire Connection Terminal Block Backplate Main Supply Terminal Block Cable Pass the main supply cable through the center hole on the backplate. Strip the ends of the main supply cable. Insert one side of the wire into one terminal block, then insert the other side of the wire into the opposite terminal block. -
Page 7: Install Hub
Install Hub Make sure the wire exit is facing Mounting down on the hub, then attach Surface it onto the mounting surface and secure with the self-tapping screws. Self-tapping Screw Wire Exit Slot Cable Final Adjustment of Fixture Direction ROTATE Using an Allen wrench, loosen the knuckle and adjust the fixture Glare Guard... - Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
