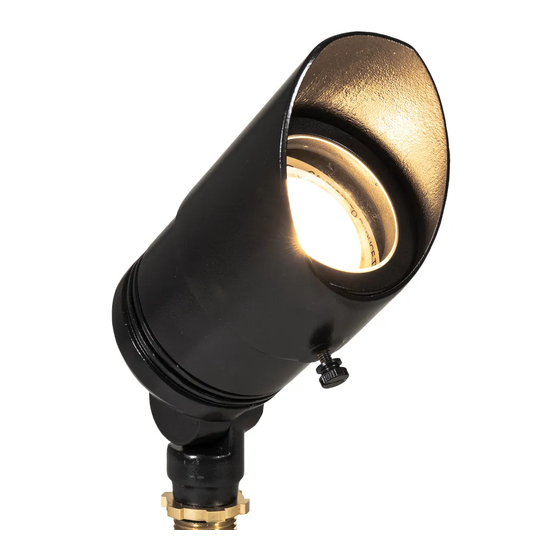

- Page 1 INSTALLATION INSTRUCTIONS VOLT Low Voltage Landscape Lighting ® All-Star™ Spotlights Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT All-Star™ Spotlights ® VAL-2000 series Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Parts Required A. (1) MR16 Lamp (Sold Separately) Product Dimensions 4.25” 2.6” 1.56” 2.65” Remove Glare Guard and Shield from Fixture Glare Guard Unlock lock screw and remove glare Shield guard from shield. Unscrew shield and remove it from fixture.
- Page 4 INSTALLATION INSTRUCTIONS VOLT All-Star™ Spotlights ® VAL-2000 series Install MR16 Lamp Socket Insert lamp with correct wattage and type as marked on fixture label. CAUTION: Do not exceed maximum MR16 Lamp wattage marked on luminaire label. (Sold Separately) NOTE: DO NOT touch lamp with bare hands.
- Page 5 Install Fixture to Stake Clear away area in ground at wireway Wireway Slot Fixture slot in top of stake. Lay luminaire pigtail into wireway slots and screw Pigtail fixture into stake. Tighten until snug. Stake Wire Connections Pigtail Wire Connectors Main Supply Cable Strip two leads from fixture pigtail.
- Page 6 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2015, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
