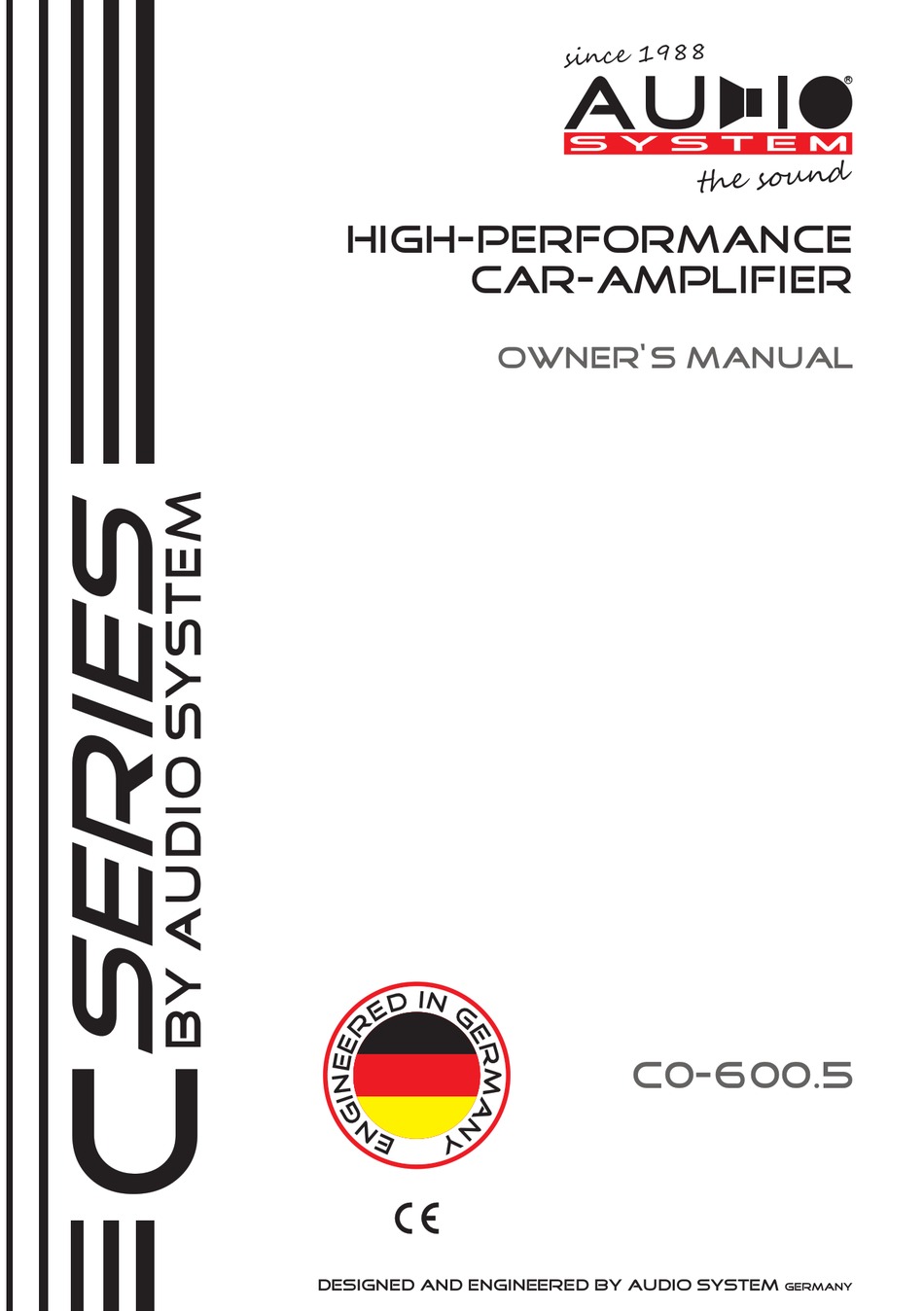

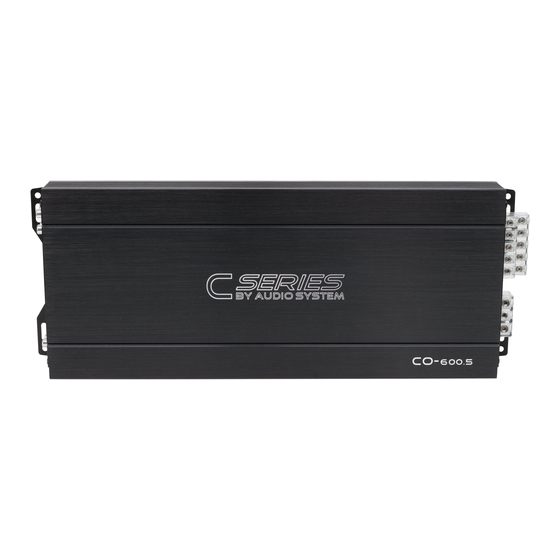

- Page 1 1 9 8 8 t h e s o u n d High-Performance Car-amplifier owner‘s manual C0-600.5 designed and engineered by audio system Germany...
- Page 2 Audio System Germany accepts no liability for hearing loss, bodily injury or property damage as a result of use or misuse of our products. We recommend installing the equipment by an authorized service center or dealer.
-
Page 3: Power Connection
power connection CO-600.5 1. Battery disconnection First disconnect the power supply of the vehicle. +12V FUSE This works out the best by removing the ground cable of the battery. 2. Ground connection Connect the GND (ground) connection of the amplifier with the car chassis. Keep this cable as short as possible (not longer than 50 cm) and use a suitable cross section (AWG sice 6 - 4). -
Page 4: Rca Connection
3 + 4 HEAD UNIT The c Series amplifier offers RCA-Inputs, which are connected through cinch cables with the preamplifier- outputs of the head unit. If the head unit (OEM-RADIO) has no RCA-Output, than it is possible to connect the speaker output direct to RCA/Cinch-Input of the amplifier. -
Page 5: Speaker Connection
speaker connection CO-600.5 5-Channel Stereo Mode channel 1 bis 4 + mono Channel 5 CH 1 CH 2 speaker impedance 2 ~ 8 Ohm SPEAKER SUBWOOFER speaker impedance CH 1 2 ~ 8 Ohm speaker impedance 2 ~ 8 Ohm CH 3 CH 4 5-Channel Mono Mode channel 1 bis 4 + mono Channel 5... -
Page 6: Troubleshooting
Trouble Shooting This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. -
Page 7: Specifications
200 mV ~ 8 V (+/- 5%) Dimensions 420(W) x 47(H) x 171(L) mm s i n c e 1 9 8 8 t h e s o u n d designed and engineered by audio system designed and engineered by audio system Germany Germany...
