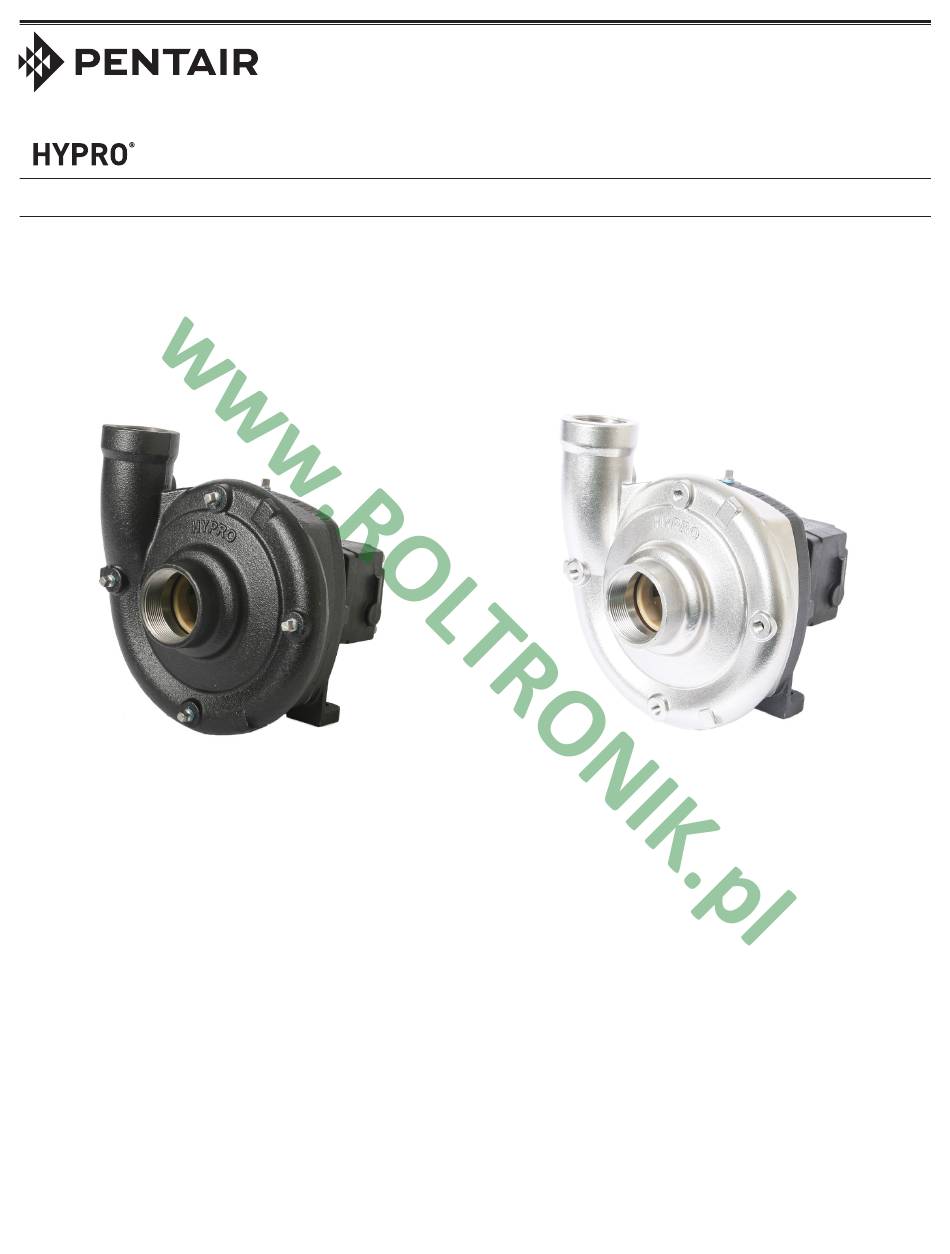

Hypro Series 9314
Hydraulically Driven Centrifugal Pumps
Form L-1589
Rev. A
Original Instruction Manual
KEEP FOR FUTURE REFERENCE
SERIES 9314C
SERIES 9314S
Hydraulically Driven Cast Iron

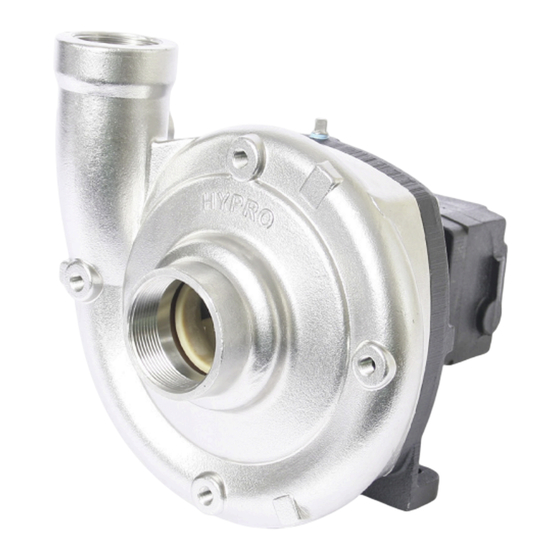

Hydraulically Driven Stainless Steel
Centrifugal Pumps with
Centrifugal Pumps with
ForceField™ Technology
ForceField™ Technology
1
L-1589 (Rev. A)
Advertisement
Table of Contents
Related Manuals for Pentair HYPRO 9314 Series
Summary of Contents for Pentair HYPRO 9314 Series
- Page 1 Hypro Series 9314 Hydraulically Driven Centrifugal Pumps Form L-1589 Rev. A Original Instruction Manual KEEP FOR FUTURE REFERENCE SERIES 9314C SERIES 9314S Hydraulically Driven Cast Iron Hydraulically Driven Stainless Steel Centrifugal Pumps with Centrifugal Pumps with ForceField™ Technology ForceField™ Technology L-1589 (Rev.
-
Page 2: Table Of Contents
Contents EU Language Manuals ................................3 Introduction ....................................4 Description ................................... 4 Intended Uses..................................4 Purpose of Manual ................................4 Misuses ....................................5 Pump I dentification ................................ 5 Pump Technical Data ................................6 Dimensional S pecification .............................. 6 Pump S pecifications . -
Page 3: Eu Language Manuals
EU Languages DO NOT attempt to install or operate your pump before reading the manual. Original copies of the manual for Hypro pumps are provided in English. To find a copy in your native language, go to www.hypropumps.com. Vor dem Ablesen des Handbuches versuchen Sie NICHT, Ihre Pumpe zu installieren. Originale des Handbuches fur Hypro-Pumpen werden auf englisch zur Verfugung gestellt. Zu eine Kopie in Ihrer Muttersprache finden, zu www.hypropumps.com zu gehen (German) N’essayez pas d’installer votre pompe avant de lire le manuel. -
Page 4: Introduction
Introduction Description Pentair’s Line of Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water,insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9314 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. -
Page 5: Misuses
Misuses Pentair’s line of Hypro centrifugal pumps are designed to operate effectively within the speed, pressure, and environmental ranges specified in this manual. Operating a pump outside of these ranges will void the warranty and could cause damage to property, serious personal injury, or death. You must observe the following safety guidelines: • DO NOT run the pump faster than the maximum recommended speed • DO NOT run the pump or hydraulic motor higher than the maximum recommended pressure •... -
Page 6: Pump Technical Data
Pump Technical Data 9314C(S)-M08, -M08Y, M10, -M10Y, and -M16 Pump Dimensions Motor Dim. Inch 9.74 9.55 (all) 5.24 3.81 3.93 M08, M08Y 11.53 2X Ø K 9314C- M10, M10Y 11.65 9314S- 12.03 5.26 5.25 133.4 2.63 66.7 (all) 1.60 øK 0.44 11.1 5.22 9314CU(SU)-M08, -M08Y, M10, and -M16 Pump Dimensions... -
Page 7: Pump Specifications
Pump Specifications Hydraulic Hydraulic Flow Hyd. Motor Motor Rate Pressure Flow Inlet Max Outlet Max (GPM) (PSI) (GPM) Pump Hydraulic Mounting Pump PSI [BAR] PSI [BAR] [LPM] [BAR] [LPM] Ports Ports Weight Bolts 9314C-M08 227 [859] 132 [9.1] 14 [53] 9314S-M08 SAE -8 Inlet 9314C-M10 233 [882] 17 [64.4]... -
Page 8: Performance Charts
Performance Charts All specifications and performance data are based on water as a carrier fluid. Note: The dashed portion of the pump curves is outside the recommended operating range, and can only be achieved with sufficient NPSHa. Refer to Installation Instructions. L-1589 (Rev. A) -
Page 9: Fluid Pumping Applications
Flammable liquids, sewage, potable water, Anhydrous ammonia, and chemicals incompatible with the pump materials should never be used with Hypro 9314 Series centrifugal pumps. Tools Hypro 9314 Series centrifugal pumps and mounting assemblies are designed with metric fasteners. Lifting, Transport, and Intermediate Storage Packaging Descriptions and Unpacking Instructions •... -
Page 10: Assembly And Installation
• Pumping systems must be installed in accordance with Pentair installation instructions. Failure to do so will void your warranty and could cause damage to property, serious personal injury, or death. •... -
Page 11: Standard Mounting
• The working pressure in the hydraulics system must be controlled by a pressure relief valve that is adjusted to operate at 10% of the maximum system pressure. • When installing, adjusting or removing a Hypro centrifugal pump, ensure that there are no objects which can fall on the installer and make certain that all machinery to which the pump is to be attached is turned off. • Pumps must be installed in a location where they are accessible for any necessary maintenance. • When hydraulic power is used, the system should contain a quick disconnect coupling that can be disconnected to isolate the pump. Standard Mounting • In order to prevent injury or damage to property, all Hypro pumps should be properly mounted to a solid base where there is no danger of the pump falling or breaking loose. All Hypro pumps come with mounting holes which allow bolts to be put into the pump so it can be secured to a sturdy base. When mounting your Hypro centrifugal pump, be sure to use bolts and nuts which are compatible with any chemicals that may come into contact with them as well as choosing the correct grade of bolt based on the pump weight and any expected loads. -
Page 12: Hydraulic Installation
Ref. Description Tank Lid Vent Line Jet Agitator Shut-off Ball Valves Centrifugal Pump Spray Control Console Centrifugal Pump Control Manifold Boom Valve Flowmeter Jet Turret Nozzle Body Hydraulic Installation • Prior to installation, refer to the tractor or sprayer manual and determine what type of hydraulic system is being used. The three types of systems include: •... -
Page 13: Control Systems
• Hydraulic back pressure in the return line must be less than 100 psi [6.9 bar] to prevent reduced seal life. Pressures under 50 psi [3.4 bar] are recommended. • The motor case drain, available on “Y” series pumps, is recommended to minimize the pressure acting on the hydraulic motor oil seal, and extend the life of the oil seal. The case drain line must be connected directly to the hydraulic reservoir with no restrictions, and the case drain port on the motor must always be oriented upward. THE CASE DRAIN PORT ON HYDRAULIC MOTORS MUST NEVER BE PLUGGED. -
Page 14: Commissioning, Start-Up, Operation, Shutdown
Commissioning, Start-Up, Operation, Shutdown Before attempting to start your pump, the following must be understood and followed to ensure safe operation. Information • When running Hypro centrifugal pumps, it is essential that operators use hearing protection as the sound levels can reach levels of 80 decibels. • When handling Hypro pumps, one should wear steel-toed shoes and protective gloves in order to protect the feet in the event the pump is dropped and protect the hands from any sharp surfaces on the pump or chemicals. - Page 15 Starting, Operation and Shutdown of the Pump (Hydraulic) Open Center Systems - All Models Adjusting Centrifugal Pump Output ATTENTION M08, M10, and M16 motors have bypass screw fully closed from the factory. M04 and M05 motors have bypass screw set at 1-1/2 turns from fully closed from the factory. 1.
-
Page 16: Maintenance And Servicing
Maintenance and Servicing Information • All maintenance should be done when machinery is stationary and has been isolated from its energy sources. It is dangerous to perform maintenance while machinery is still connected to its power source. Machinery should be isolated from its electrical, hydraulic or gas engine power source. -
Page 17: Troubleshooting
Troubleshooting If the proper Hydraulic Pump Unit has been selected according to Pentair recommendations, and the unit has been correctly plumbed into the hydraulic system, operation should be quite satisfactory. If spraying performance is unsatisfactory or hydraulic system heat is excessive, check the following troubleshooting guide for possible problems and solutions. Troubleshooting Guide Symptom Probable Cause(s) -
Page 18: Model 9314 Part Illustrations And Repair Kits
Model 9314 Part Illustrations and Repair Kits Includes Models 9314C(S) -M08, -M08Y, M10, -M10Y, and -M16 9314CU(SU) -M08, -M08Y, M10, -M10Y, and -M16 L-1589 (Rev. A) - Page 19 Pump Repair Kit No. 3430-0948 NOTE: When ordering parts, give quanti- Contains: O-rings (Ref. 5 & 8), mechanical seal ty, part number, description and complete (Ref. 10), Membrane (Ref. 9), Pump Chamber model number. Reference numbers are Fluid, and seal installation tool used ONLY to identify parts in the drawing Pump Repair Kit No.
- Page 20 EC Declaration of Incorporation Manufacturer’s Name: Pentair Flow Technologies, LLC Manufacturer’s Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Parts 1 of Annex I of Machinery Directive 2006/42/EC. This partly completed machinery must not be put into service until the equipment into which it is to be incorporated has been declared in conformity with the provisions of this directive.
- Page 21 Notes L-1589 (Rev. A)
-
Page 22: Limited Warranty On Hypro Agricultural Pumps & Accessories
Contact Hypro Service Department at 800-468-3428 to receive a Return Merchandise Authorization number (RMA#). Returns are to be shipped with the RMA number clearly marked on the outside of the package. Hypro shall not be liable for freight damage incurred during shipping. Please package all returns carefully. All products returned for warranty work should be sent shipping charges prepaid to: HYPRO / PENTAIR Attention: Service Department 375 Fifth Avenue NW New Brighton, MN 55112 For technical or application assistance, call the Hypro Technical/Application number: 800-445-8360, or send an email to: technical@ hypropumps.com. To obtain service or warranty assistance, call the Hypro Service and Warranty number: 800-468-3428; or send a fax to the Hypro Service and Warranty FAX: 651-766-6618.
