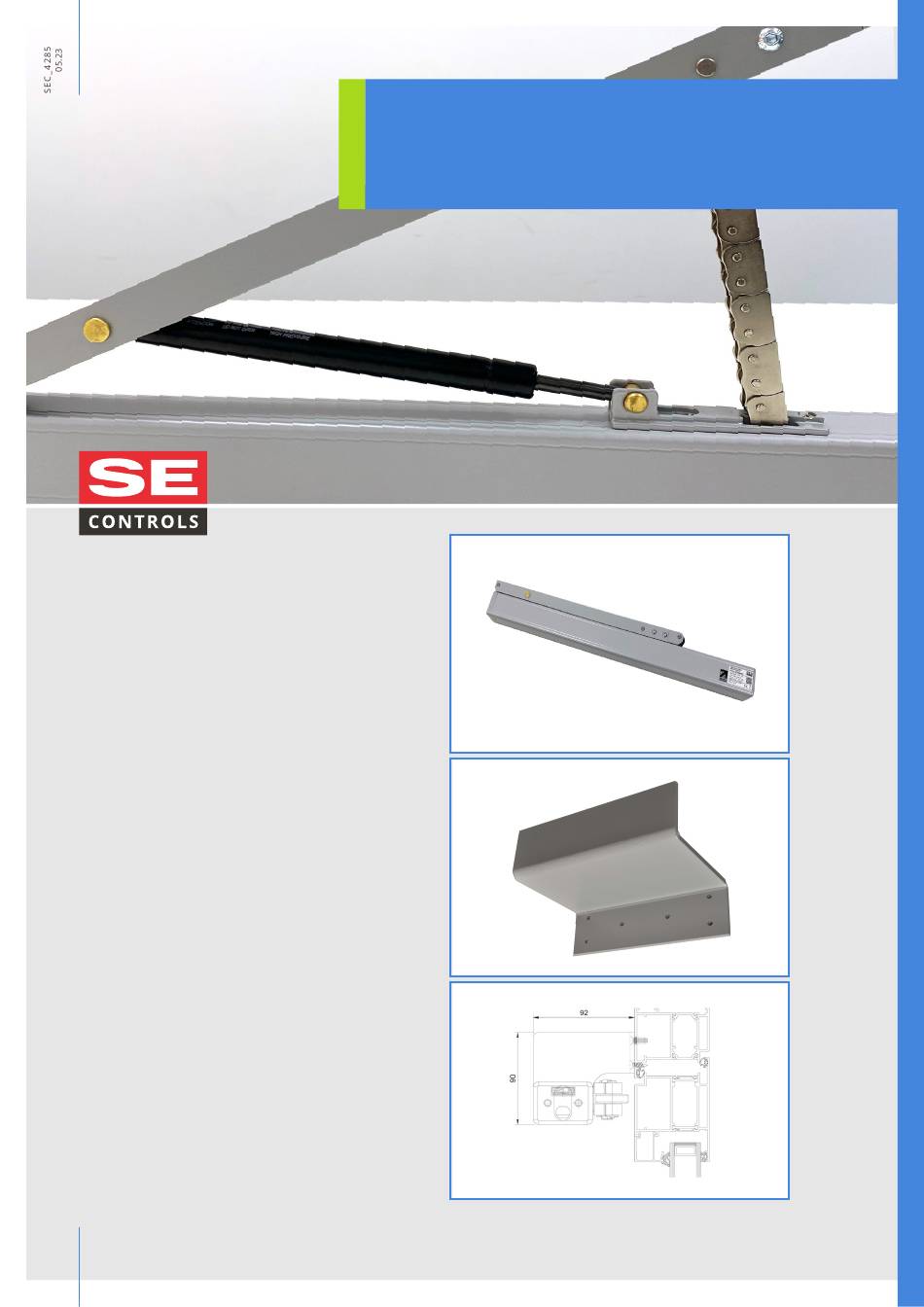

SECO Ni Folding Arm
Roller Version
•
24V dc Roller Folding Arm
•
Smoke & Environmental Ventilation
applications
•
Configurable:
•
Speed
•
Stroke
•
Seal Relief
•
Volt Free Contact
•
Range of Fixing Systems.
•
Options for customisation to meet
application requirements.
•
CE Marked
Bracket Part Number

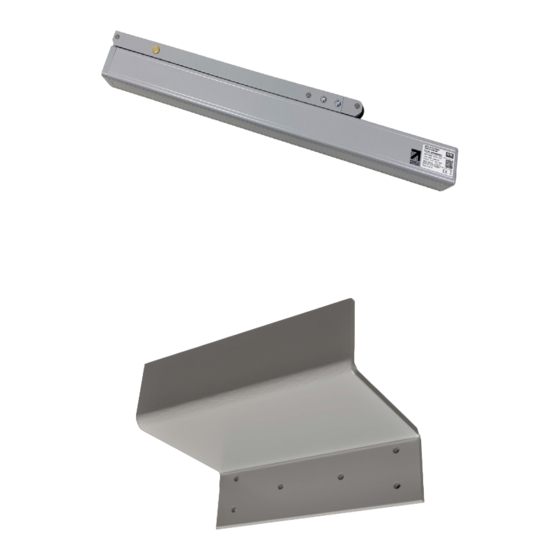

AKS20000001 -Roller Bracket Set
AXS15282001 - Series 40 FAA
Bracket 125mm Z Roller Version.
+44 (0)1543 443060
sales@secontrols.com
www.secontrols.com
SECO Ni Folding Arm Actuator
Roller Version - Technical information and operating
instructions
Please keep these operating instructions for future reference and maintenance.
Subject to technical modifications. Diagram is not binding.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SE Controls SECO Ni AKS20000001
Summary of Contents for SE Controls SECO Ni AKS20000001
- Page 1 SECO Ni Folding Arm Actuator Roller Version - Technical information and operating instructions SECO Ni Folding Arm Roller Version • 24V dc Roller Folding Arm • Smoke & Environmental Ventilation applications • Configurable: • Speed • Stroke • Seal Relief •...
-
Page 2: Colour Option
Technical Data Actuator Designation SECO Ni Folding Arm Actuator Actuator Type 24V dc Folding Arm Actuator Voltage (all +/-5%) 24V dc Current Draw (Amp) 1.0A Stroke/Opening Angle 0-600mm / 0-90° programmable Operating Speed 15mm/sec Ambient Operating Temp -5°C to +60°C Thrust Force 400N Close Force... - Page 3 1.1 General Safety Information 1.2 Health and Safety SE Controls reserves the right to introduce any Electrical Safety; Warning 230 V ac Dangerous modifications and improvements to the contents of this voltage. Can cause death, serious injury or considerable material damage. Disconnect the publication without the obligation of giving prior notice.
- Page 4 Care must be taken to ensure that actuator products are controlled with compatible After installation and any changes to the system check all products; refer to SE Controls. No liability will functions by a trial run. be accepted and no guarantee nor service is granted if actuator controls are used without such compatibility being confirmed.
- Page 5 The gear system is greased for life and is maintenance free. Defective equipment must only be repaired by SE Controls. Only original spare parts are to be used. After maintenance, repair or any changes to the system check all functions by a trial run.
- Page 6 Installation Guide - Door Applications 1.Ensure the door closes 2.Install brackets to the 3. Offer the actuator up fully and also opens to the Folding Arm Actuator to the door to ensure the required opening brackets have a fixing position in to the frame with the door fully closed 4.Fully power the actuator 5.Mark the position of the...
-
Page 7: Technical Drawing
Technical Drawing For 4 core (volt free contact) wiring please contact SE Controls. Wiring Please keep these operating instructions for future reference and maintenance. Subject to technical modification. +44 (0)1543 443060 sales@secontrols.com www.secontrols.com... - Page 8 Lancaster House Wellington Crescent sales@secontrols.com Fradley Park, Lichfield www.secontrols.com Staffordshire WS13 8RZ Name & registered office: Loanguard Limited, Lancaster House, Wellington Crescent, Fradley Park, Lichfield, Staffordshire WS13 8RZ Company No.01468061 Vat No.377 5600 30 - SE Controls is a Registered Trademark...
