SECO Ni 40
Technical Information and operating instructions
Application

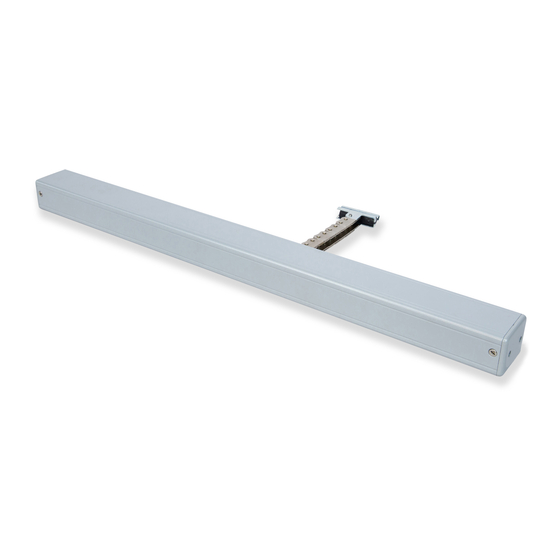

SECO Ni 40 Actuator
•
230V ac Chain Motor
•
Environmental ventilation applications
•
Range of Strokes
•
Range of Fixing Systems
•
Options for customisation to meet
application requirements
•
CE Marked
•
Please keep these operating instruction for future
reference and maintenance Subject to technical
modifications. diagram is not binding

Advertisement

loading
Need help?

Need help?

Do you have a question about the Seco Ni 40 and is the answer not in the manual?

Questions and answers

Related Manuals for SE Controls Seco Ni 40

Summary of Contents for SE Controls Seco Ni 40

  • Page 1 SECO Ni 40 Technical Information and operating instructions Application SECO Ni 40 Actuator • 230V ac Chain Motor • Environmental ventilation applications • Range of Strokes • Range of Fixing Systems • Options for customisation to meet application requirements •...
  • Page 2 Specification ACTUATOR SECO Ni 40 ACTUATOR TYPE 230V ac CHAIN OPENER VOLTAGE (all +/-5%) 230V ac AMP DRAW <0.05A CURRENT (no load) AMP DRAW <0.25A CURRENT (with load) STROKE 250, 400, 600mm OPERATING SPEED 10-15mm/sec. AMBIENT -5°C +60°C OPERATING TEMP.
  • Page 3 1.1 General Safety Information installation location and during fitting. Actuator products must SE Controls reserves the right to introduce any modifications and not be dropped, impacted, allowed to get wet or abused in any improvements to the contents of this publication without the other way.
  • Page 4 Do not use the actuator until it has been repaired. Routing of cables and electrical connections only to be done by a qualified electrician. A suitable service contract with SE Controls is recommended for this purpose. Power supply leads 230 V AC to be fused separately by the customer.

  • Page 5: Installation

    Installation A: Top hung / slope windows outward B: Bottom hung / slope windows C: Bottom hung / slope windows opening outward opening outward opening 3. Sill fixing option 4. Face fixing option Please keep these operating instruction for future reference and maintenance Subject to technical modifications.
  • Page 6 Installation Guide A: Top hung / slope window installation i. Fix the trunnion set(2) in the mid position on the moving part of the window. ii. Close the window, then fix the chain actuator body(1) with the pivot bracket set(3) provided. It should be aligned with the trunnion set(2) on the moving part of the window.
  • Page 7 Installation C: Bottom hung / slope window installation i. Fix the trunnion set(2) in the mid position on the moving part of the window using the holding bracket (4) provided. ii. Close the window, then fix the chain actuator body(1) with the pivot bracket set(3) provided. It should be aligned with the trunnion set(2) on the moving part of the window.
  • Page 8 Lichfield Staffs WS13 8RZ Tel: 01543 443060 Fax: 01543 443070 Website: www.secontrols.com Email: sales@secontrols.com SE Controls is a Registered Trademark Please keep these operating instruction for future reference and maintenance Subject to technical modifications. diagram is not binding Page 8...
