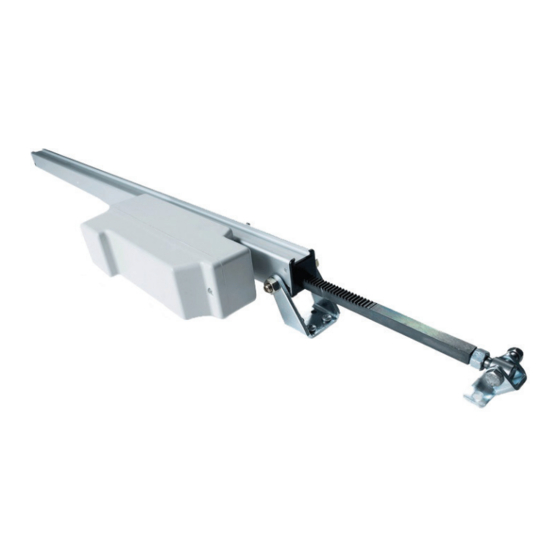

SELA U 24 75
Technical information and operating instructions
Please keep these operating instructions for future reference and maintenance.
Subject to technical modifi cations. Diagram is not binding.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SE Controls SELA U 24 75
Summary of Contents for SE Controls SELA U 24 75
- Page 1 SELA U 24 75 Technical information and operating instructions Application • 24V DC Chain Motor. • Environmental and Smoke Ventilation applications • Range of Fixing Systems. • Marked • Tested to principles of EN1210-2: 2003 Annex G +44 (0)1543 443060 Please keep these operating instructions for future reference and maintenance.
-
Page 2: Specification
Specifi cation Actuator SELA U 24 75 Actuator Type 24V dc Rack & Pinion Linear Actuator Voltage (all +/-5%) 24V dc Amp Draw Current (with load) Stroke 180/350/550/750/1000mm Operating Speed 8mm/s Ambient Operating Temp -10°C +40°C Thrust Force 750N Close Force... - Page 3 1.1 General Safety Information 1.2 Health and Safety SE Controls reserves the right to introduce any Electrical Safety; Warning 230 V AC Dangerous modifi cations and improvements to the contents of this voltage. Can cause death, serious injury or considerable material damage. Disconnect the publication without the obligation of giving prior notice.
- Page 4 Care must be taken to ensure that actuator products are controlled with compatible After installation and any changes to the system check all products; refer to SE Controls. No liability will functions by a trial run. be accepted and no guarantee nor service is granted if actuator controls are used without such compatibility being confi...
- Page 5 The gear system is greased for life and is maintenance free. Defective equipment must only be repaired by SE Controls. Only original spare parts are to be used. After maintenance, repair or any changes to the system check all functions by a trial run.
- Page 6 Check straight alignment between pivot bracket and eyebolt to ensure correct operation. Close stroke position is adjusted by use of the threaded 6mm eyebolt if required. *For master and slave setup please contact SE Controls for guidance. Please keep these operating instructions for future reference and maintenance.
- Page 7 Lancaster House Wellington Crescent sales@secontrols.com Fradley Park, Lichfield www.secontrols.com Staffordshire WS13 8RZ Name & registered office: Loanguard Limited, Lancaster House, Wellington Crescent, Fradley Park, Lichfield, Staffordshire WS13 8RZ Company No.01468061 Vat No.377 5600 30 - SE Controls is a Registered Trademark...
