SECO Ni Folding Arm
Roller Version
•
24V dc Roller Folding Arm
•
Smoke & Environmental Ventilation
applications
•
Confi gurable:
•
Speed
•
Stroke
•
Seal Relief
•
Volt Free Contact
•
Range of Fixing Systems.
•
Options for customisation to meet
application requirements.
•
CE Marked
Bracket Part Number
AKS20000001
+44 (0)1543 443060
sales@secontrols.com
www.secontrols.com

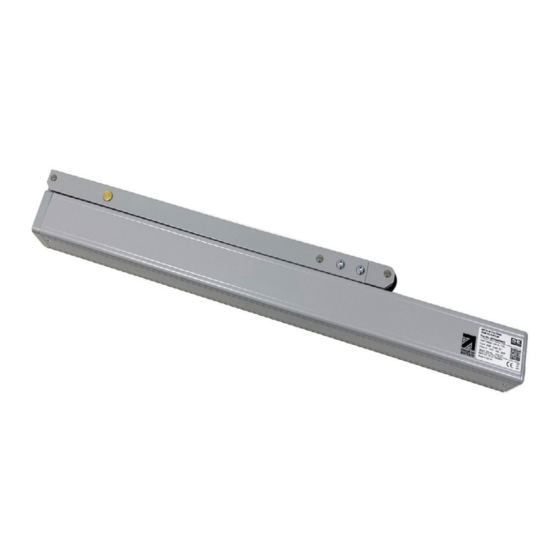

SECO Ni Folding Arm Actuator
Roller Version - Technical information and operating
instructions
Please keep these operating instructions for future reference and maintenance.
Subject to technical modifi cations. Diagram is not binding.
Advertisement
Related Manuals for SE Controls SECO Ni
Summary of Contents for SE Controls SECO Ni
- Page 1 SECO Ni Folding Arm Actuator Roller Version - Technical information and operating instructions SECO Ni Folding Arm Roller Version • 24V dc Roller Folding Arm • Smoke & Environmental Ventilation applications • Confi gurable: • Speed • Stroke • Seal Relief •...
-
Page 2: Specification
Specifi cation Actuator SECO Ni Folding Arm Actuator Actuator Type 24V dc Folding Arm Actuator Amp Draw Current (with load) 1.0A Stroke 90° Operating Speed 15mm/sec Ambient Operating Temp -5°C +60°C Thrust Force 400N Close Force 400N Soft Close Switching... - Page 3 1.1 General Safety Information 1.2 Health and Safety SE Controls reserves the right to introduce any Electrical Safety; Warning 230 V AC Dangerous modifi cations and improvements to the contents of this voltage. Can cause death, serious injury or considerable material damage. Disconnect the publication without the obligation of giving prior notice.
- Page 4 Care must be taken to ensure that actuator products are controlled with compatible After installation and any changes to the system check all products; refer to SE Controls. No liability will functions by a trial run. be accepted and no guarantee nor service is granted if actuator controls are used without such compatibility being confi...
- Page 5 The gear system is greased for life and is maintenance free. Defective equipment must only be repaired by SE Controls. Only original spare parts are to be used. After maintenance, repair or any changes to the system check all functions by a trial run.
- Page 6 Installation Guide - Door Applications 1. Ensure door is free and clear of 2. Install the Supplied pivot 3. Off er actuator up to door with the all obstructions and debris. bracket set to the actuator. door and actuator fully closed. Take measurement of the fi...
-
Page 7: Technical Drawing
Lancaster House Wellington Crescent sales@secontrols.com Fradley Park, Lichfield www.secontrols.com Staffordshire WS13 8RZ Name & registered office: Loanguard Limited, Lancaster House, Wellington Crescent, Fradley Park, Lichfield, Staffordshire WS13 8RZ Company No.01468061 Vat No.377 5600 30 - SE Controls is a Registered Trademark...
